PDM Messages Not Received

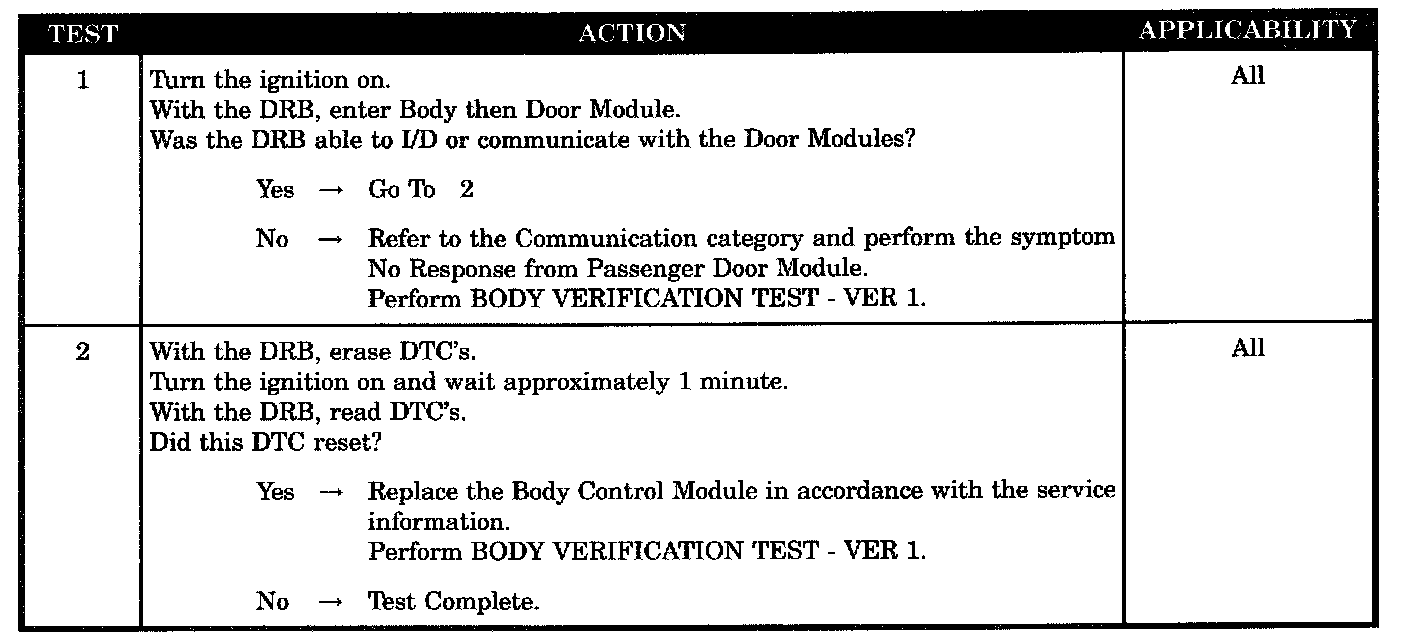

Test 1 - 2:

SYMPTOM
PDM MESSAGE NOT RECEIVED

WHEN MONITORED
With the ignition in run, and the IOD fuse installed.

SET CONDITION
The BCM does not receive any messages from the Passenger Door Module (PDM) for at least 30 seconds.

POSSIBLE CAUSES
- Attempt to communicate with the door modules
- Body control module
