No Response From Vehicle Information Center

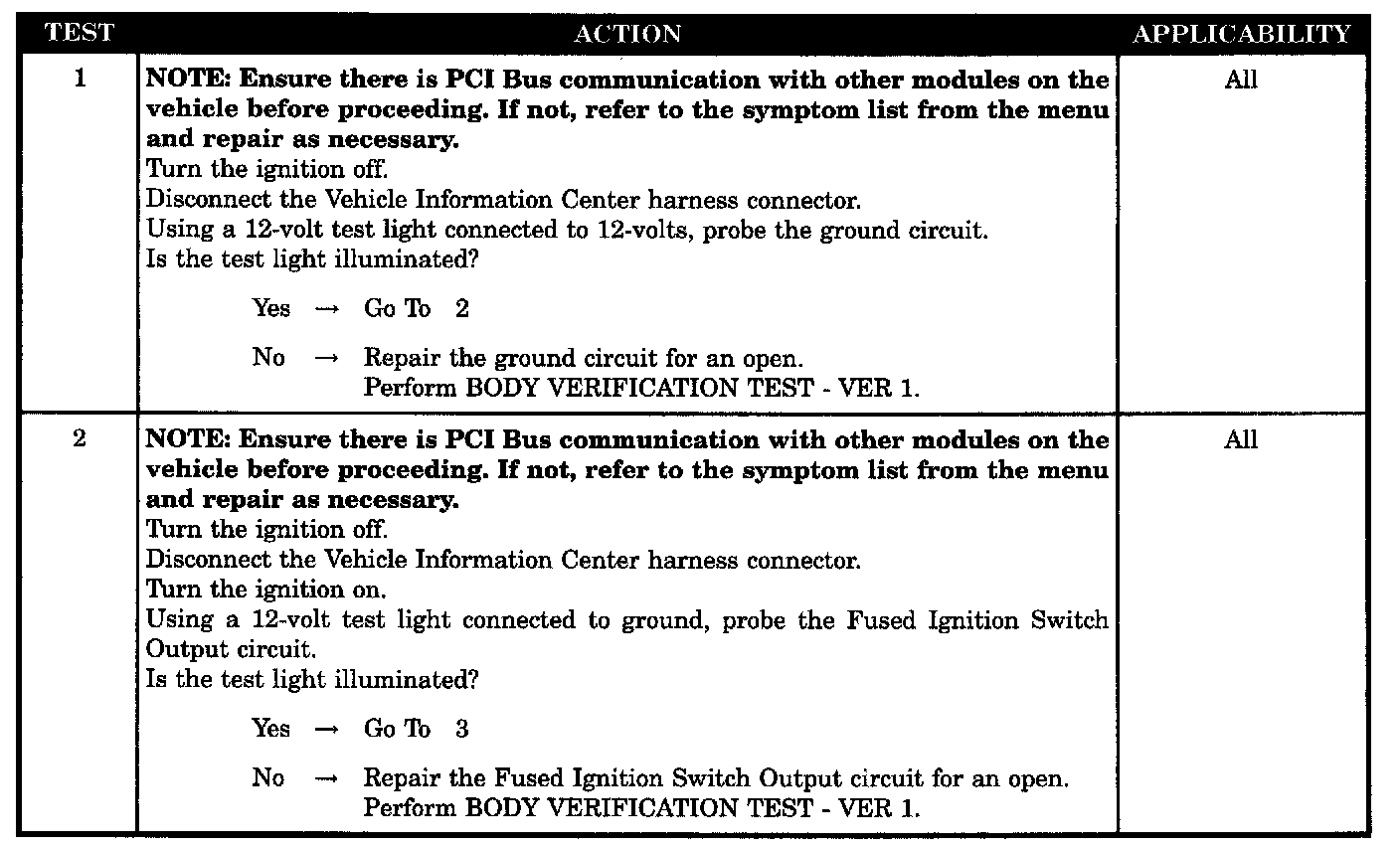

Test 1 - 2:

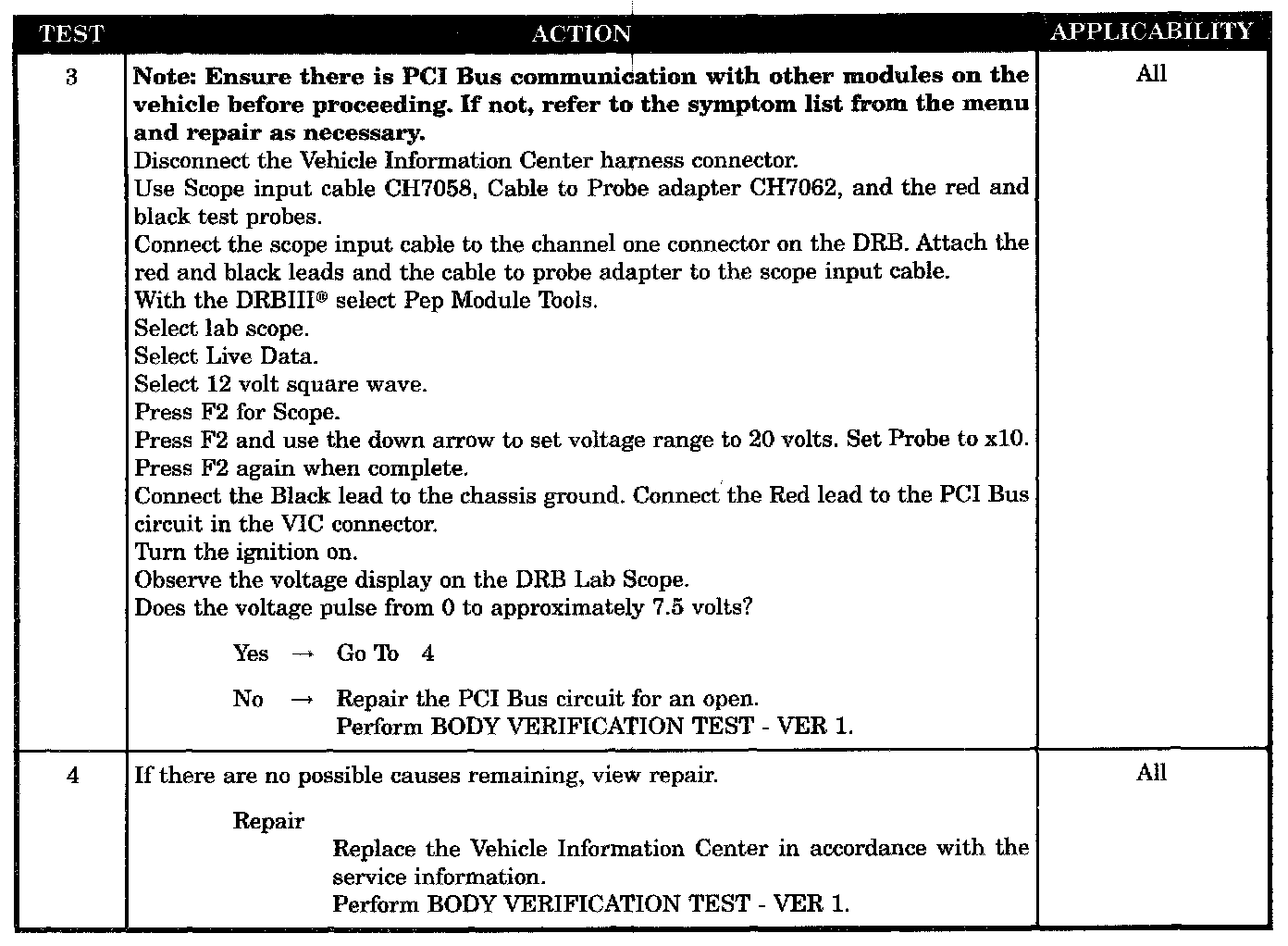

Test 3 - 4:

SYMPTOM
NO RESPONSE FROM VEHICLE INFORMATION CENTER

POSSIBLE CAUSES
- Ground circuit open
- Fused ignition switch output circuit open
- Open PCI bus circuit
- Vehicle information center (VIC)
