No Response From Rain Sensor

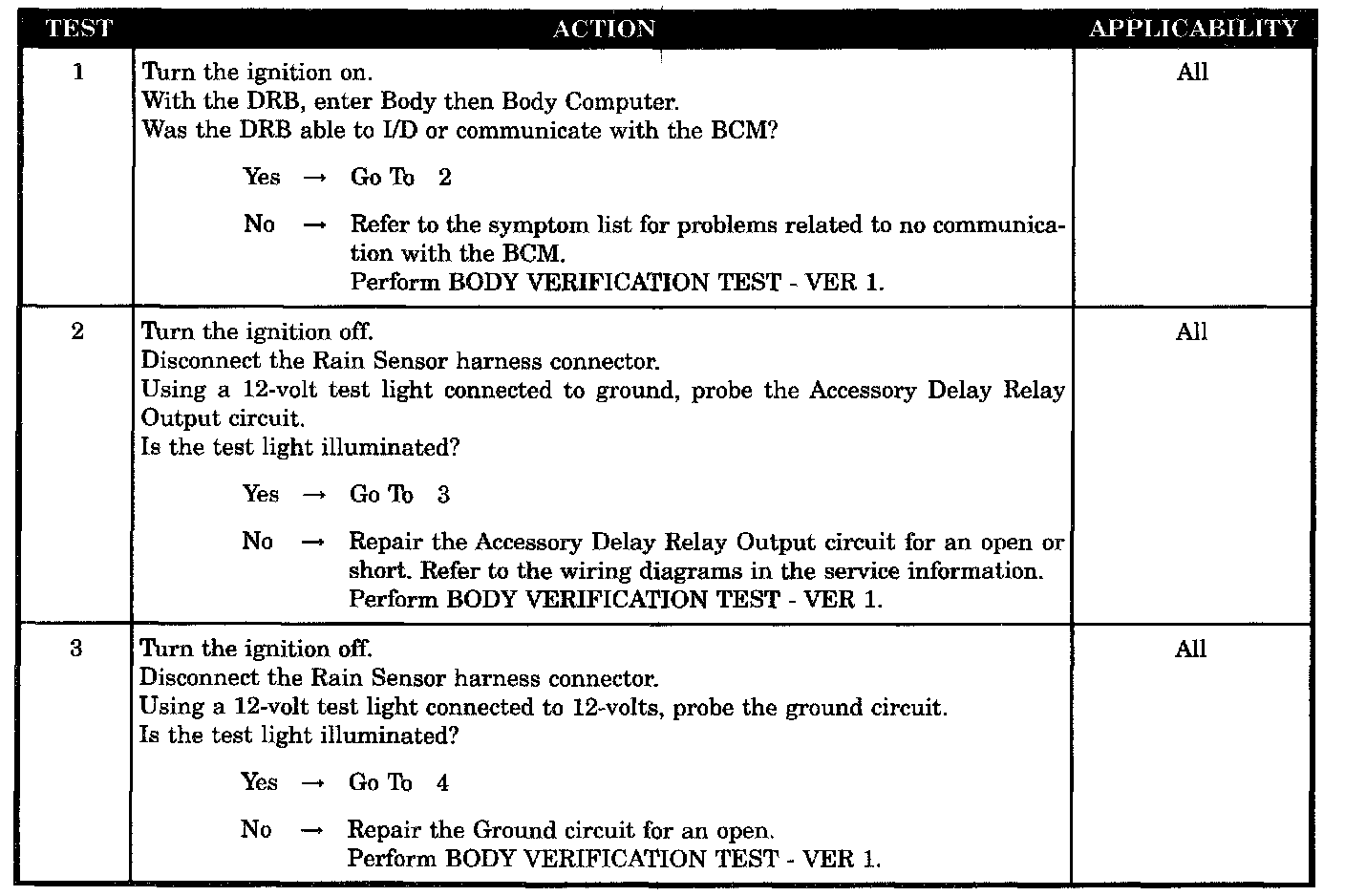

Test 1 - 3:

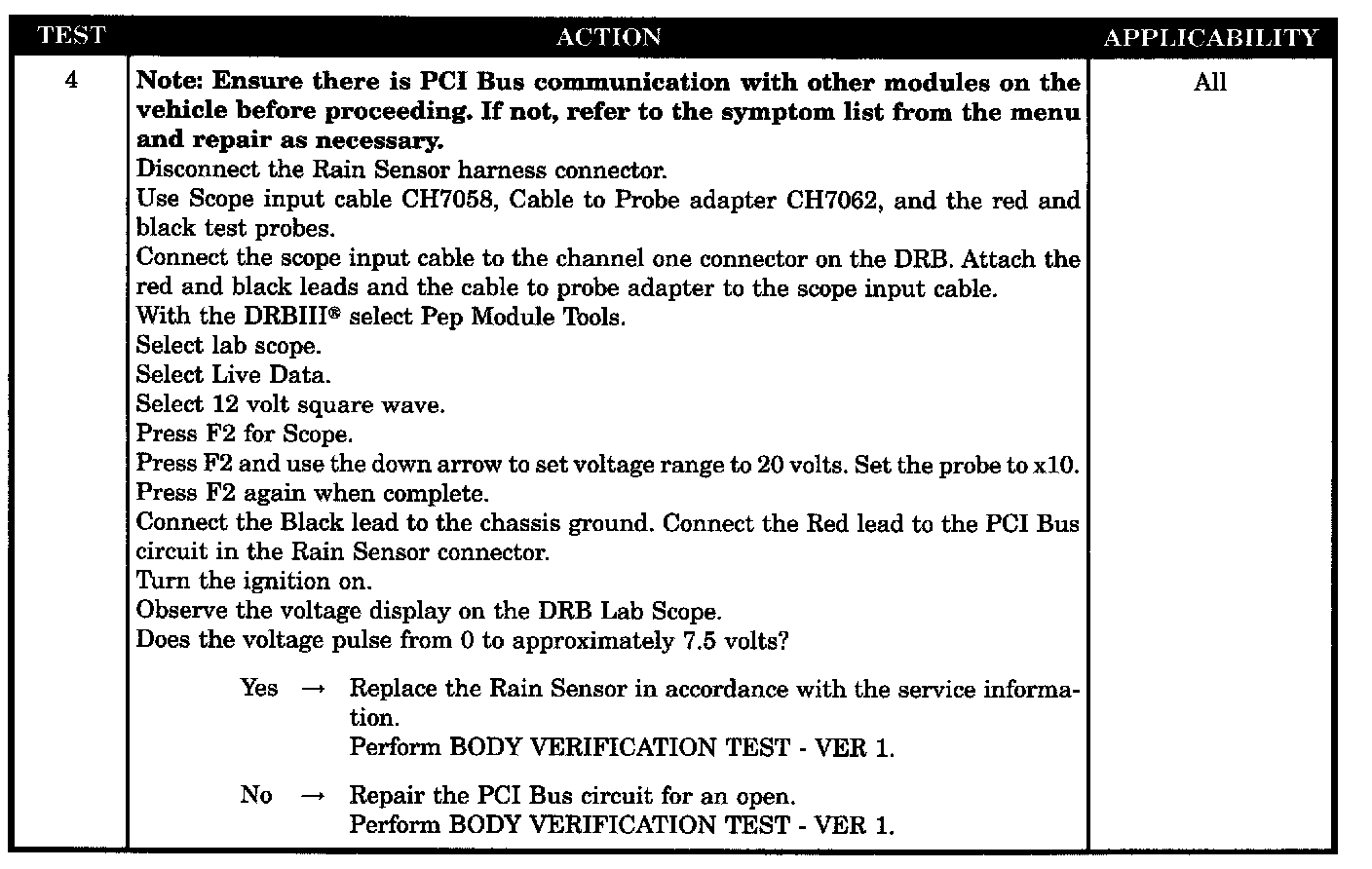

Test 4:

SYMPTOM
NO RESPONSE FROM RAIN SENSOR

POSSIBLE CAUSES
- Attempt to communicate with the BCM
- Accessory delay relay output circuit open
- Ground CKT open
- Open PCI bus circuit
- Rain sensor
