No Response From Radio

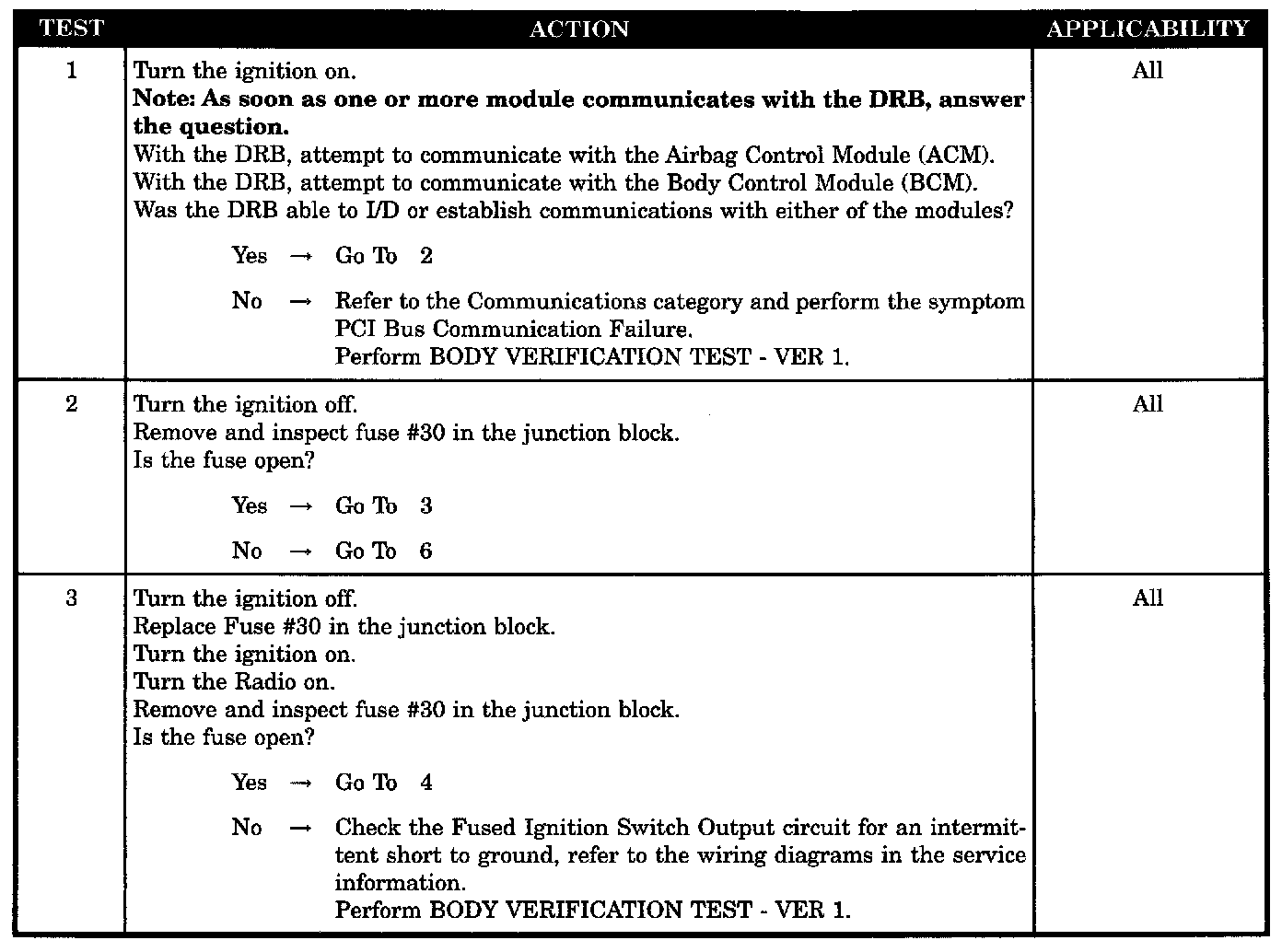

Test 1 - 3:

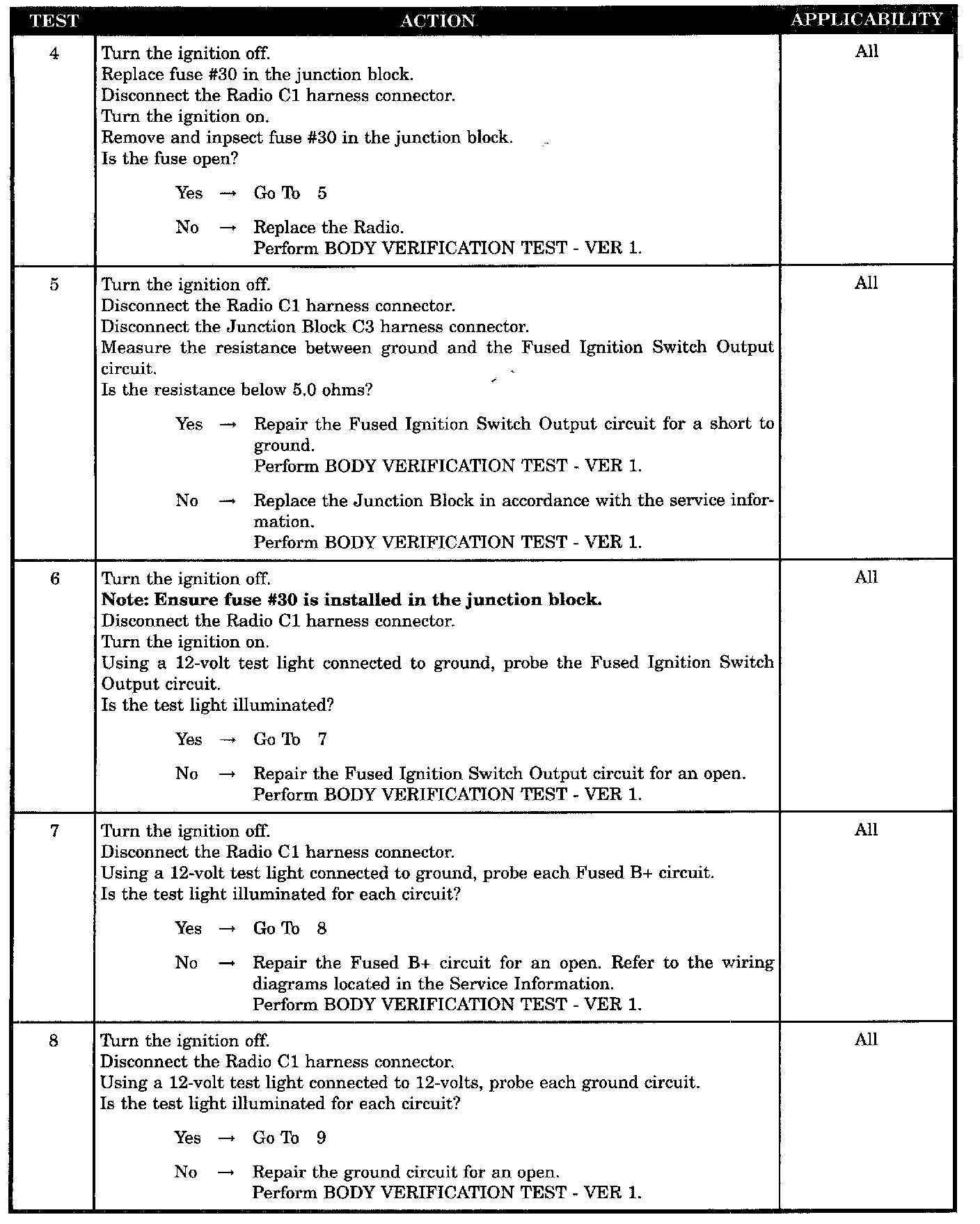

Test 4 - 8:

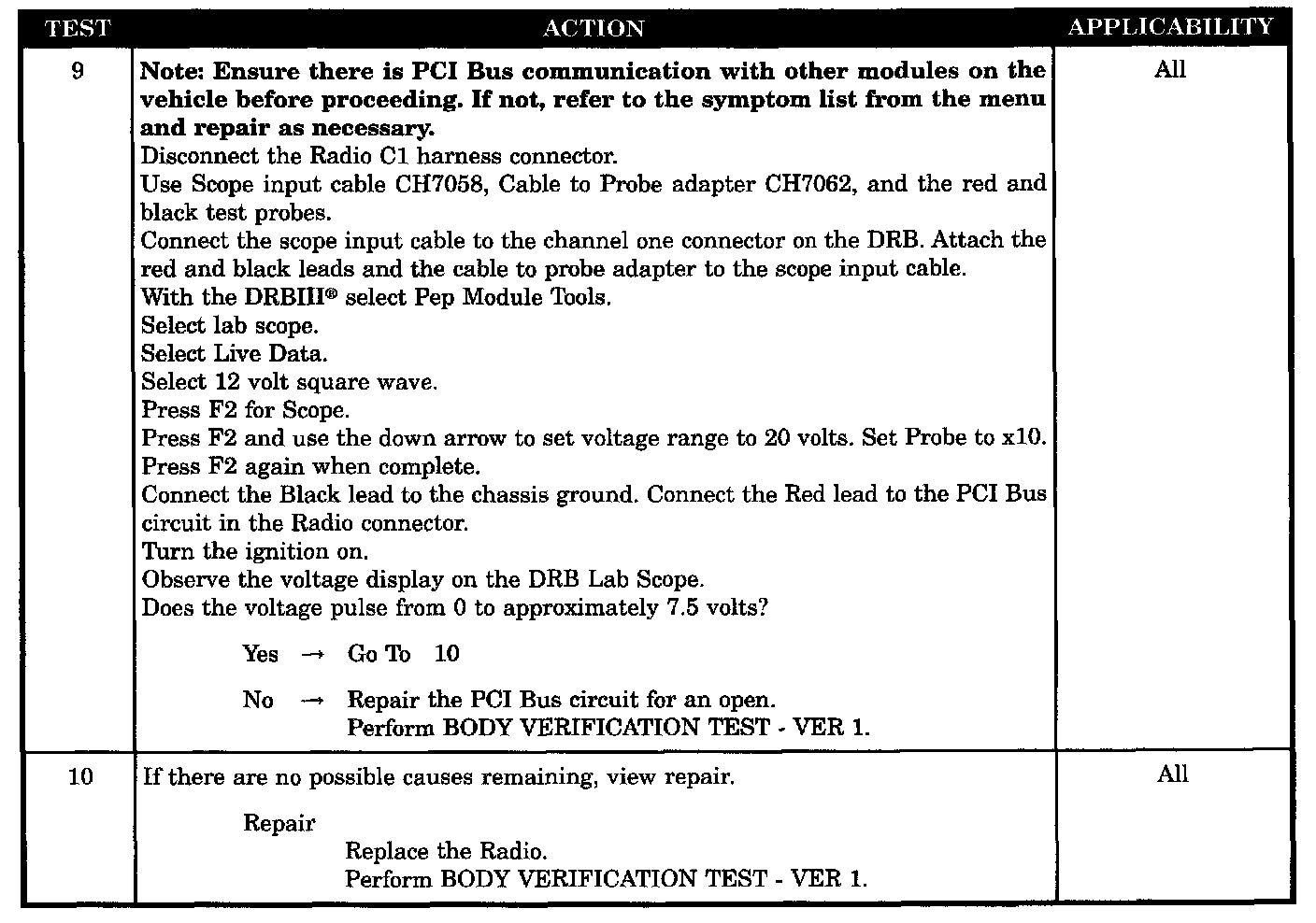

Test 9 - 10:

SYMPTOM
NO RESPONSE FROM RADIO

POSSIBLE CAUSES
- No response from radio
- Replace fuse # 30
- Radio shorted to ground
- Fused ignition switch output circuit shorted to ground
- Junction block shorted to ground
- Open fused ignition switch output circuit
- Open fused B+ circuit
- Radio ground circuit open
- Open PCI bus circuit
- Radio
