No Response From PCM (PCI Bus)

Test 1:

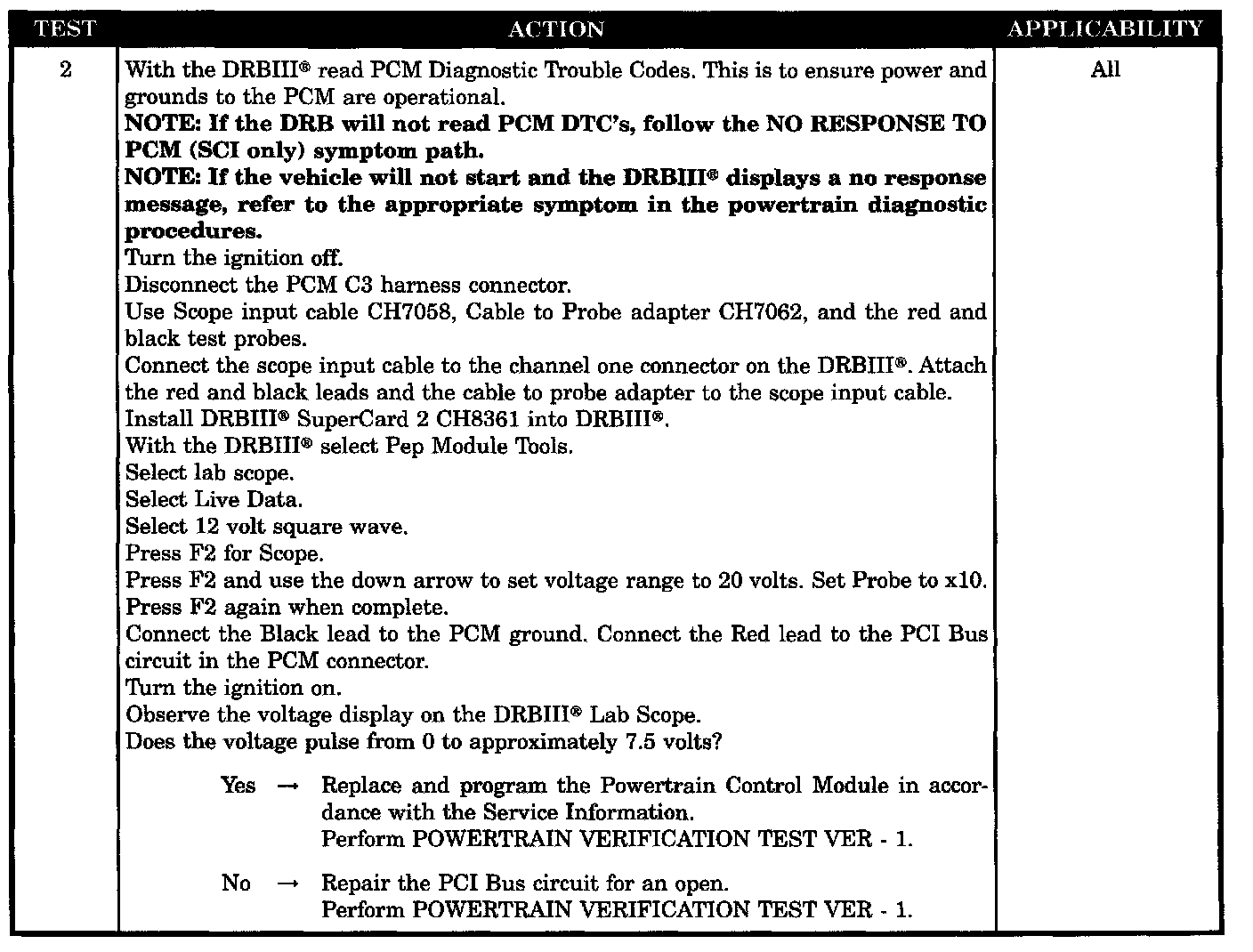

Test 2:






SYMPTOM
NO RESPONSE FROM PCM (PCI BUS) - GAS ONLY

POSSIBLE CAUSES
- PCM PCI no response
- PCI bus circuit open
- Powertrain control module
