No Response From Instrument Cluster

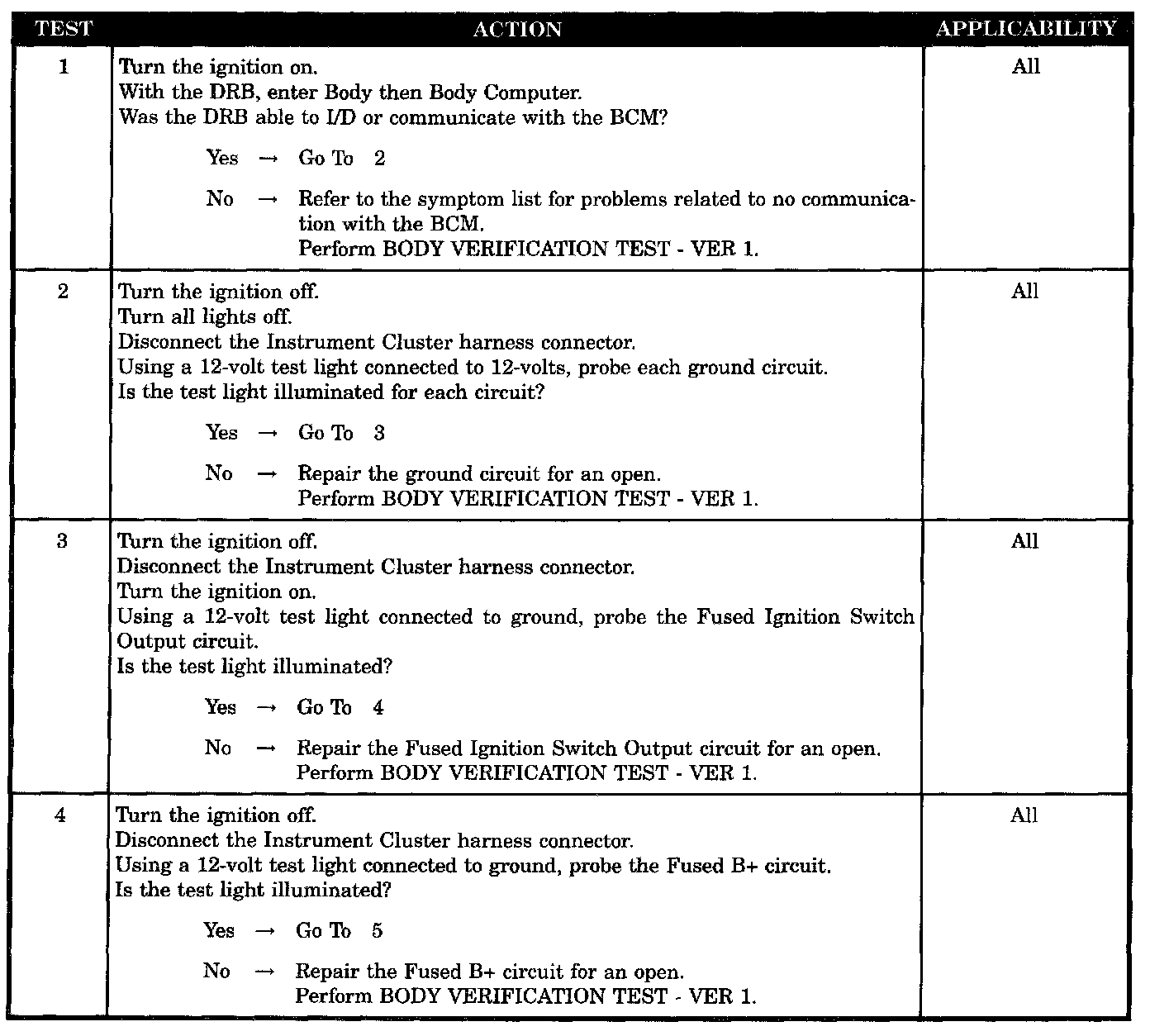

Test 1 - 4:

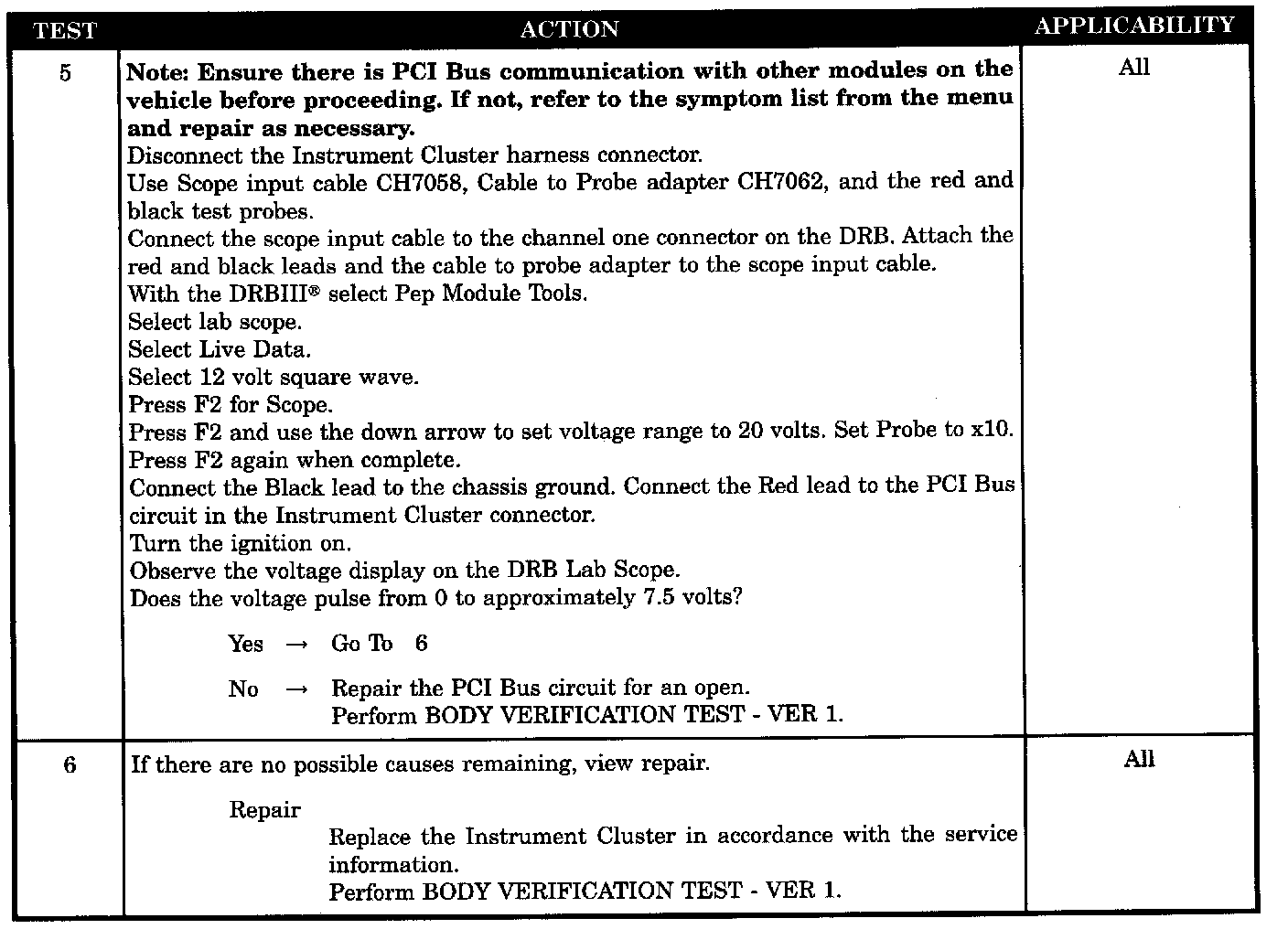

Test 5 - 6:

SYMPTOM
NO RESPONSE FROM INSTRUMENT CLUSTER

POSSIBLE CAUSES
- Attempt to communicate with the BCM
- Open ground circuit
- Open fused ignition switch output circuit
- Open fused B+ circuit
- Open PCI bus circuit
- Instrument cluster
