No Response From ITM (Intrusion Transceiver Module)

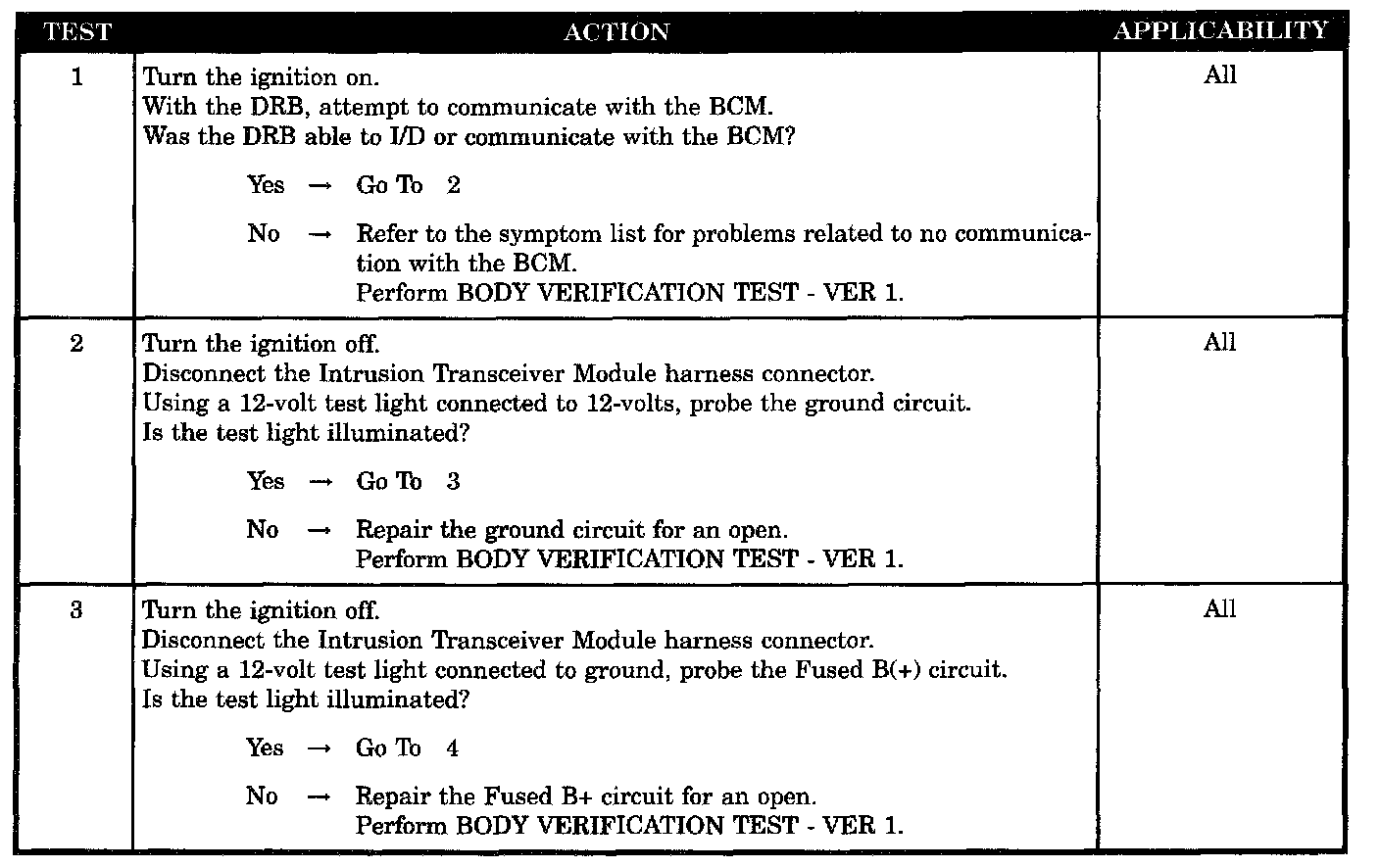

Test 1 - 3:

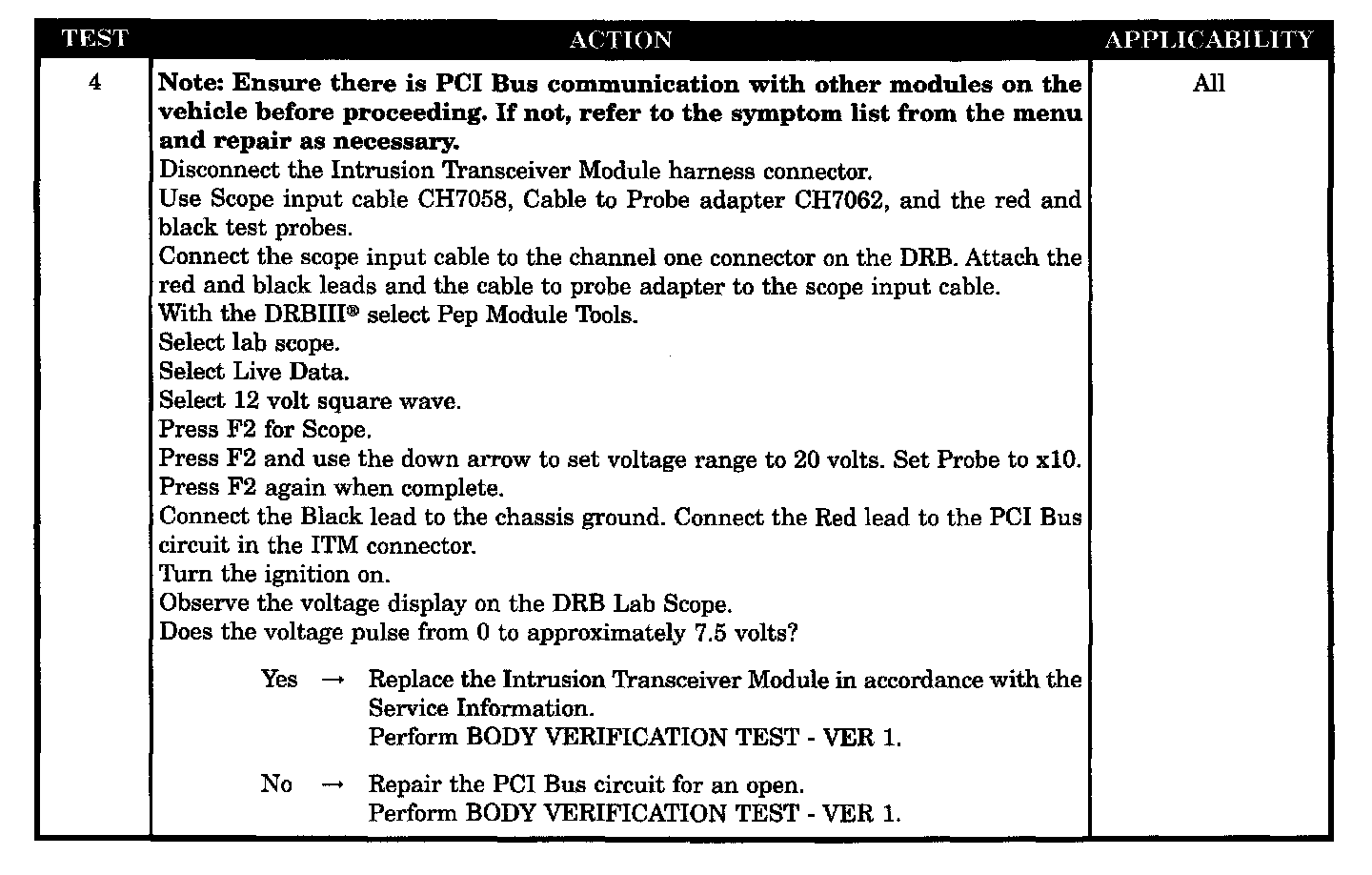

Test 4:

SYMPTOM
NO RESPONSE FROM INTRUSION TRANSCEIVER MODULE

POSSIBLE CAUSES
- Attempt to communicate with the BCM
- Ground circuit open
- Fused B(+) circuit open
- Open PCI bus circuit
- Intrusion transceiver
