No Response From DDM (Driver Door Module)

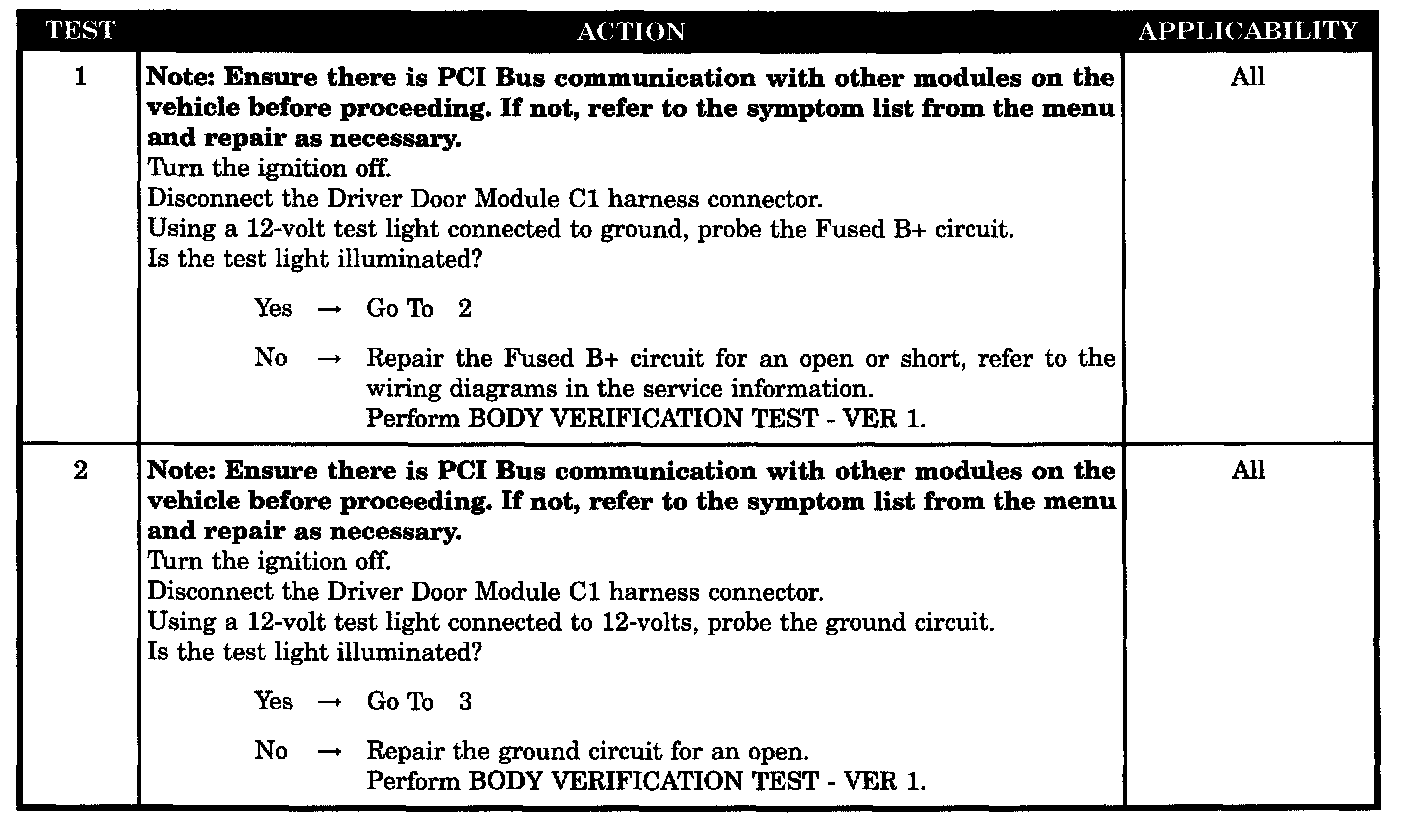

Test 1 - 2:

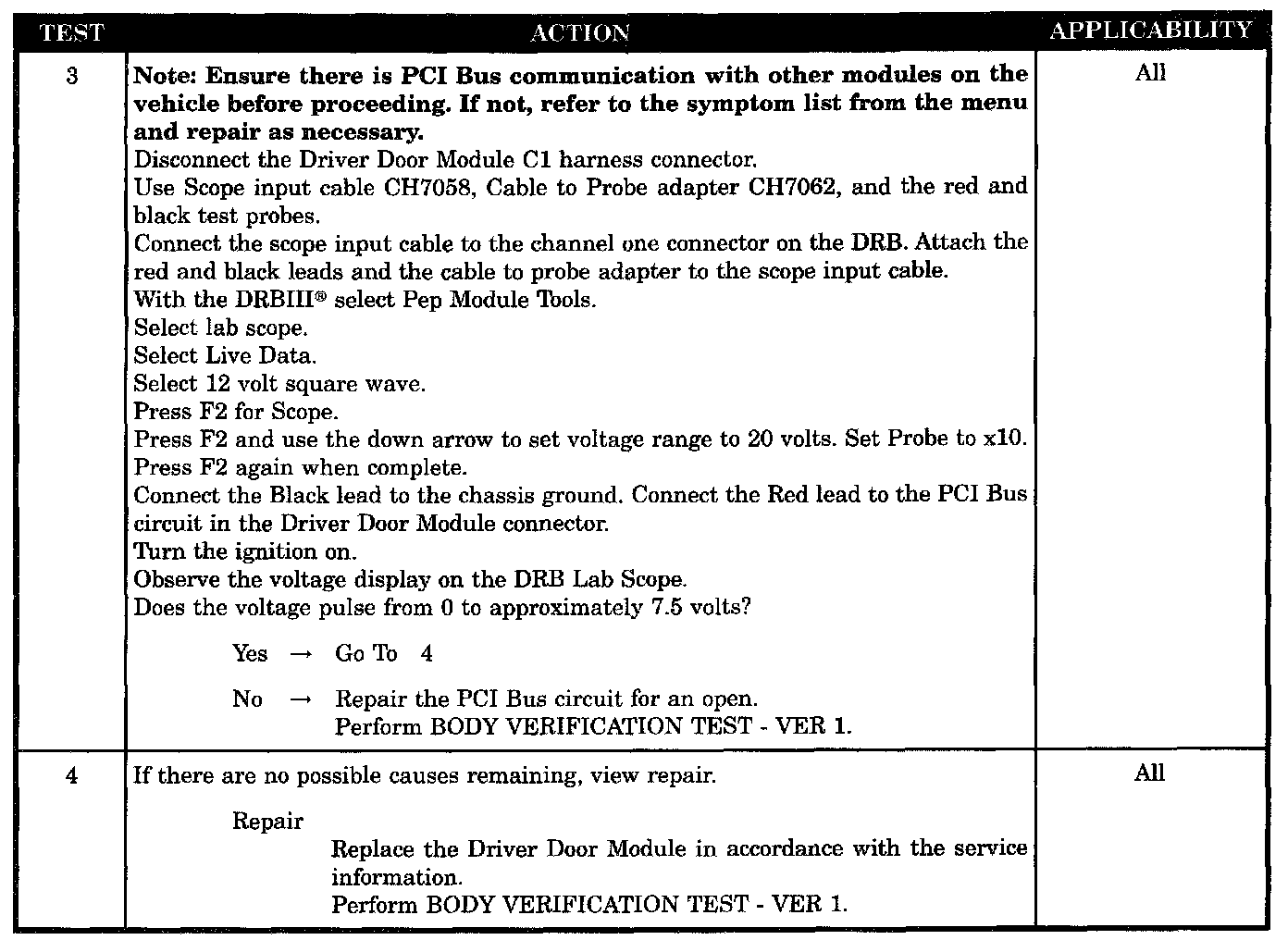

Test 3 - 4:






SYMPTOM
NO RESPONSE FROM DRIVER DOOR MODULE

POSSIBLE CAUSES
- Open fused B+ circuit
- Open ground circuit
- Open PCI bus circuit
- Driver door module
