No Response From Automatic Zone Control Module

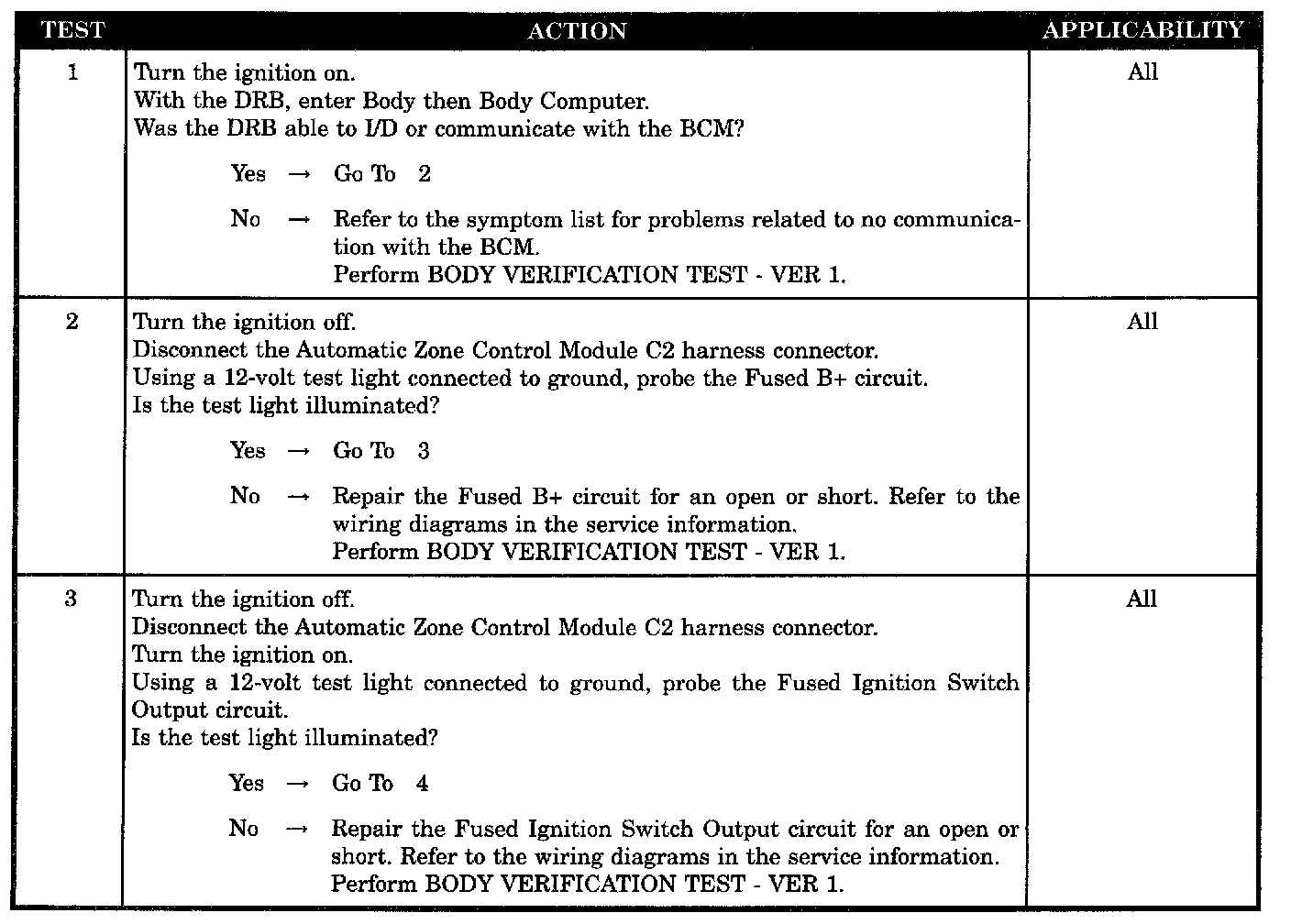

Test 1 - 3:

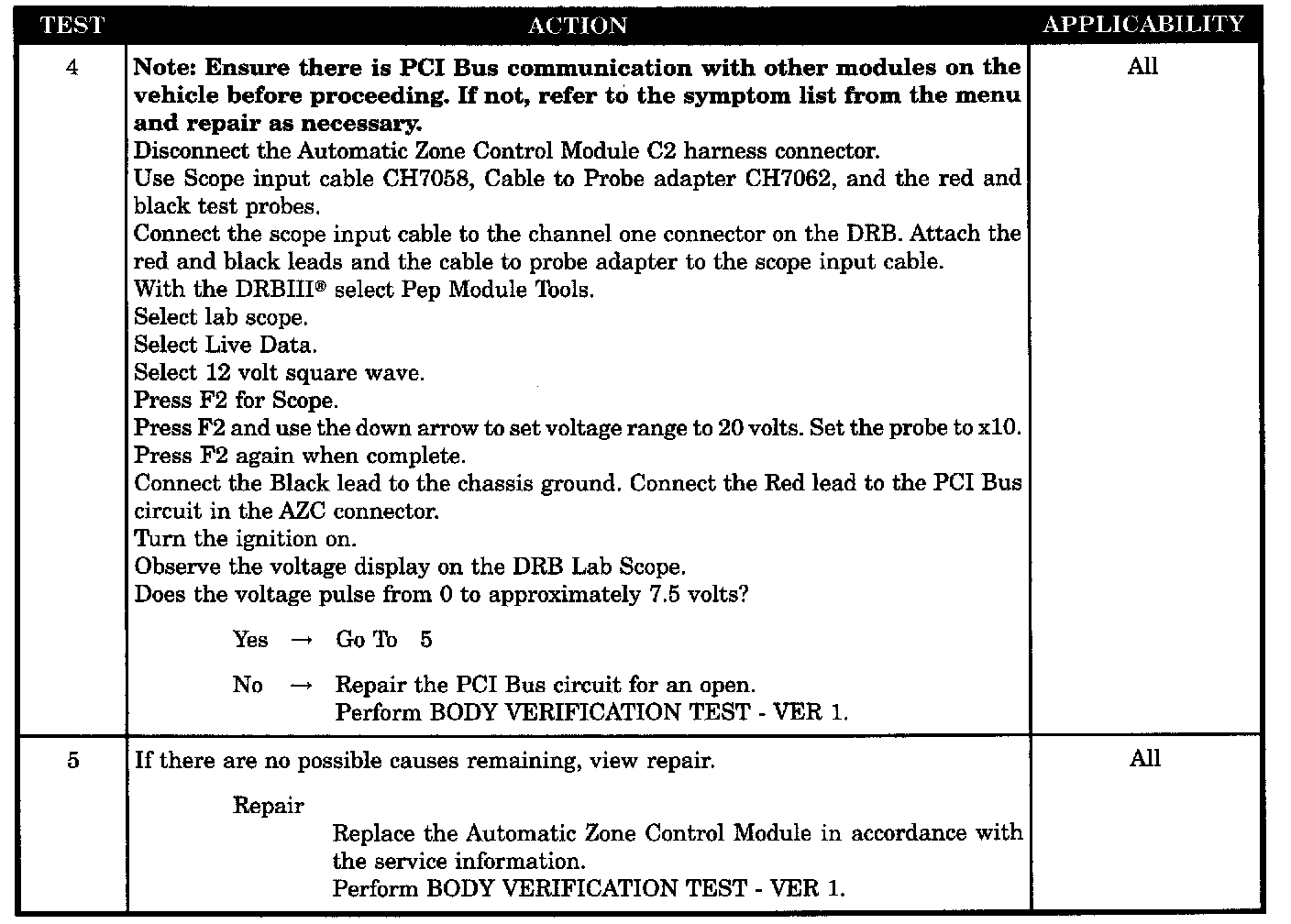

Test 4 - 5:

SYMPTOM
NO RESPONSE FROM AUTOMATIC ZONE CONTROL MODULE

POSSIBLE CAUSES
- Attempt to communicate with the BCM
- Fused B(+) CKT open
- Fused ignition switch output circuit open
- Open PCI bus circuit
- Automatic zone control module
