No Response From Airbag Control Module

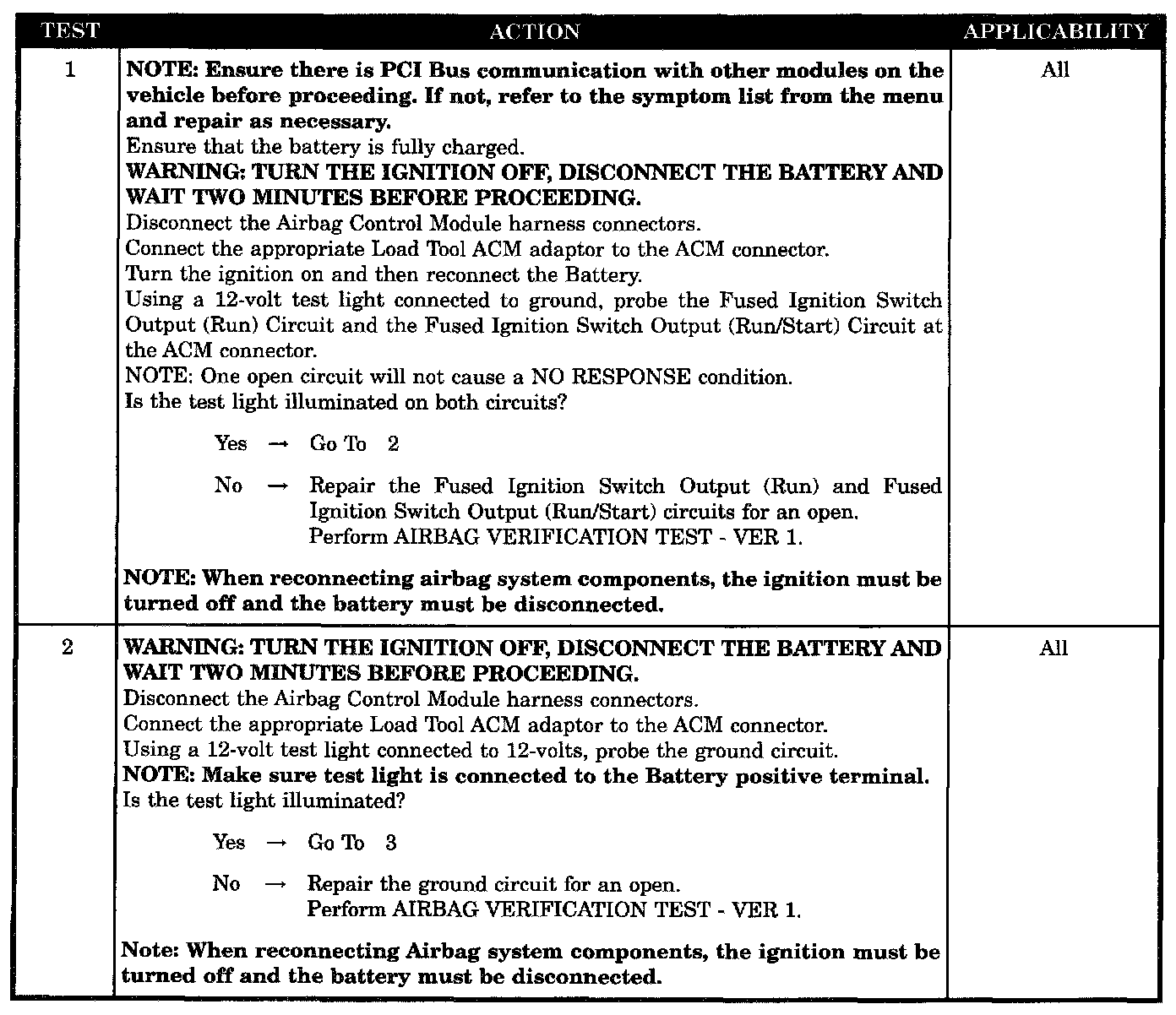

Test 1 - 2:

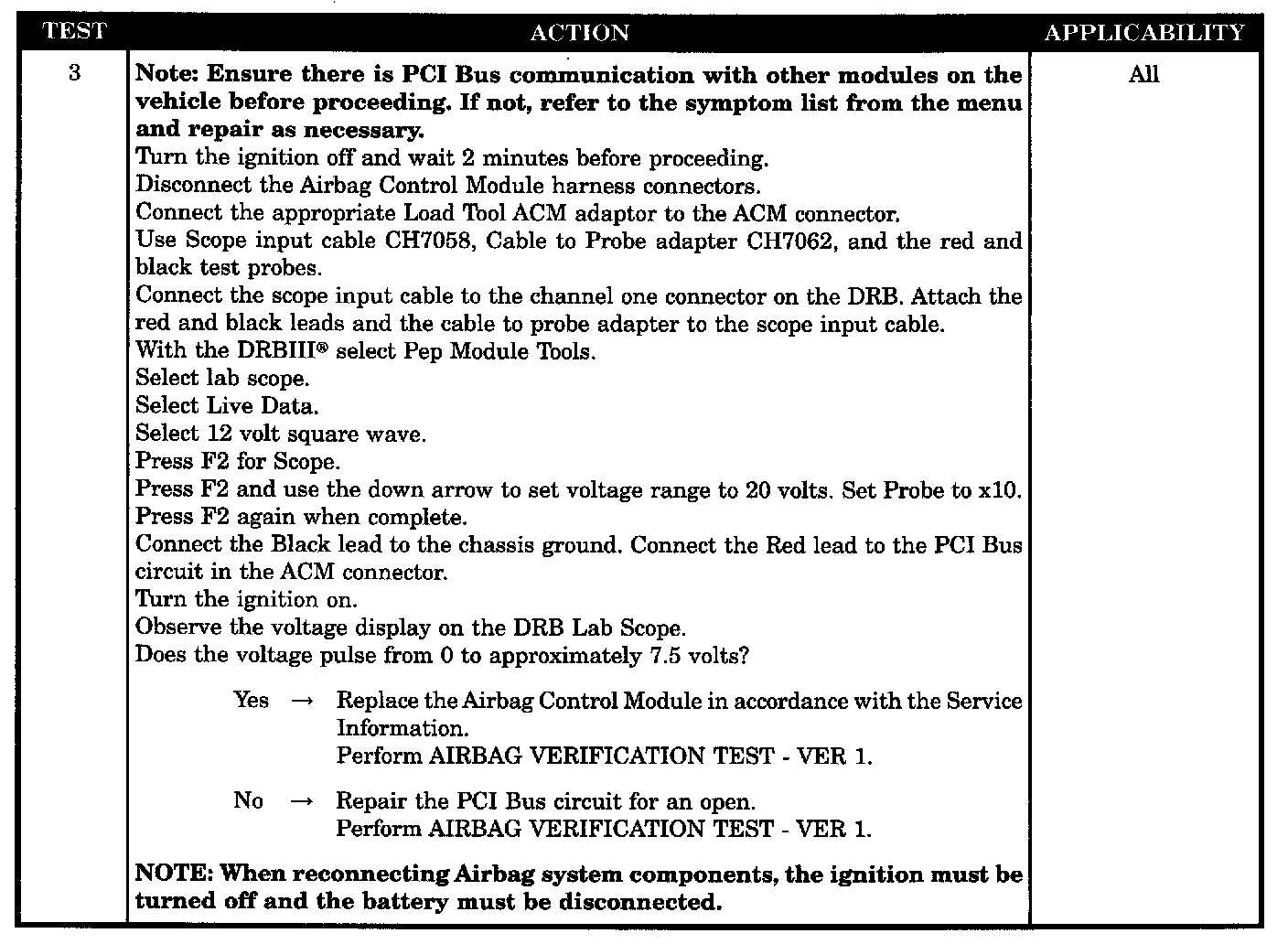

Test 3:






SYMPTOM
NO RESPONSE FROM AIRBAG CONTROL MODULE

POSSIBLE CAUSES
- Checking for voltage at ACM
- Ground circuit open
- Open PCI bus circuit
- Airbag control module
