No Response From Adjustable Pedals Module

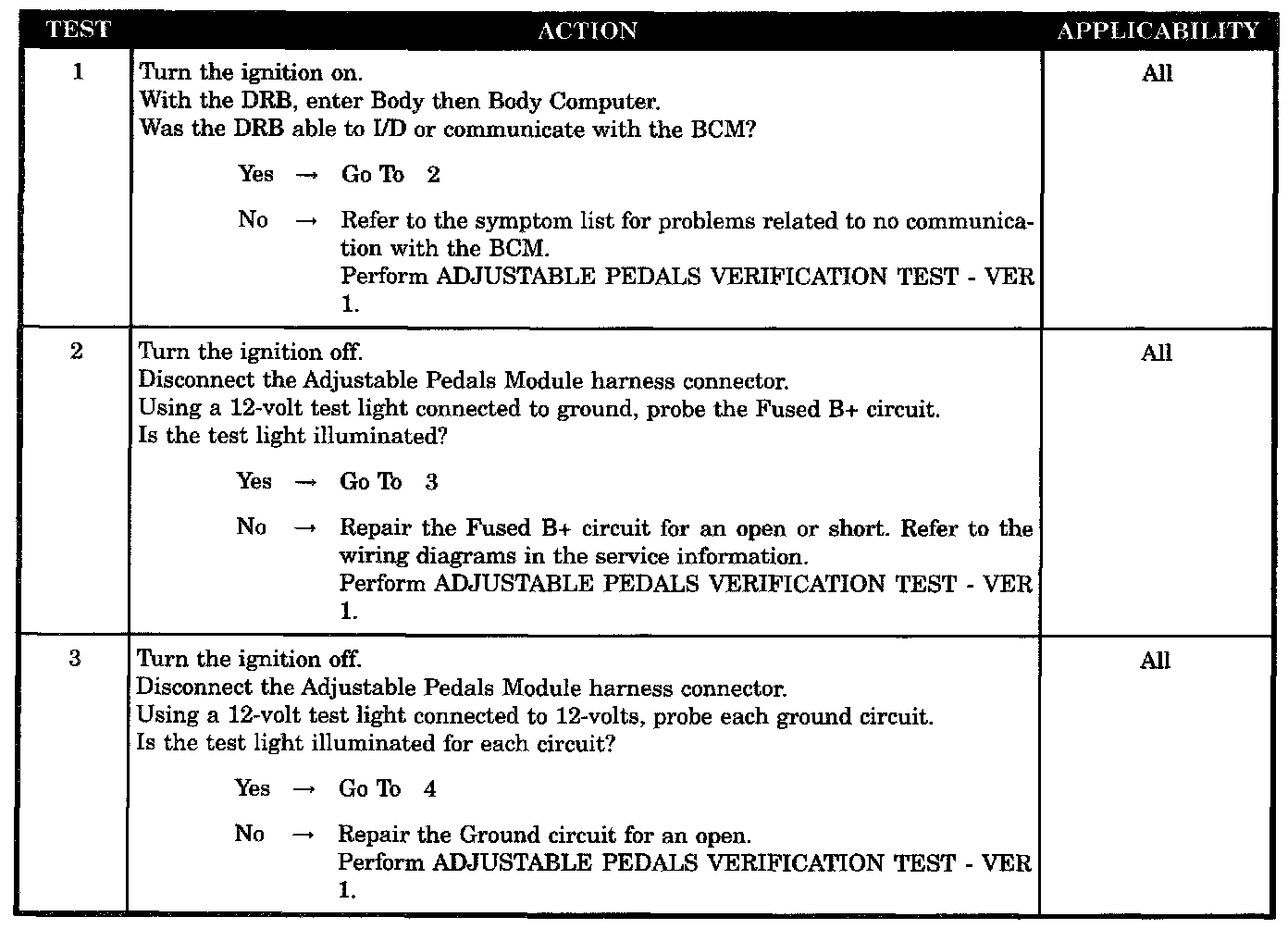

Tests 1 - 3:

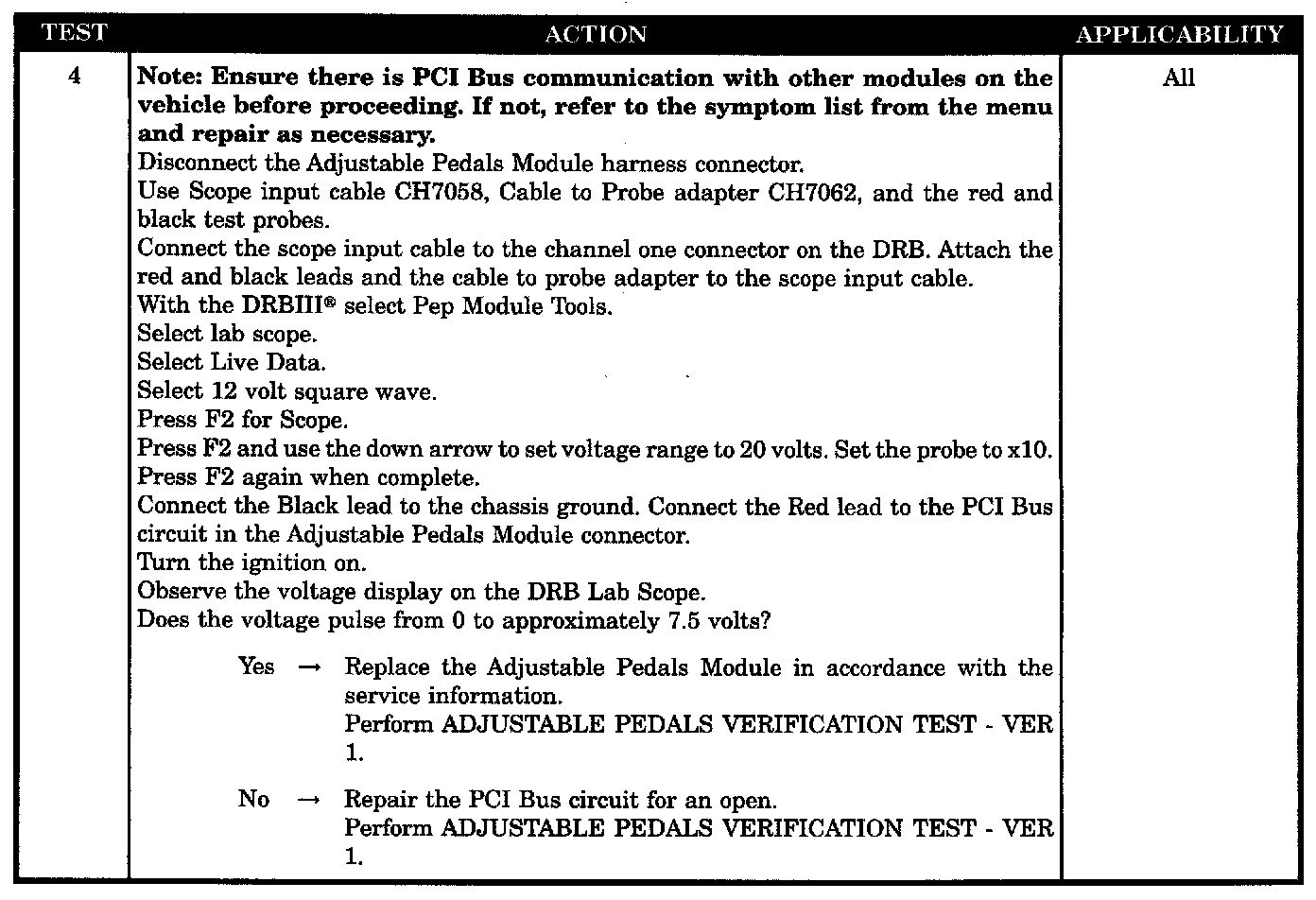

Test 4:

SYMPTOM
NO RESPONSE FROM ADJUSTABLE PEDALS MODULE

POSSIBLE CAUSES
- Attempt to communicate with the BCM
- Fused B(+) CKT open
- Ground CKT open
- Open PCI bus circuit
- Adjustable pedals module
