No Response From AMP (Amplifier)

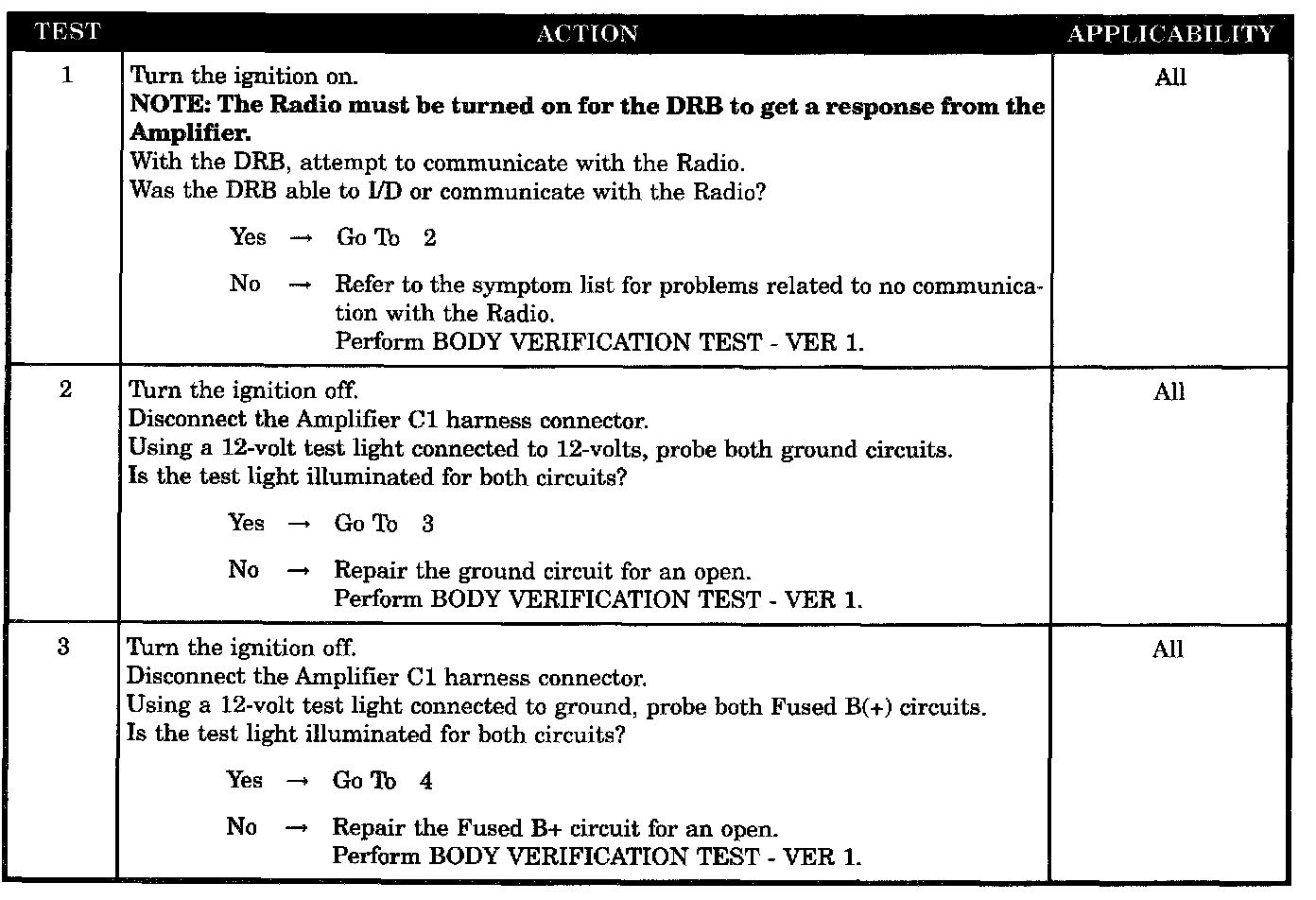

Test 1 - 3:

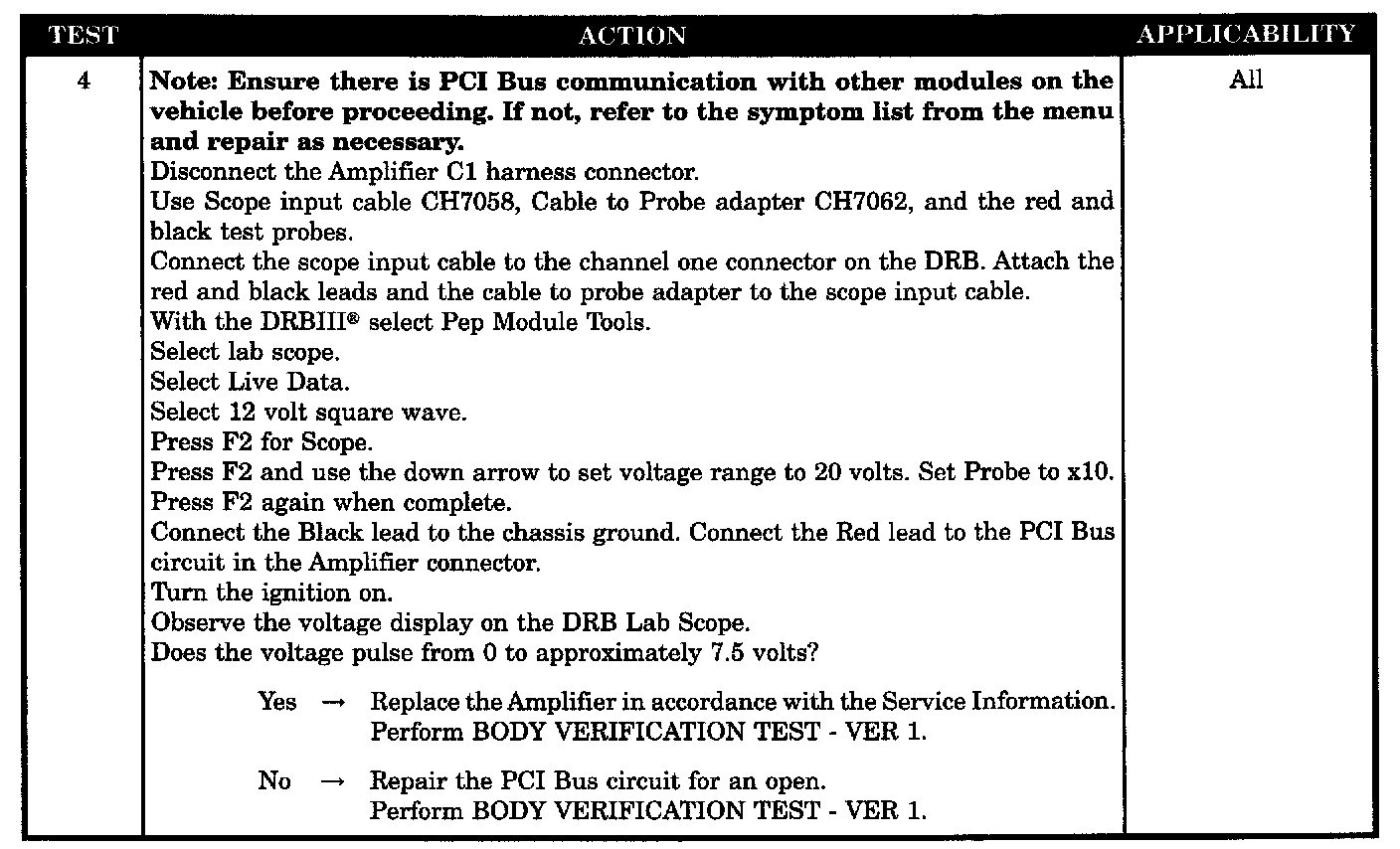

Test 4:

SYMPTOM
NO RESPONSE FROM AMPLIFIER

POSSIBLE CAUSES
- Attempt to communicate with the radio
- Ground circuit open
- Fused B(+) circuit open
- Open PCI bus circuit
- Amplifier
