Pedal Switch Stuck Rearward

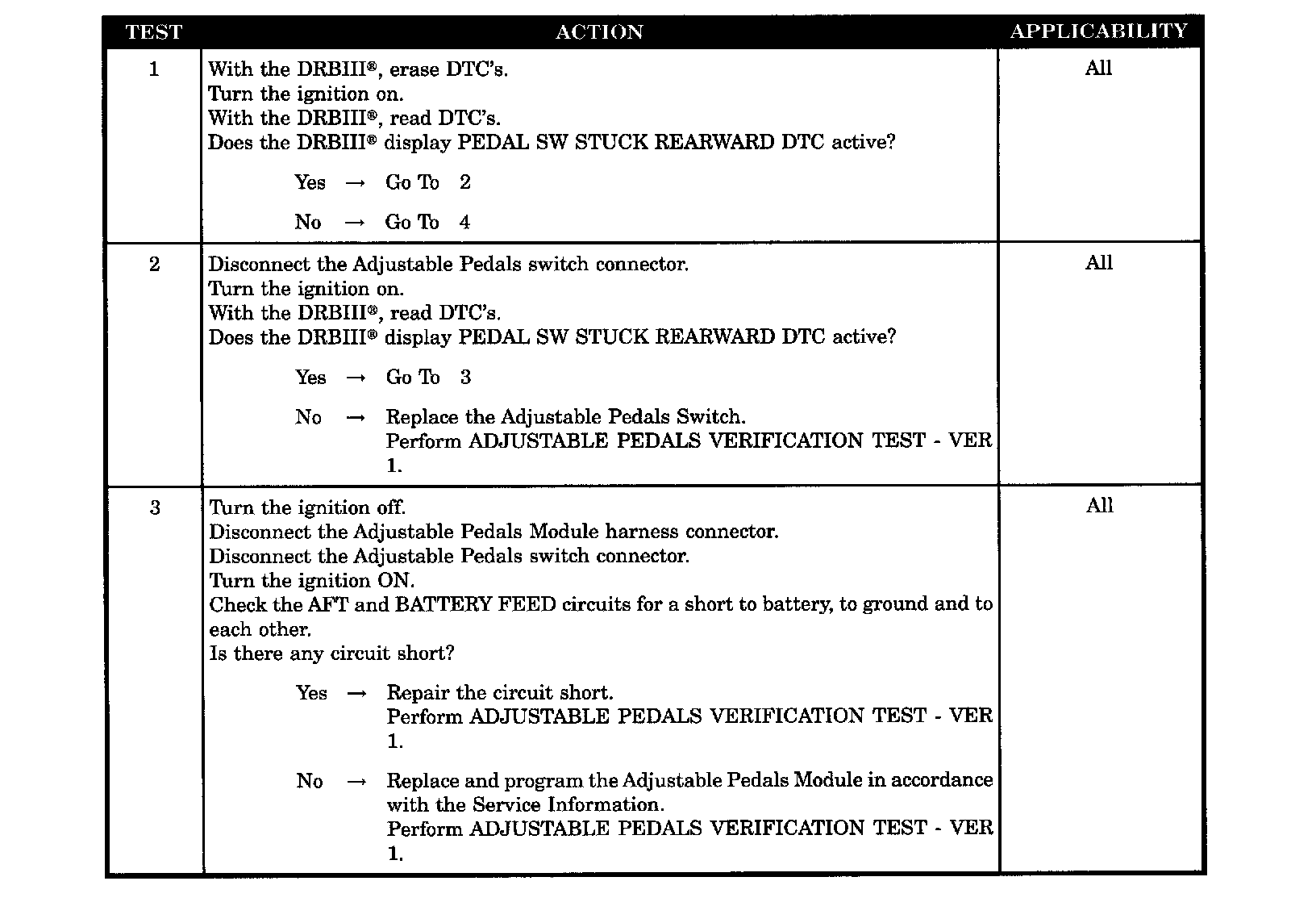

Test 1-3:

Test 4:

Symptom
PEDAL SW STUCK REARWARD

When Monitored
Constantly

Set Condition
When the Adjustable Pedals module detects battery voltage on the Adjustable Pedals Switch AFT circuit for more than 20 seconds.

POSSIBLE CAUSES
- ADJUSTABLE PEDALS MODULE INTERNAL FAULT
- SWITCH FAILURE
- INTERMITTENT DTC
- AFT CIRCUIT SHORTED TO BATTERY OR TO BATTERY FEED CIRCUIT
