Pedal Switch Stuck Forward

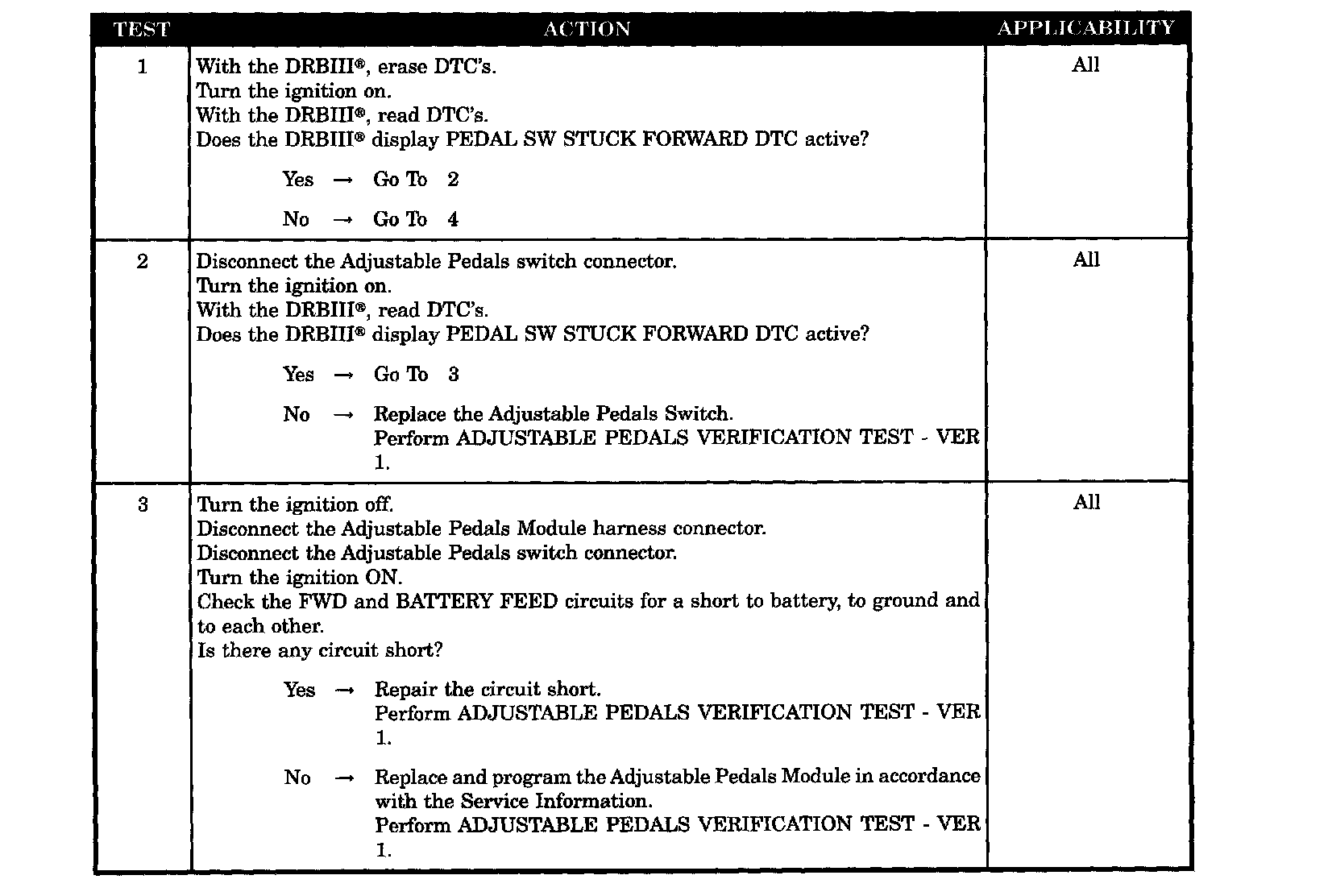

Test 1-3:

Test 4:

Symptom
PEDAL SW STUCK FORWARD

When Monitored
Constantly

Set Condition
When the Adjustable Pedals module detects battery voltage on the Adjustable Pedals Switch FWD circuit for more than 20 seconds.

POSSIBLE CAUSES
- ADJUSTABLE PEDALS MODULE INTERNAL FAULT
- SWITCH FAILURE
- INTERMITTENT DTC
- FWD CIRCUIT SHORTED TO BATTERY OR TO BATTERY FEED CIRCUIT
