Pedal Sensor Shorted to Ground

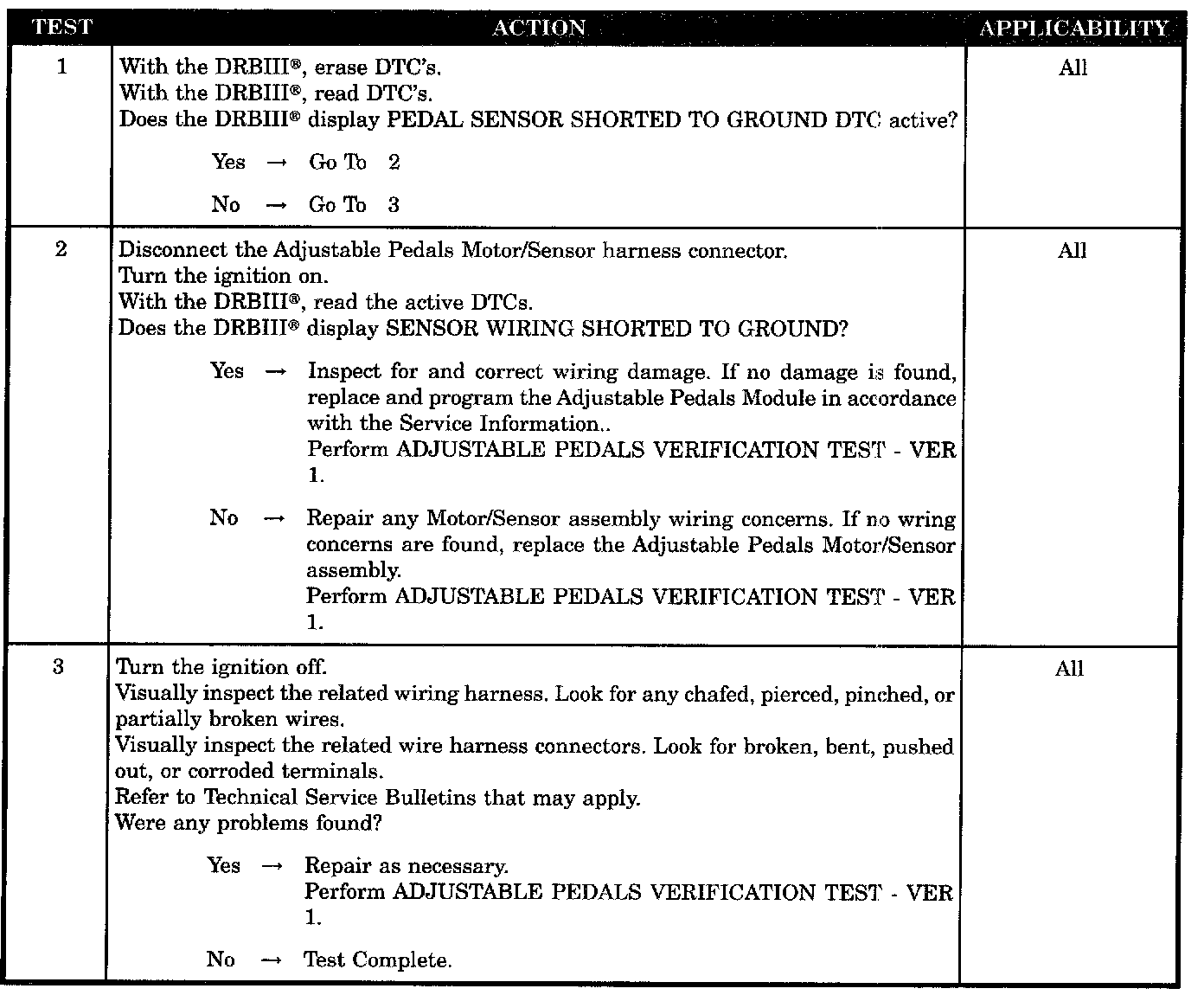

Test 1-3:

Symptom
PEDAL SENSOR SHORTED TO GROUND

When Monitored
Constantly

Set Condition
When the APM detects a ground condition at the Sense circuit.

POSSIBLE CAUSES
- MOTOR/SENSOR ASSEMBLY SHORTED TO GROUND
- APM-SENSE CIRCUIT GROUNDED INTERMITTENT DTC
