Pedal Sensor Open/Shorted to Battery

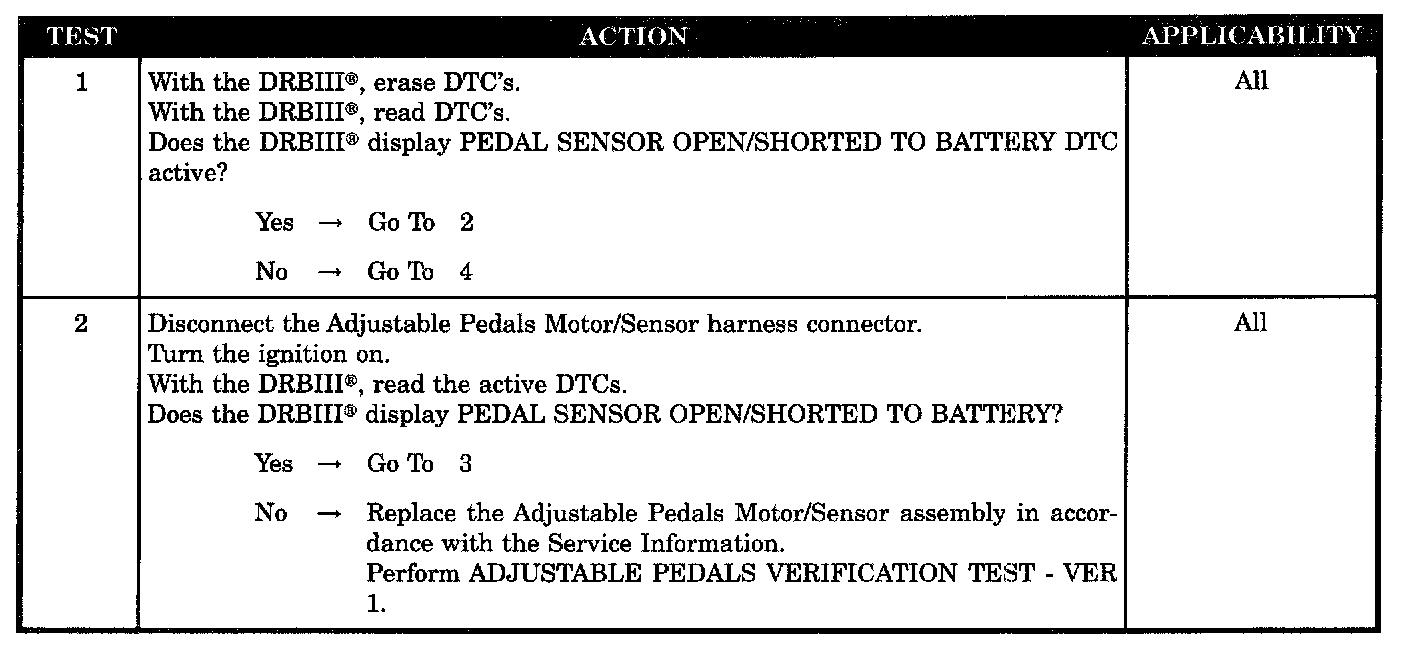

Test 1-2:

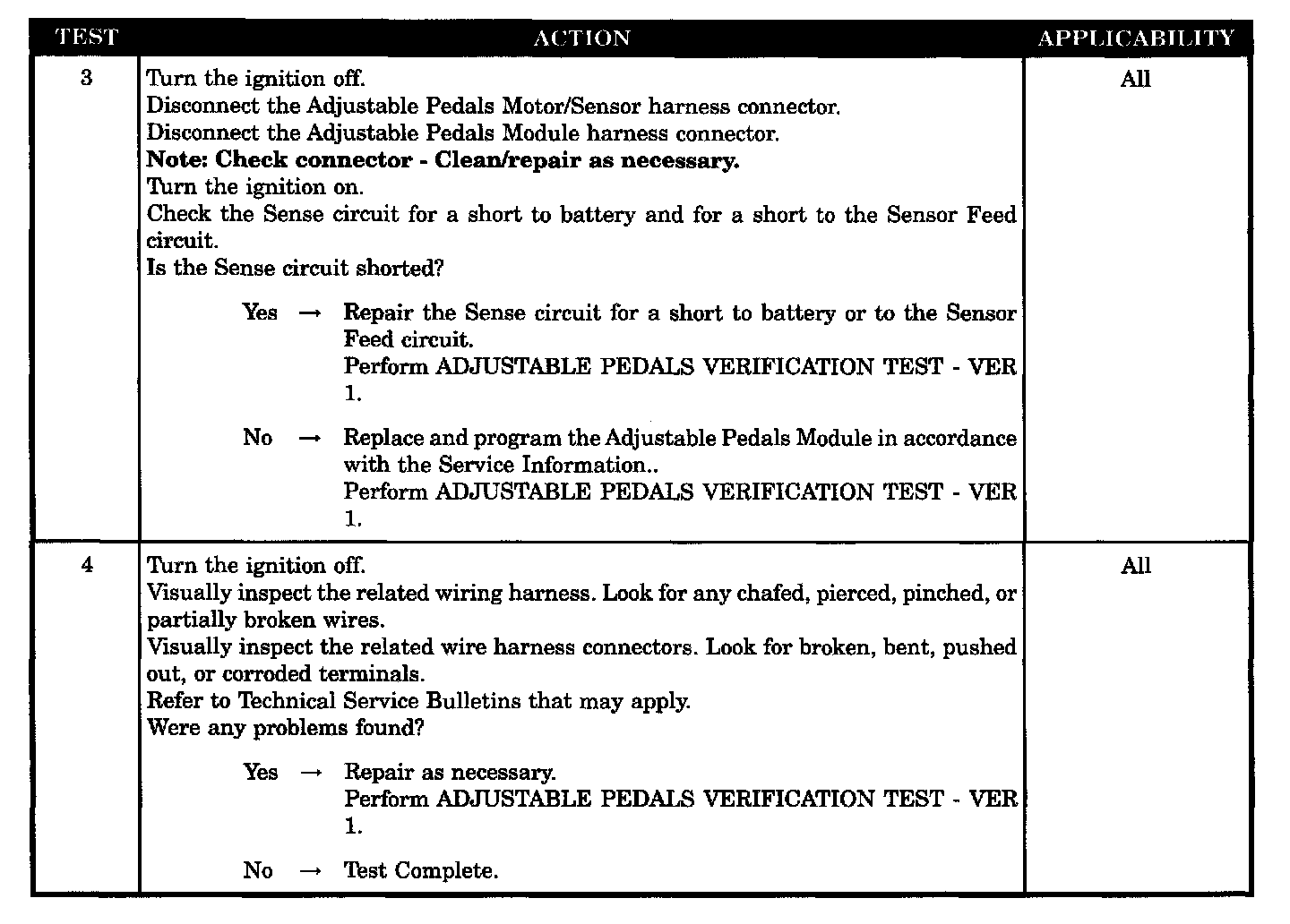

Test 3-4:

Symptom
PEDAL SENSOR OPEN/SHORTED TO BATTERY

When Monitored
Constantly.

Set Condition
When the APM detects the voltage on the Sense circuit is too high.

POSSIBLE CAUSES
- MOTOR/SENSOR SHORTED OR OPEN
- SENSE CIRCUIT SHORT TO BATTERY OR TO SENSOR FEED CIRCUIT
- APM - INTERNAL FAULT
- INTERMITTENT DTC
