Component Locations

WARNING: This page is about a different car, the 2002 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

For restraint system component locations, see illustrations and table. See Fig 1 - Fig 6 .

Fig 1: Locating Air Bag System Components (1 Of 6)

G99F26885

Courtesy of DAIMLERCHRYSLER CORP.

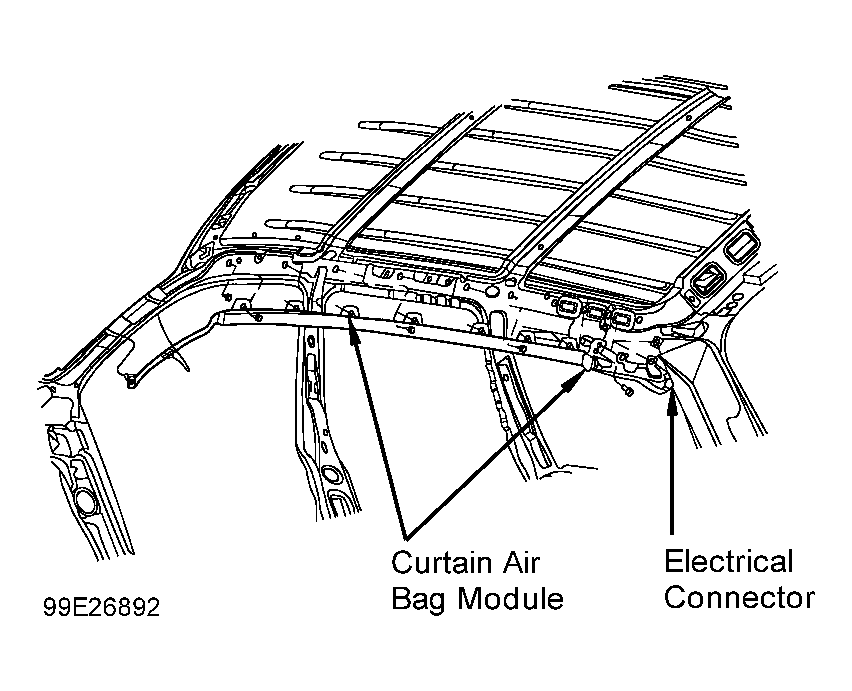

Fig 2: Locating Restraint System Components (2 Of 6)

G99E26892

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Locating Air Bag System Components (3 Of 6)

G99H26887

Courtesy of DAIMLERCHRYSLER CORP.

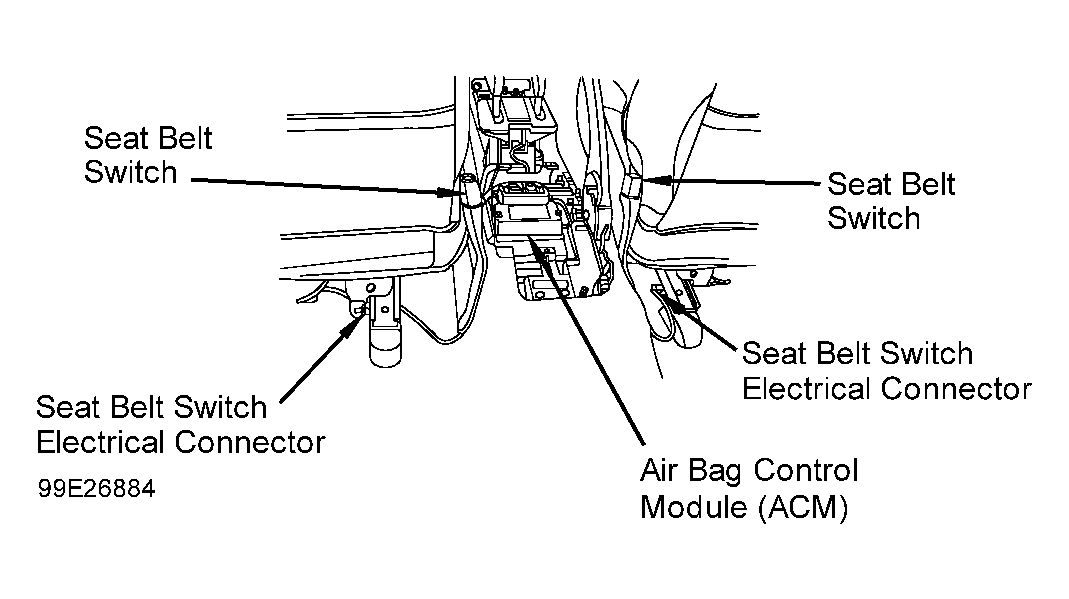

Fig 4: Locating Air Bag System Components (4 Of 6)

G99E26884

Courtesy of DAIMLERCHRYSLER CORP.

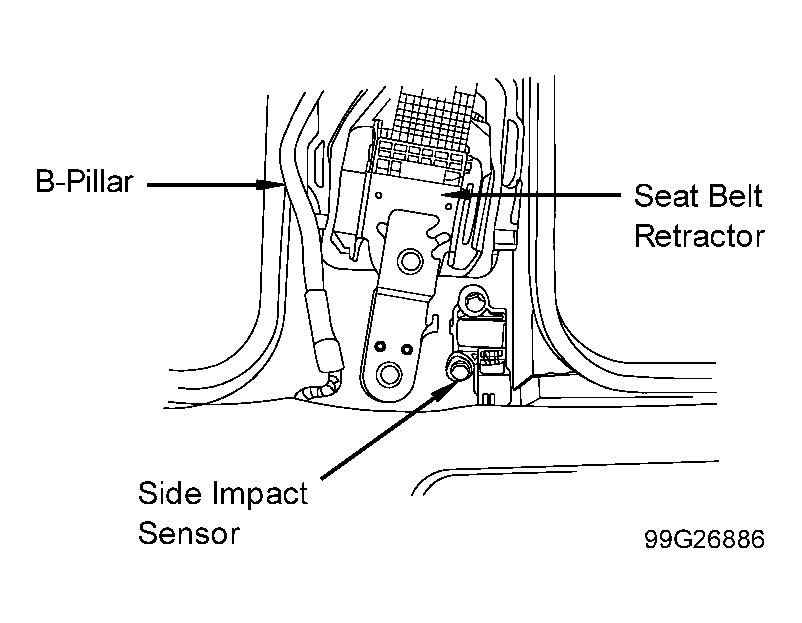

Fig 5: Locating Air Bag System Components (5 Of 6)

G99G26886

Courtesy of DAIMLERCHRYSLER CORP.

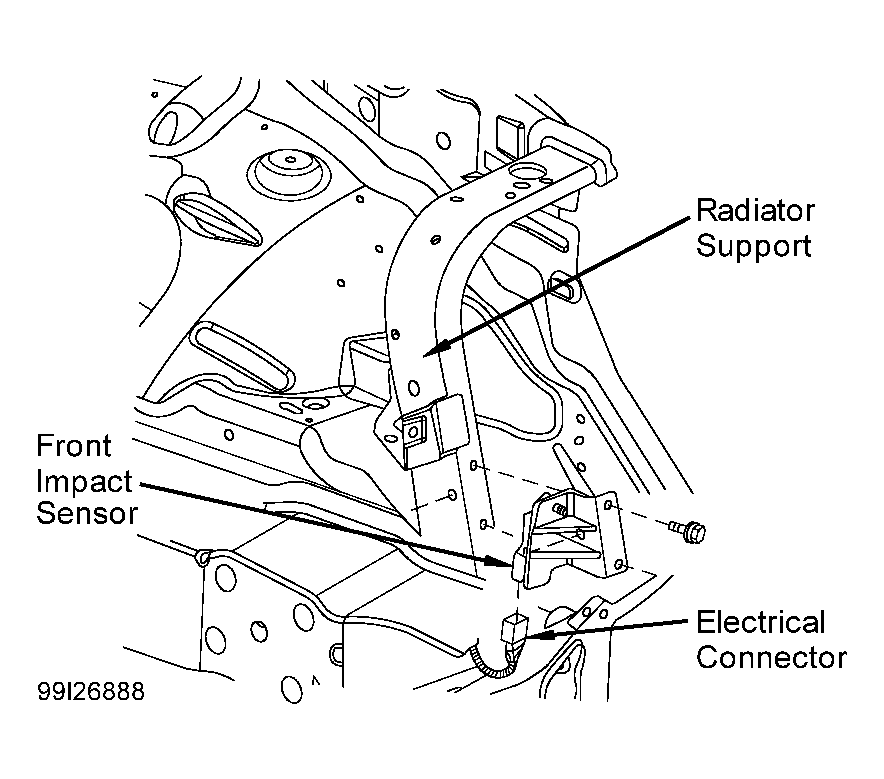

Fig 6: Locating Air Bag System Components (6 Of 6)

G99I26888

Courtesy of DAIMLERCHRYSLER CORP.

RESTRAINT SYSTEM COMPONENT LOCATIONS

Component	Location
Air bag control module	On floor of transmission tunnel, under center floor console
Clockspring	Top of steering column, behind steering wheel
Curtain air bag modules	Outboard edges of roof, behind headliner
Data link connector	Under left side instrument panel, near steering column
Dual-stage driver-side air bag module	Front face of steering wheel
Dual-stage passenger-side air bag module	Right side of instrument panel, beneath top panel, above glove box
Front impact sensors	On vertical members of radiator support, in engine compartment
Seat belt switches	Integrated with front seat belt buckles
Side impact sensors	Behind B-pillar trim, near base of B-pillar
