Removal & Installation (Liberty)

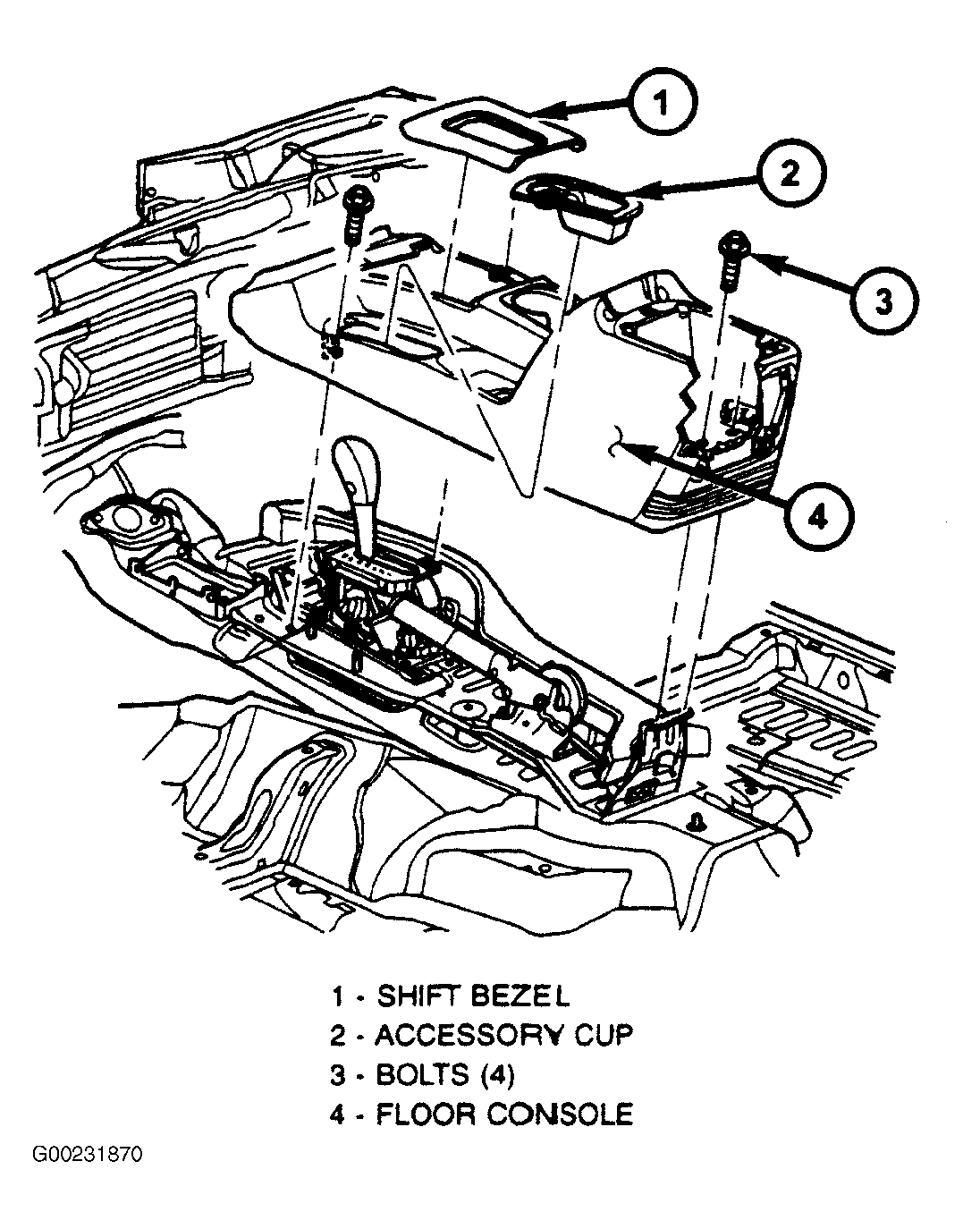

Using a trim stick or equivalent, pry shift bezel out of floor console. Set parking brake lever in full up position. Using a trim stick or equivalent, disconnect manual transmission and transfer case shifter boot(s), if equipped. Remove 4 bolts. See Fig 1. Lift console at rear and remove console. To install, reverse removal procedure.
