Differential Case Bearings

DIFFERENTIAL CASE BEARINGS

REMOVAL
1. Raise and support vehicle.
2. Remove differential case from axle housing.

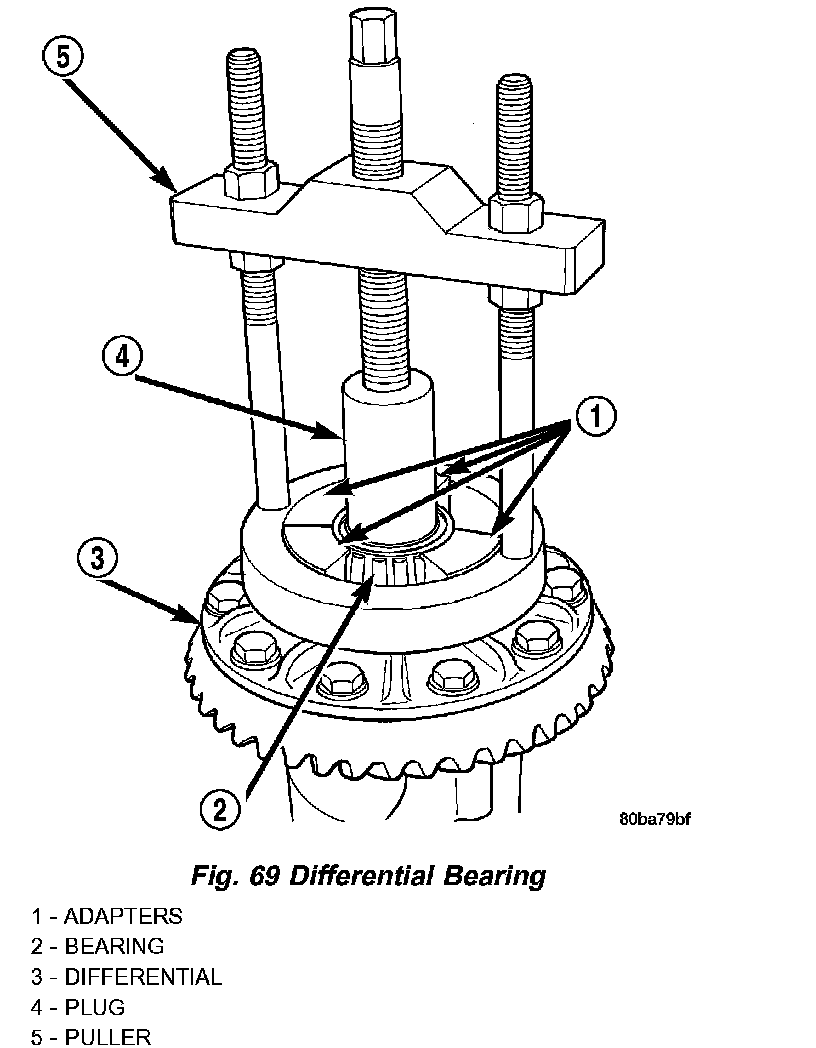

3. Remove bearings from the differential case with Puller/Press C-293-PA, Adapter 8352 and Plug SP-3289 (Fig. 69).

INSTALLATION

NOTE: If differential side bearings or differential case are replaced, differential side bearing shim requirements may change. Refer to Adjustments (Differential Bearing Preload and Gear Backlash) for procedures.





1. Install differential side bearings with Installer C-3716-A and Handle C-4171 (Fig. 70).
2. Install differential in axle housing.
3. Remove support and lower vehicle.
