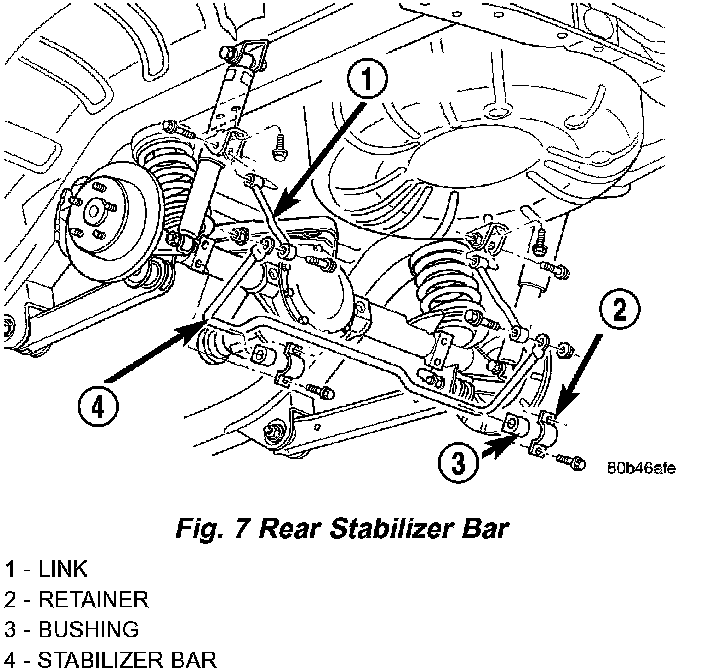

Rear

REMOVAL
1. Raise and support the vehicle.





2. Remove the stabilizer bar links from stabilizer bar and frame mount..
3. Remove the stabilizer bar retainer bolts.
4. Remove the stabilizer bar.

INSTALLATION
1. Position the stabilizer bar on the axle and install the retainers and bolts. Ensure the bar is centered with equal spacing on both sides. Tighten the bolts to 54 Nm (40 ft. lbs.).
2. Install the links to the stabilizer bar and frame brackets.
3. Tighten the nuts at the stabilizer bar to 54 Nm (40 ft. lbs.).
4. Tighten the nuts at the frame brackets to 92 Nm (68 ft. lbs.).
5. Remove support and lower the vehicle.
