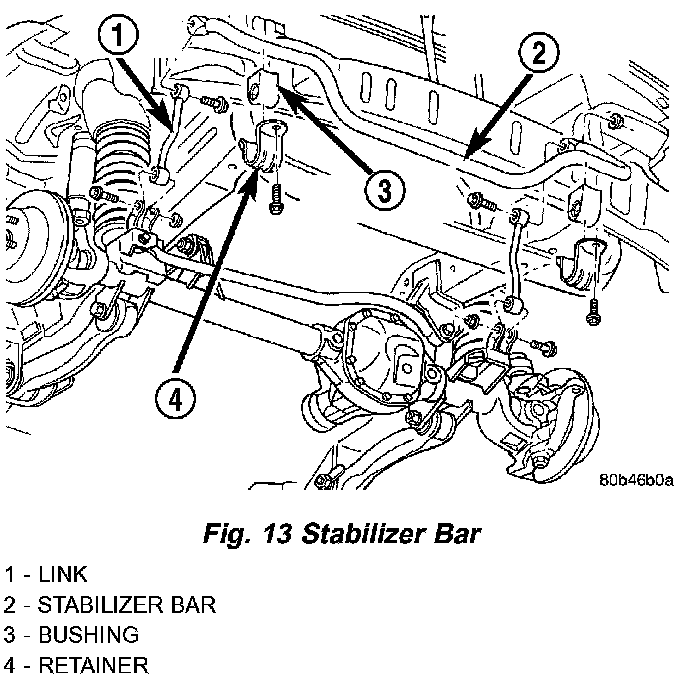

Front

REMOVAL
1. Raise and support the vehicle.





2. Remove link nuts and bolts and remove the links.
3. Remove the stabilizer bar retainer bolts from the frame rails and remove the stabilizer bar.

INSTALLATION
1. Position the stabilizer bar on the frame rail and install the retainers and bolts. Ensure the bar is centered with equal spacing on both sides. Tighten the bolts to 92 Nm (68 ft. lbs.).
2. Install the links onto the stabilizer bar and axle brackets and install the bolts and nuts finger tight.
3. Remove the supports and lower the vehicle.
4. With the vehicle on the ground tighten the stabilizer bar link nuts to 106 Nm (78 ft. lbs.).
