Backup Lamps Come On While Shifter Is Not In Reverse
Backup Lamps Come On While Shifter Is Not In Reverse

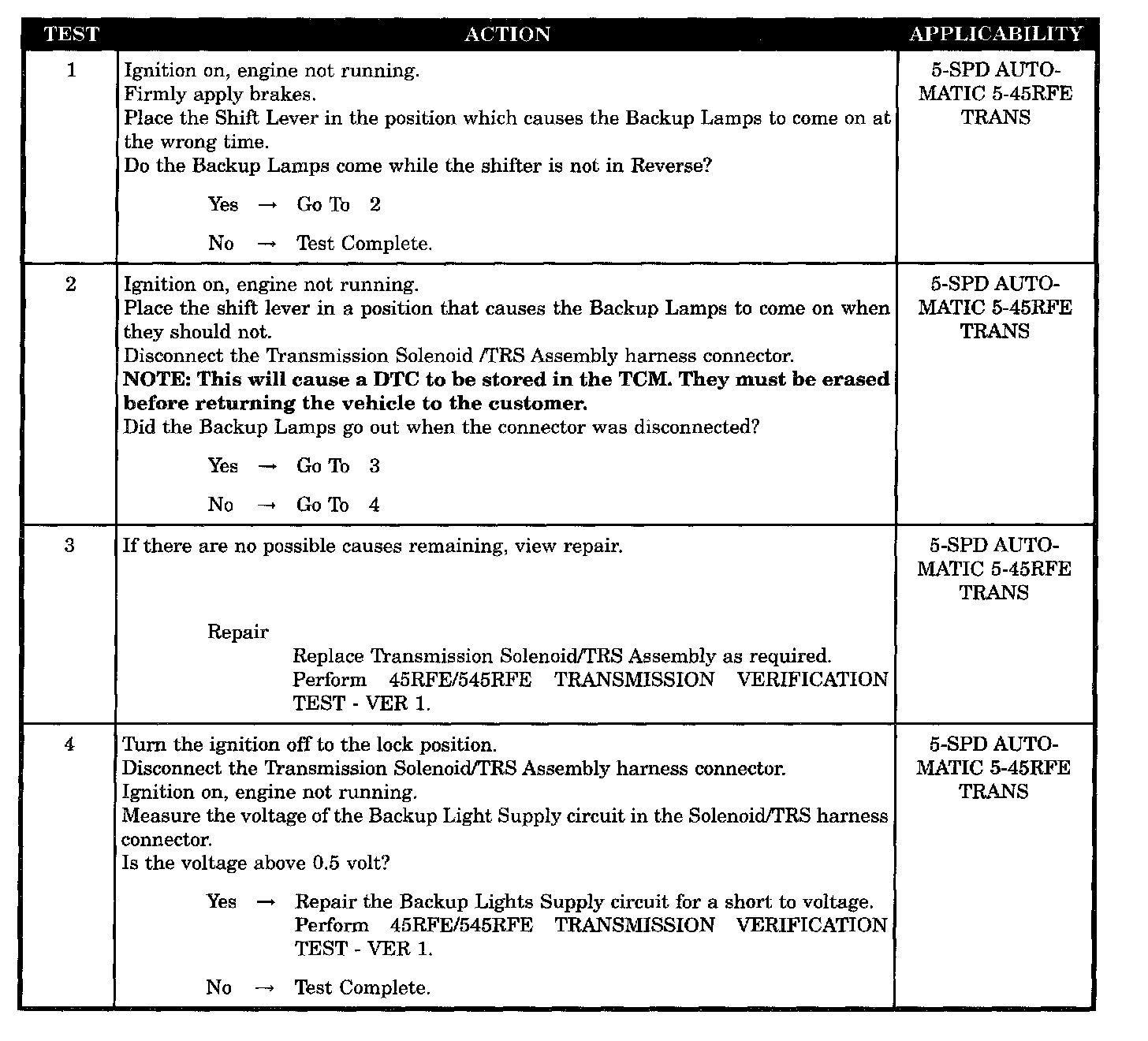

BACKUP LAMPS COME ON WHILE SHIFTER IS NOT IN REVERSE
POSITION
POSSIBLE CAUSES
BACKUP SUPPLY CIRCUIT SHORT TO VOLTAGE TRANSMISSION RANGE SENSOR
