Start and Stall Condition

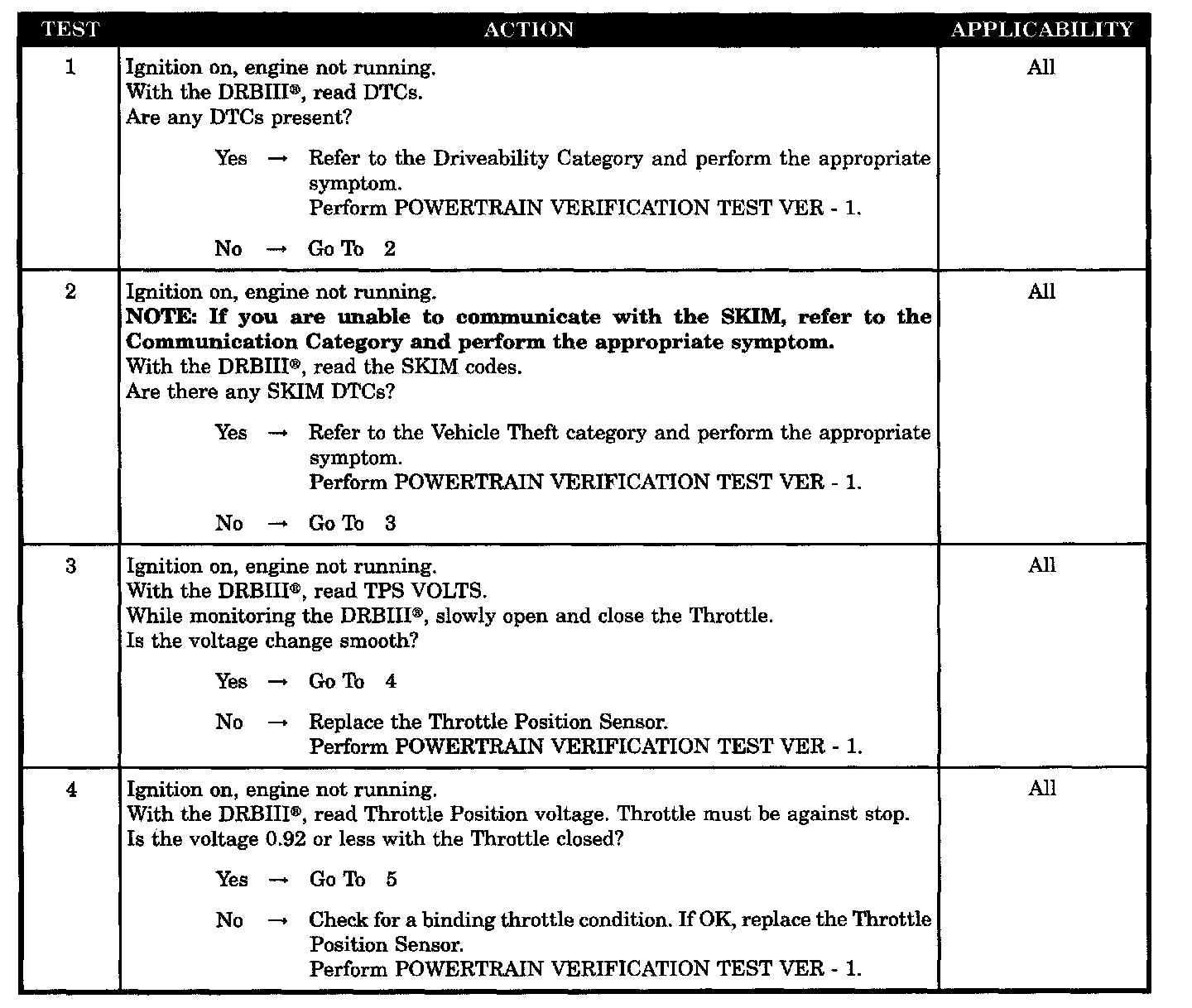

Tests 1 - 4:

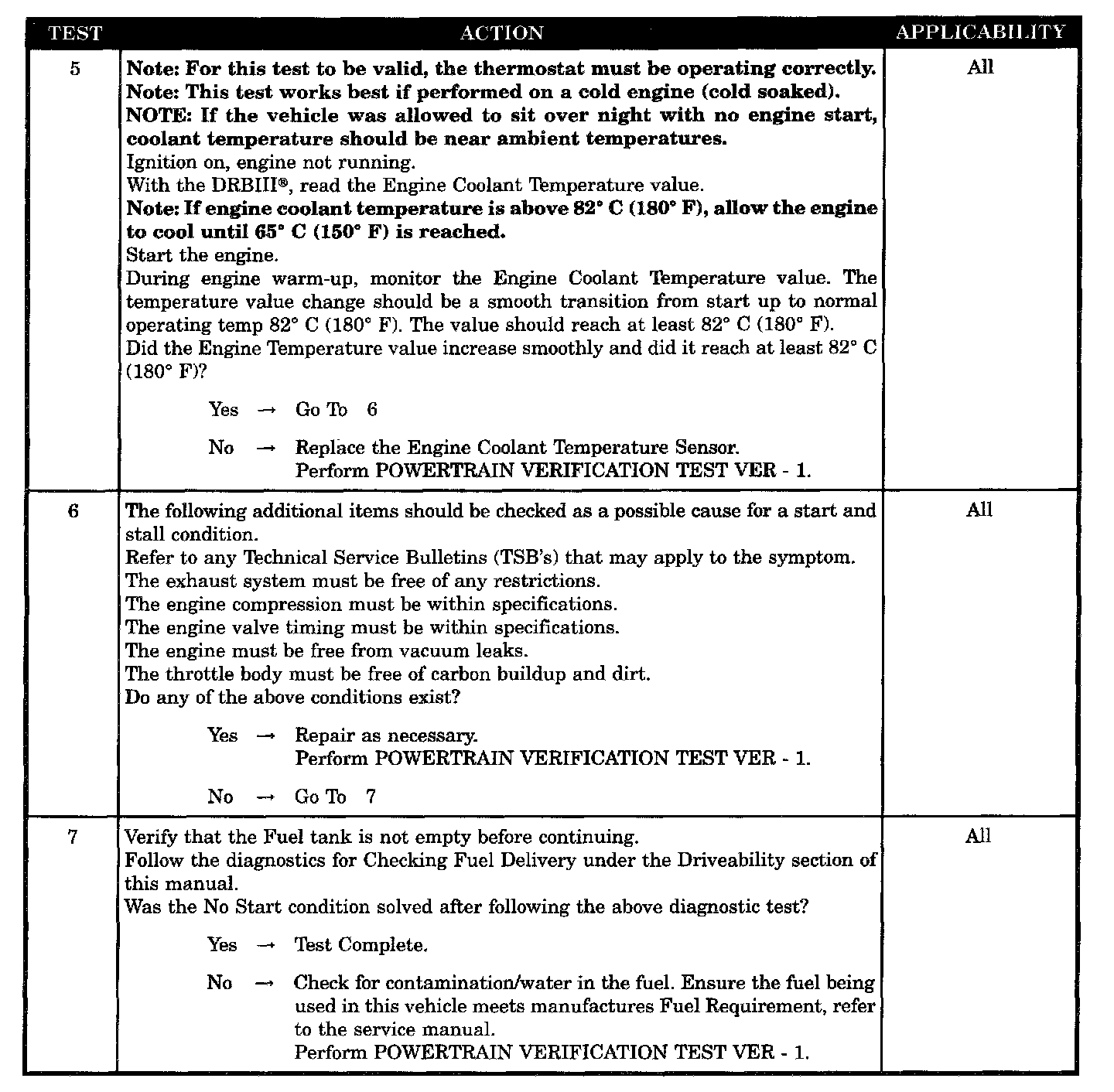

Tests 5 - 7:

SYMPTOM
START AND STALL CONDITION

POSSIBLE CAUSES
- Checking DTCS
- Checking SKIM DTCS
- Throttle position sensor sweep
- Throttle position sensor voltage greater than 0.92 volts with throttle closed
- Engine coolant temperature sensor operation
- Other possible causes for start & stall
- Fuel contamination
