No Crank Condition

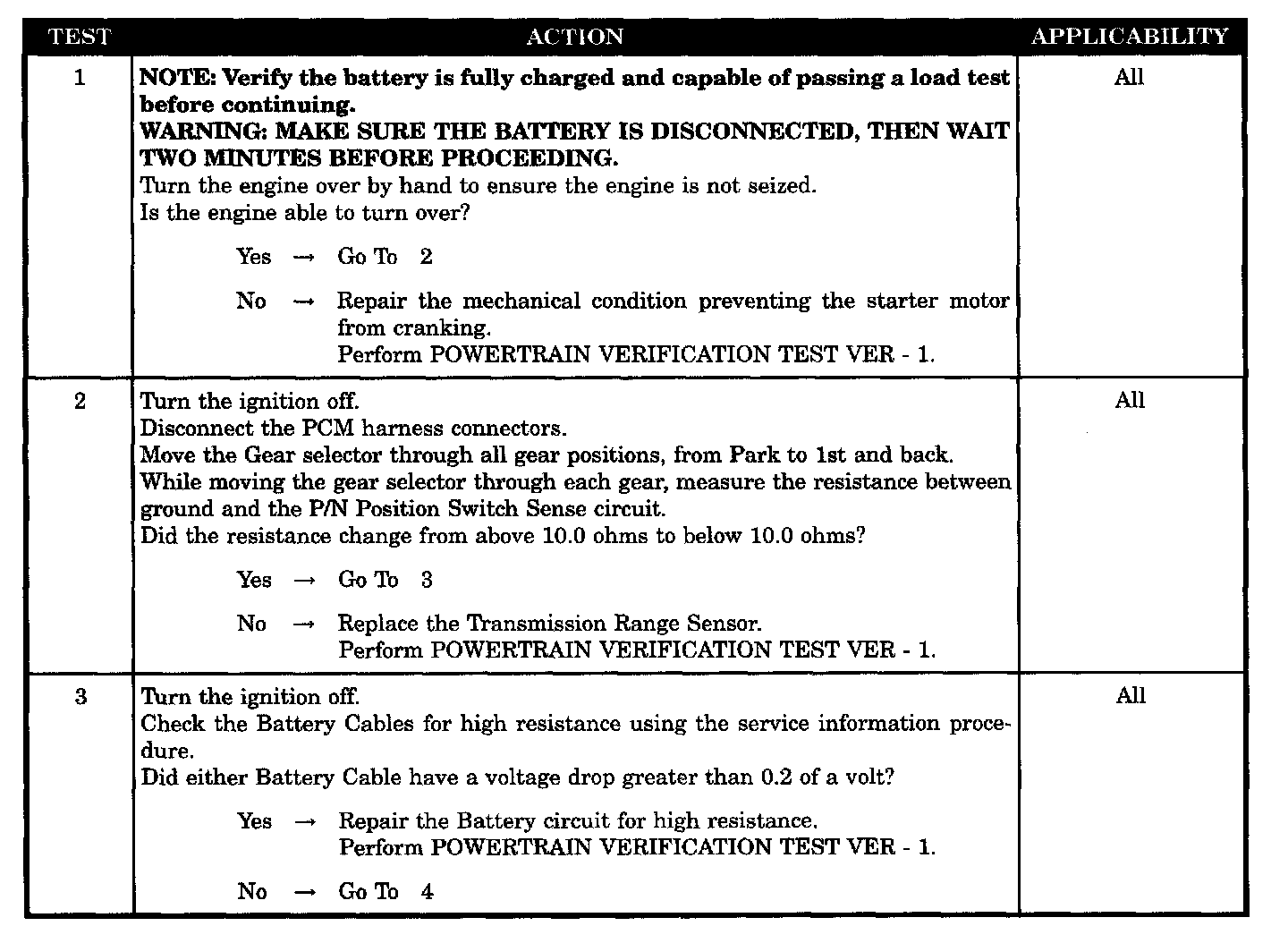

Tests 1 - 3:

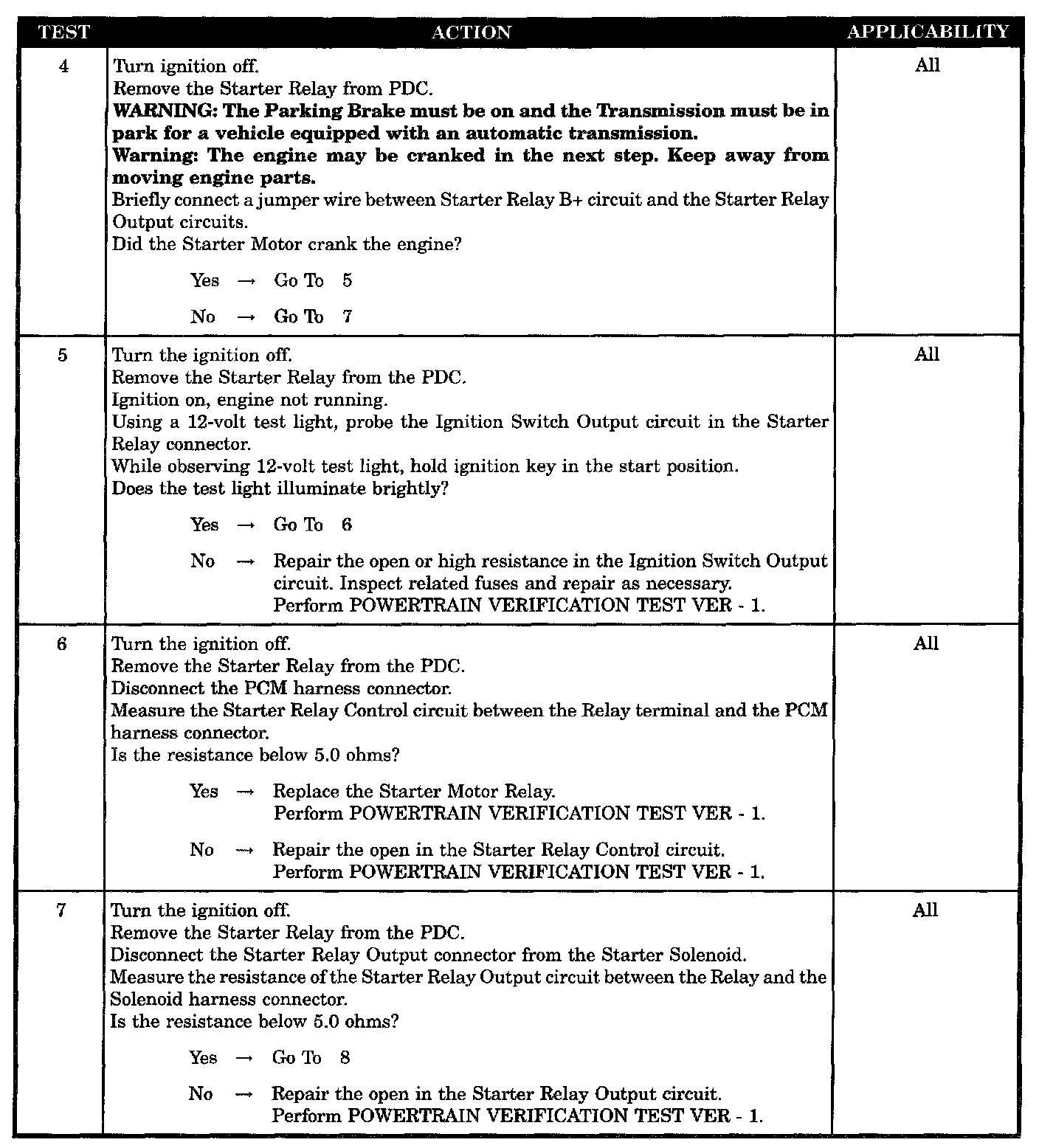

Tests 4 - 7:

Tests 8 - 9:

SYMPTOM
NO CRANK CONDITION

POSSIBLE CAUSES
- Mechanical condition
- Transmission range sensor
- Battery circuit resistance too high
- Ignition switch output circuit open
- Starter relay control circuit open
- Starter relay output circuit open
- Fused B(+) circuit open
- Starter
- Starter relay
