Engine Cranks But Does Not Start

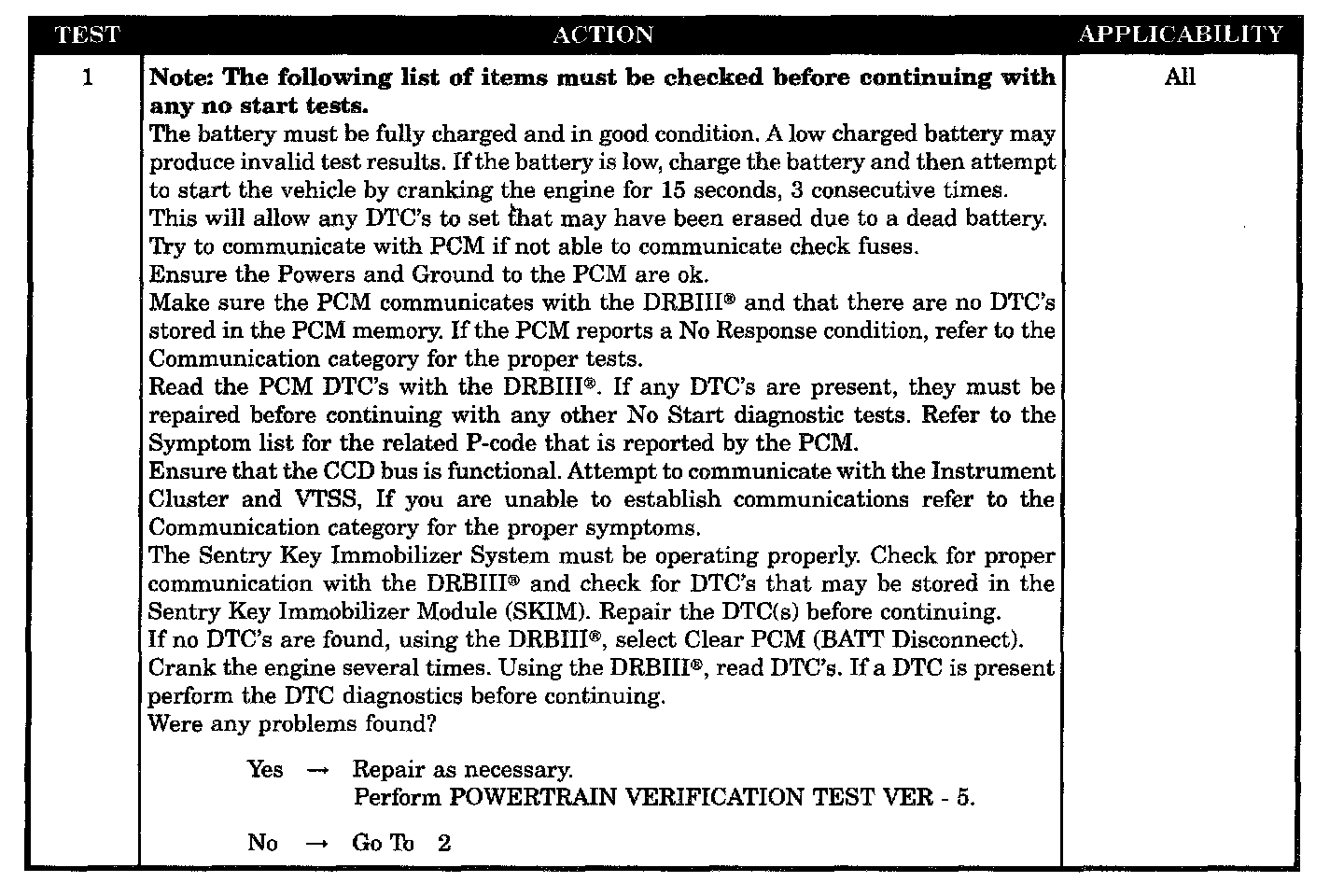

Test 1:

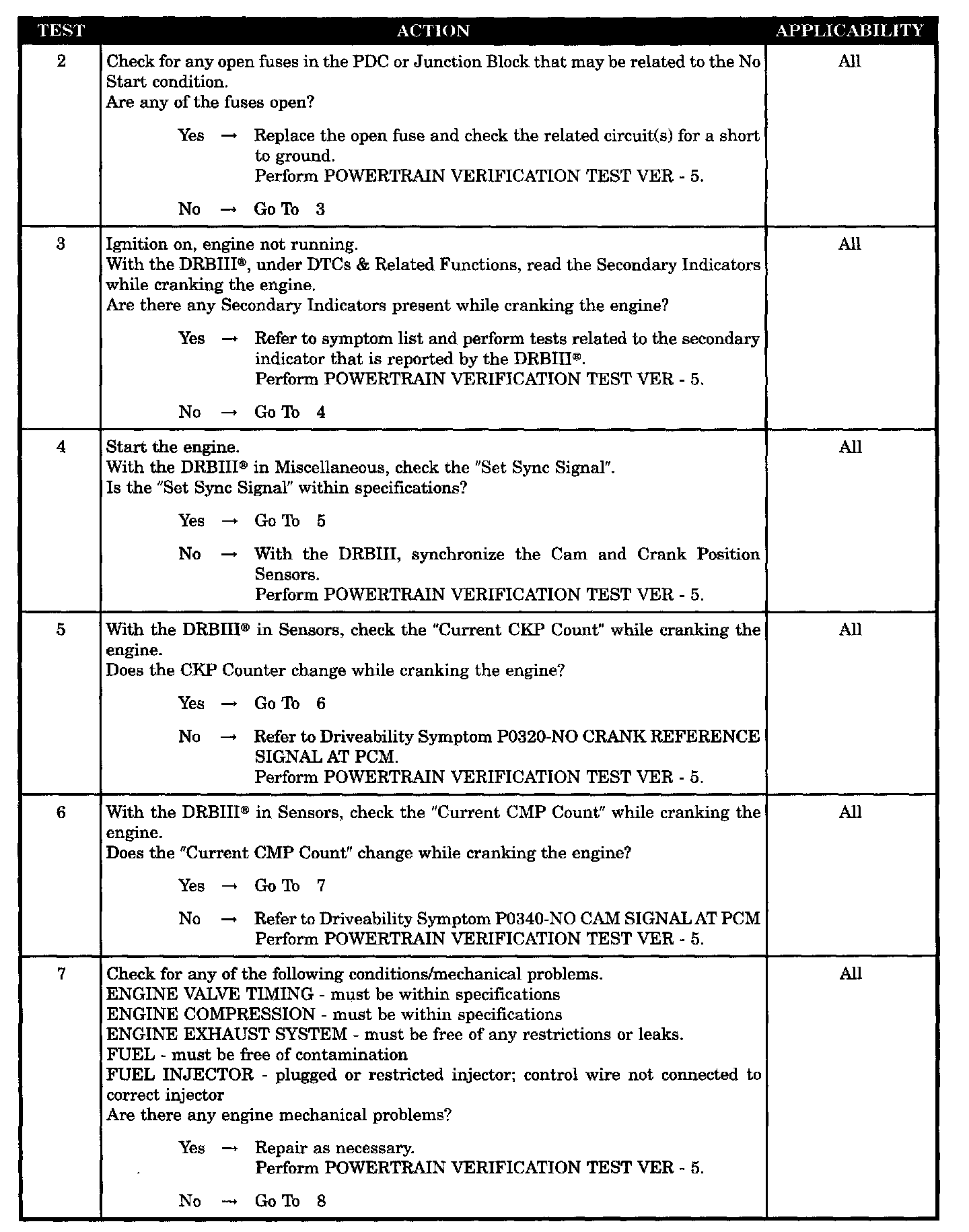

Tests 2 - 7:

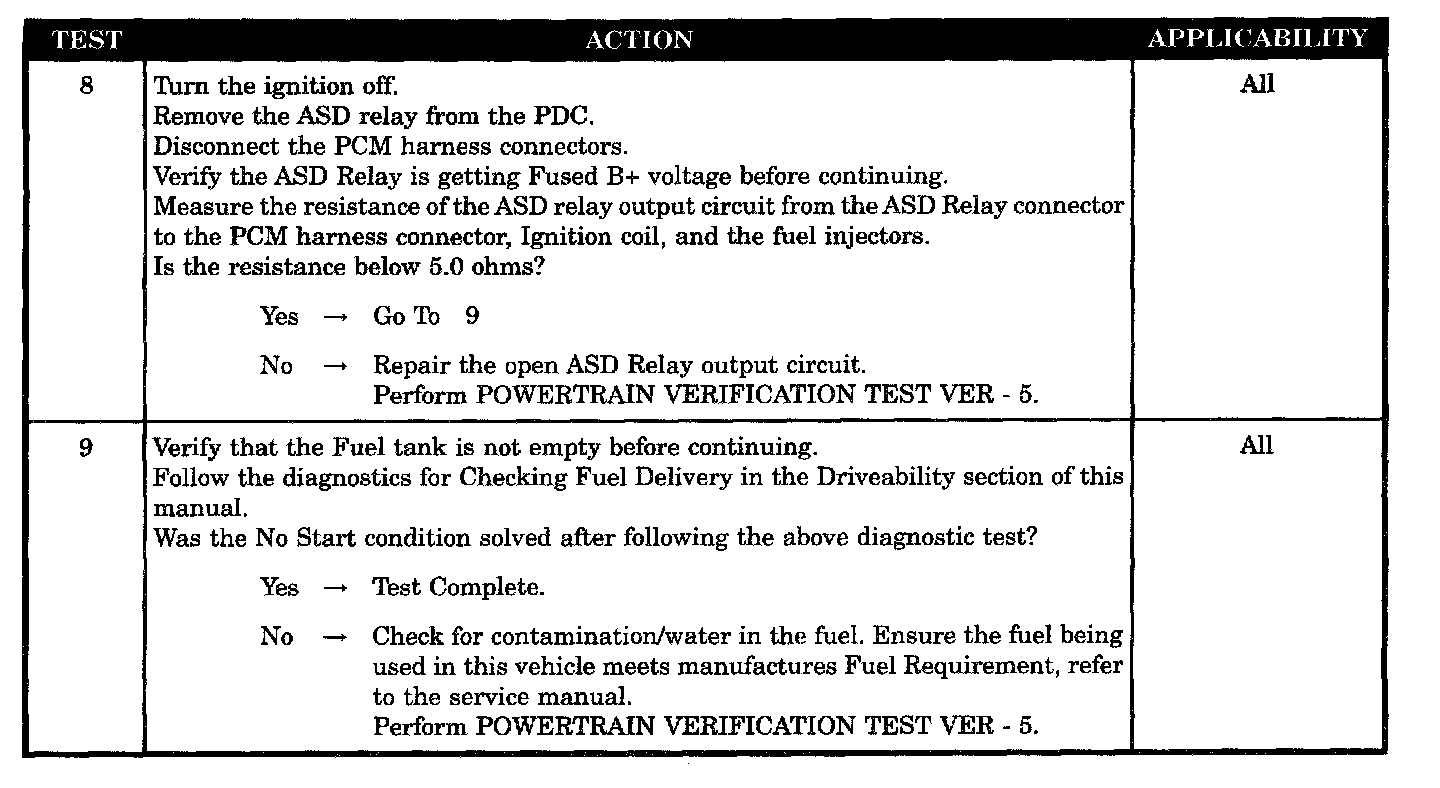

Tests 8 - 9:

SYMPTOM
ENGINE CRANKS DOES NOT START

POSSIBLE CAUSES
- No start pre-test
- Powertrain fuses open
- Secondary indicators present
- Set SYNC specification
- No CKP sensor signal when cranking engine
- No CMP sensor signal when cranking engine
- Engine mechanical problem
- ASD relay output circuit open
- Fuel contamination
