Checking the PCM Power and Ground Circuits

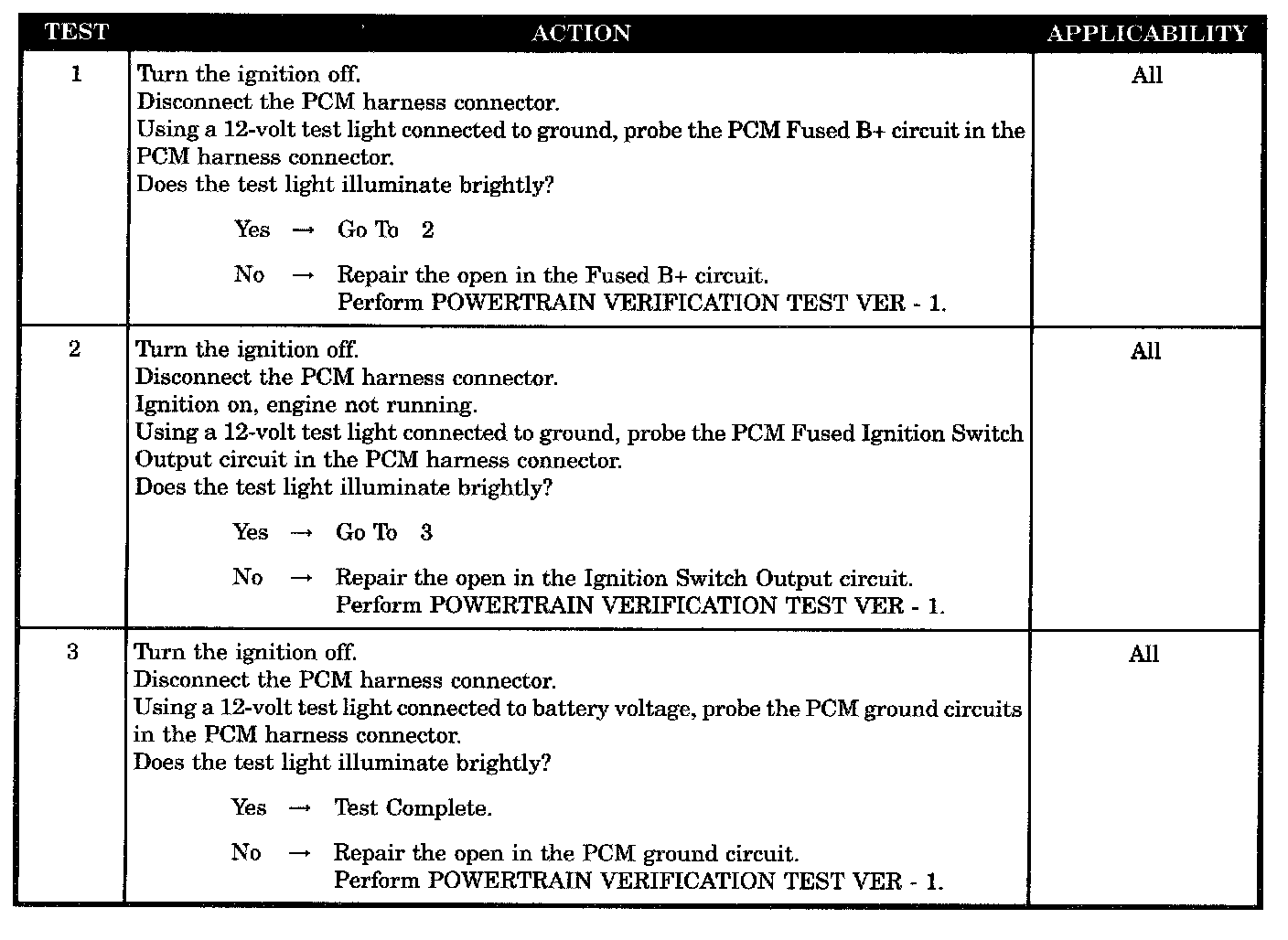

Tests 1 - 3:




SYMPTOM
CHECKING THE PCM POWER AND GROUNDS

POSSIBLE CAUSES
- PCM fused B+ circuit
- PCM fused ignition switch output circuit
- PCM ground circuits
