Checking Minimum Idle Airflow

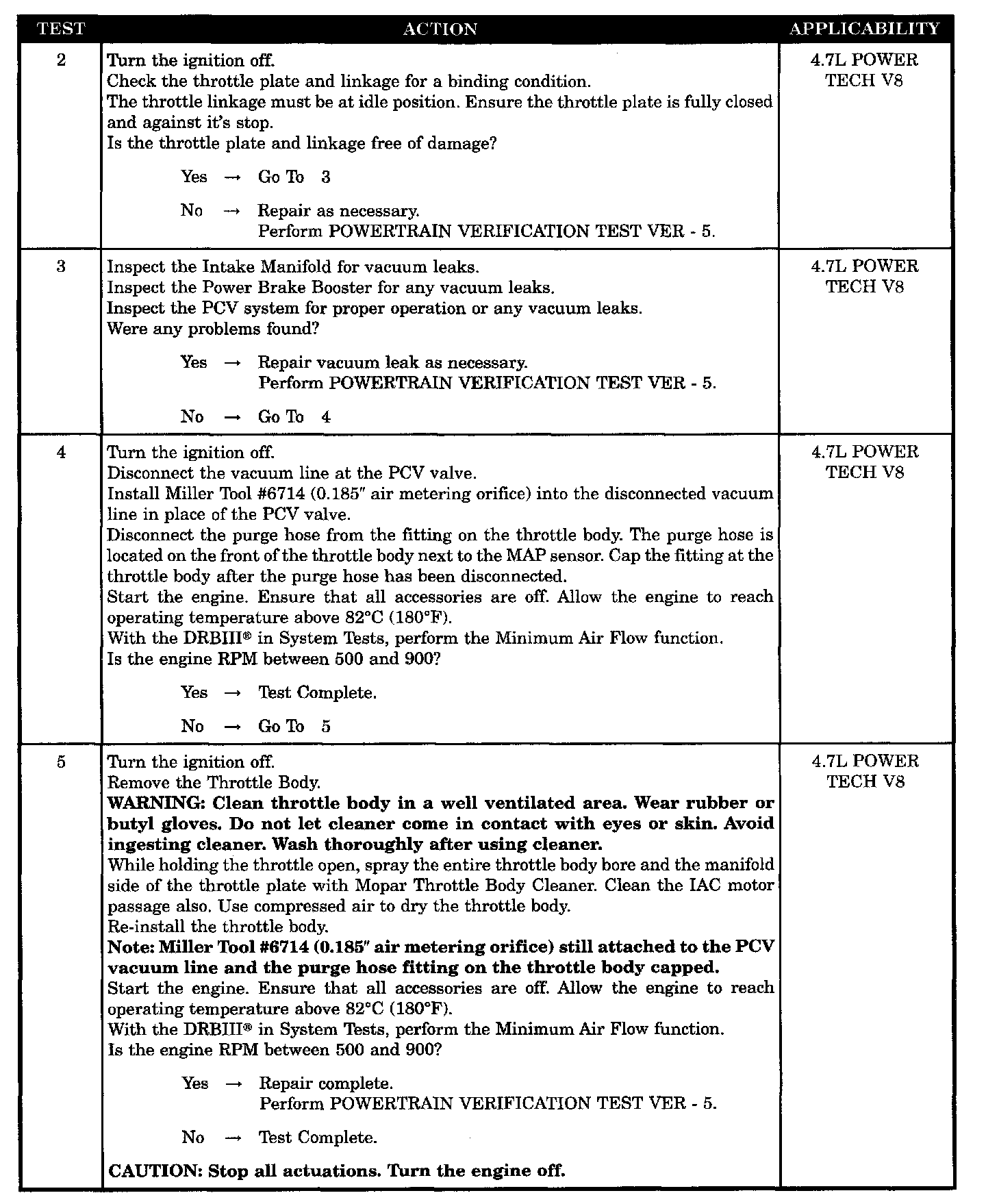

Tests 2 - 5:




SYMPTOM
CHECKING MINIMUM AIRFLOW

POSSIBLE CAUSES
- Checking the minimum airflow
- Throttle plate/linkage binding
- Vacuum leak
- Throttle body
- Throttle body dirty
