Checking Evaporative Emission System

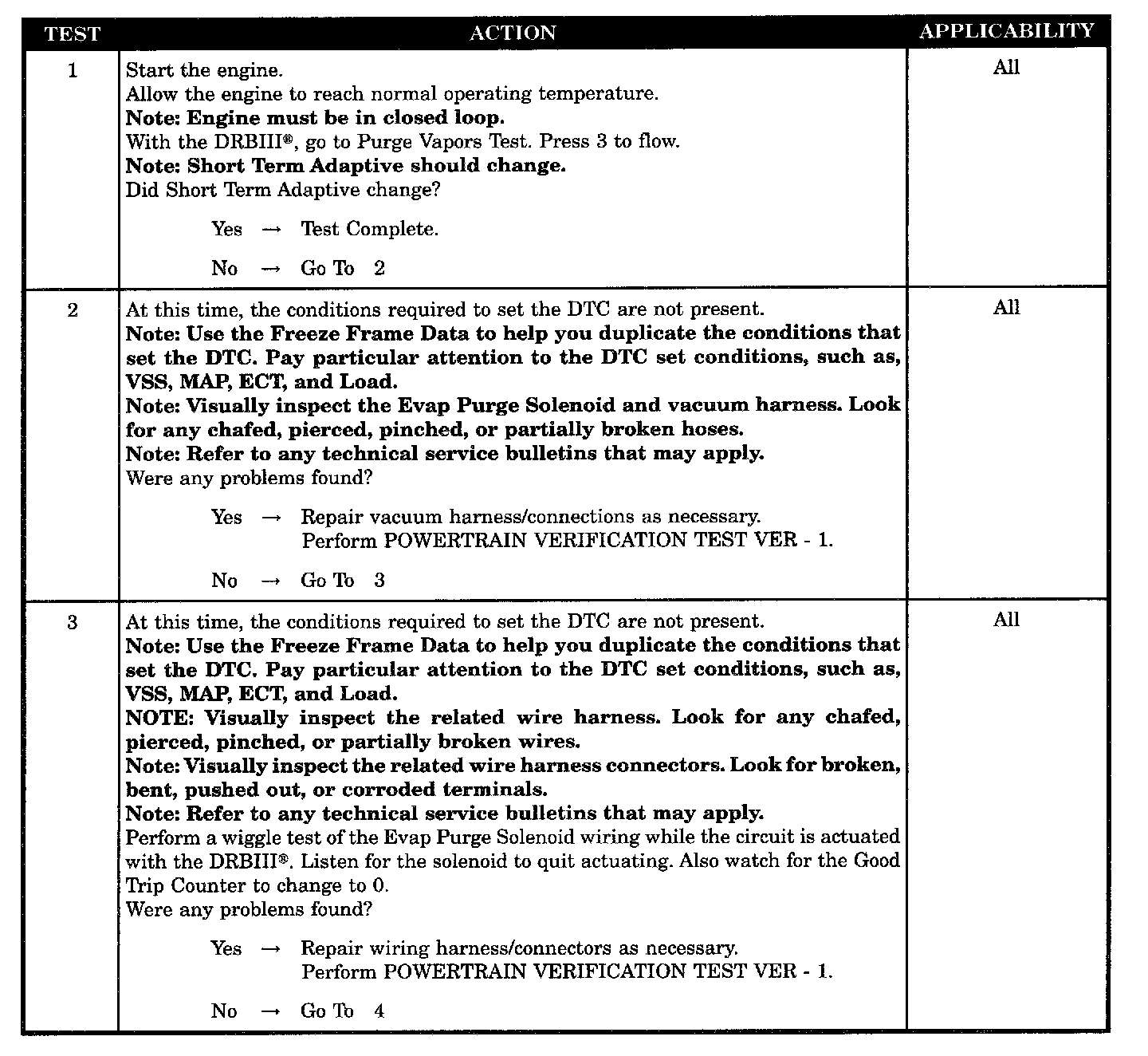

Tests 1 - 3:




Tests 4 - 5:




SYMPTOM
CHECKING EVAPORATIVE EMISSION OPERATION WITH NO DTCS

POSSIBLE CAUSES
- Purge system contaminated
- Rollover valve
- Vacuum harness intermittent
- Wiring harness intermittent
