Jeep
>>
2002
>>
Grand Cherokee 2WD Laredo V8-4.7L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Figure 15
Figure 15

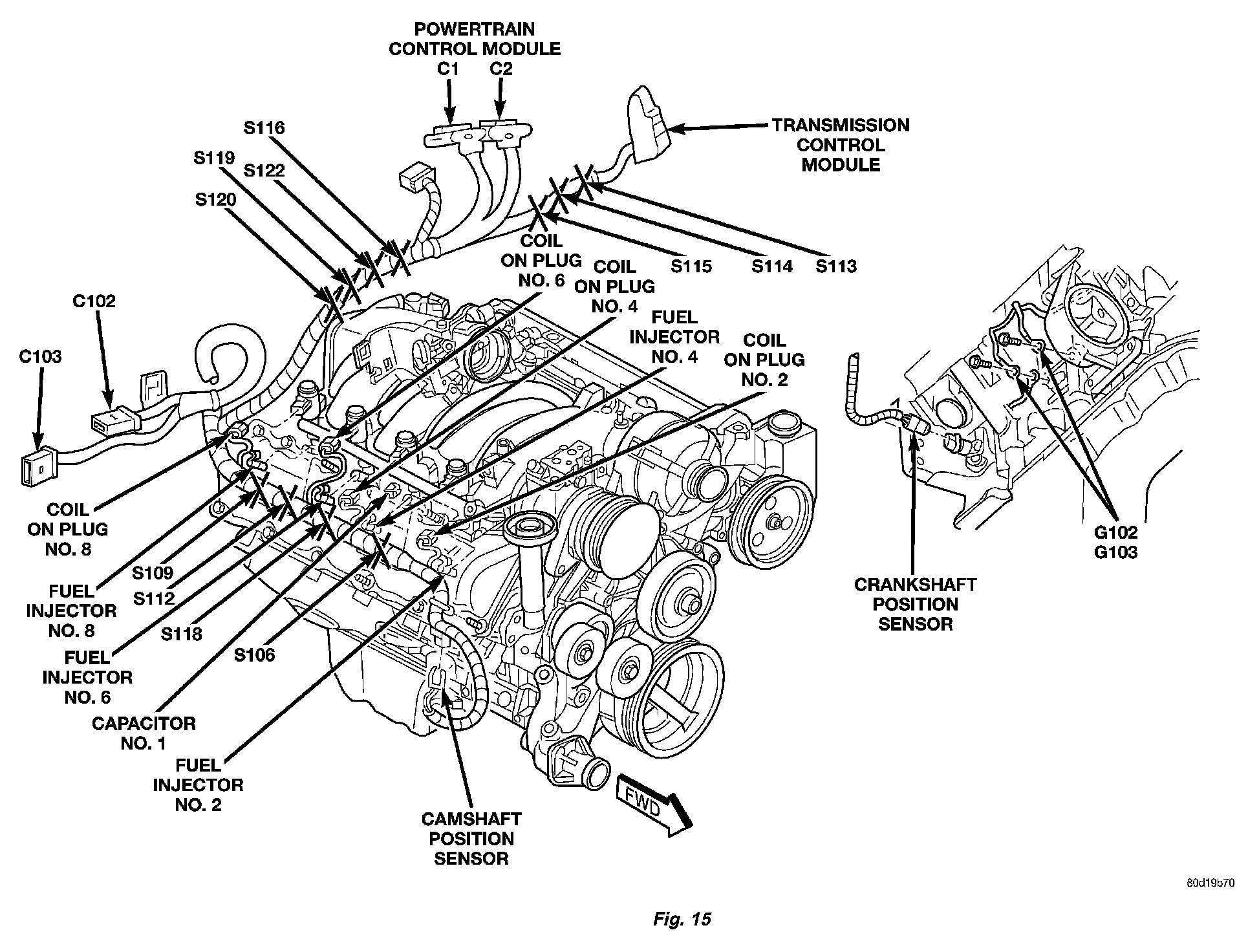

Fig.15 4.7 Liter Engine Right Front RHD:
