Wiring Diagrams

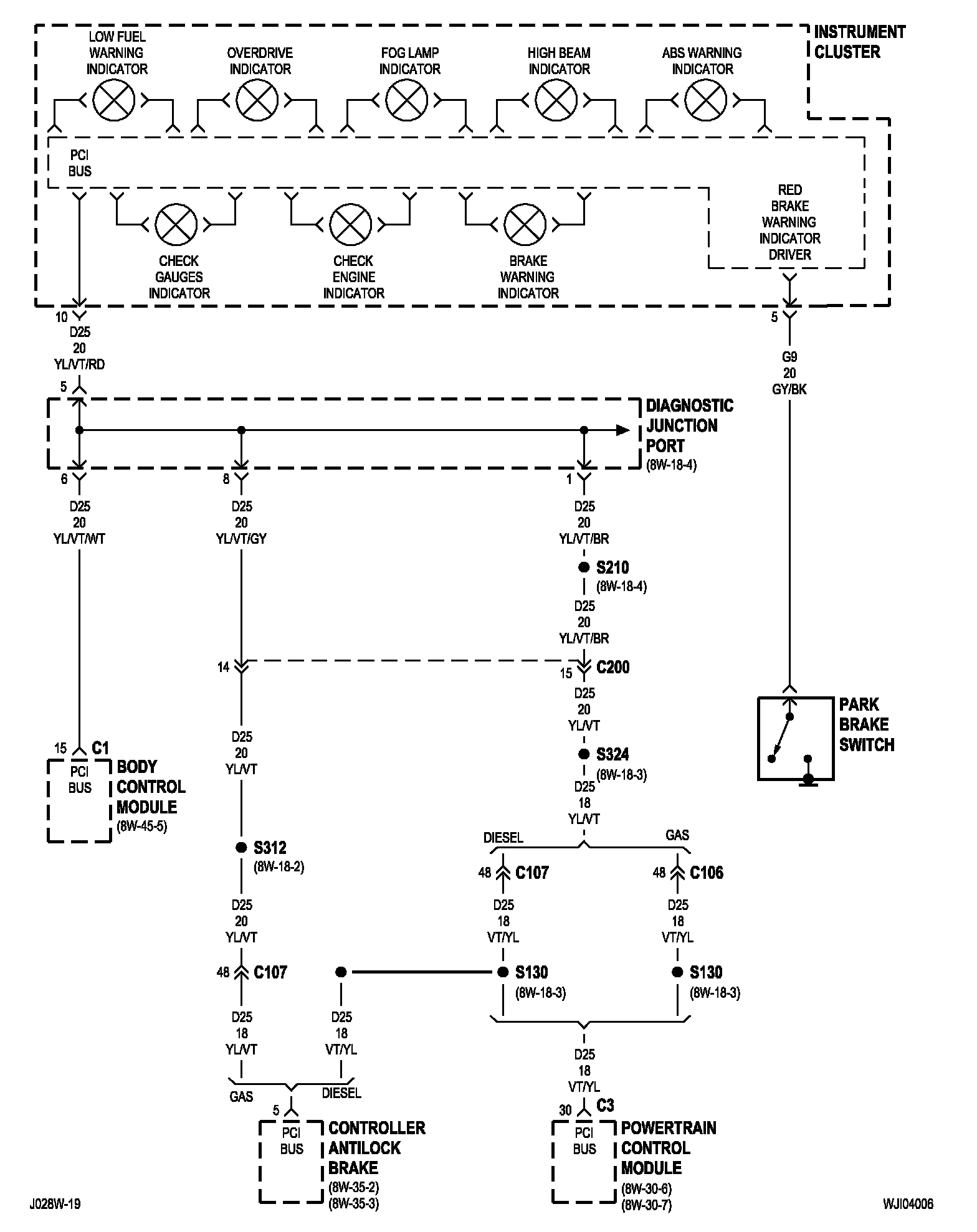

8w-40-2:

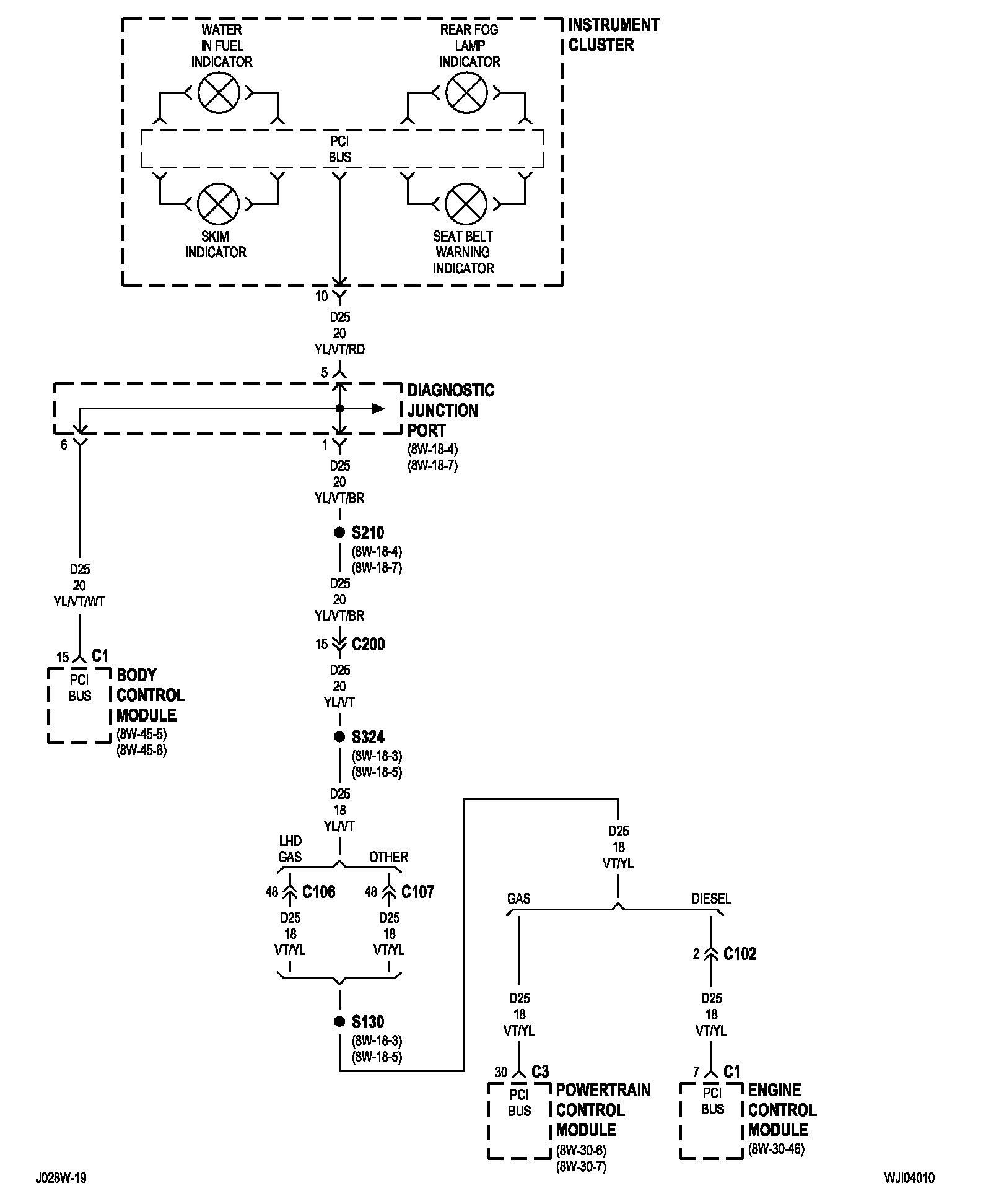

8w-40-3:

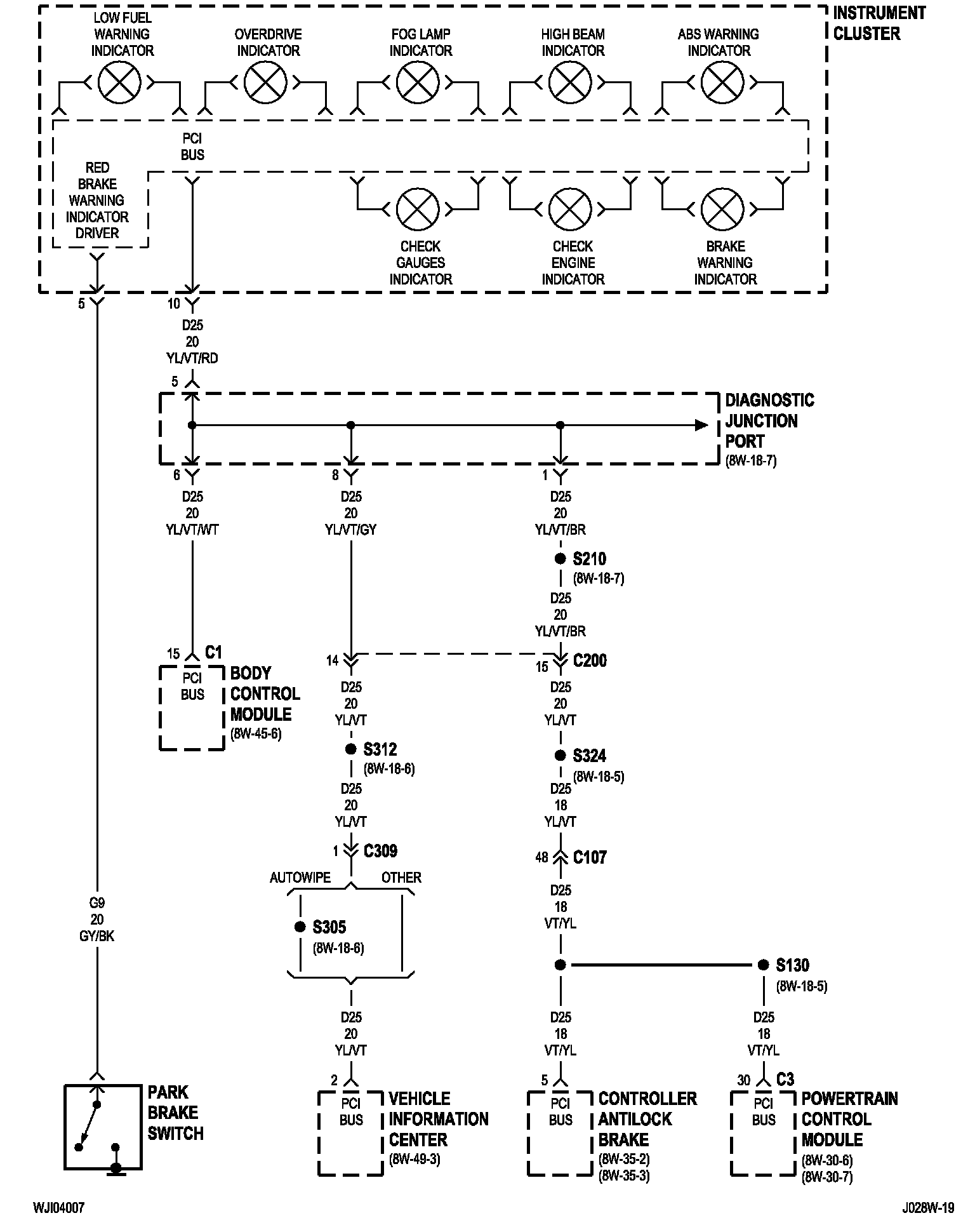

8w-40-4 (LHD):

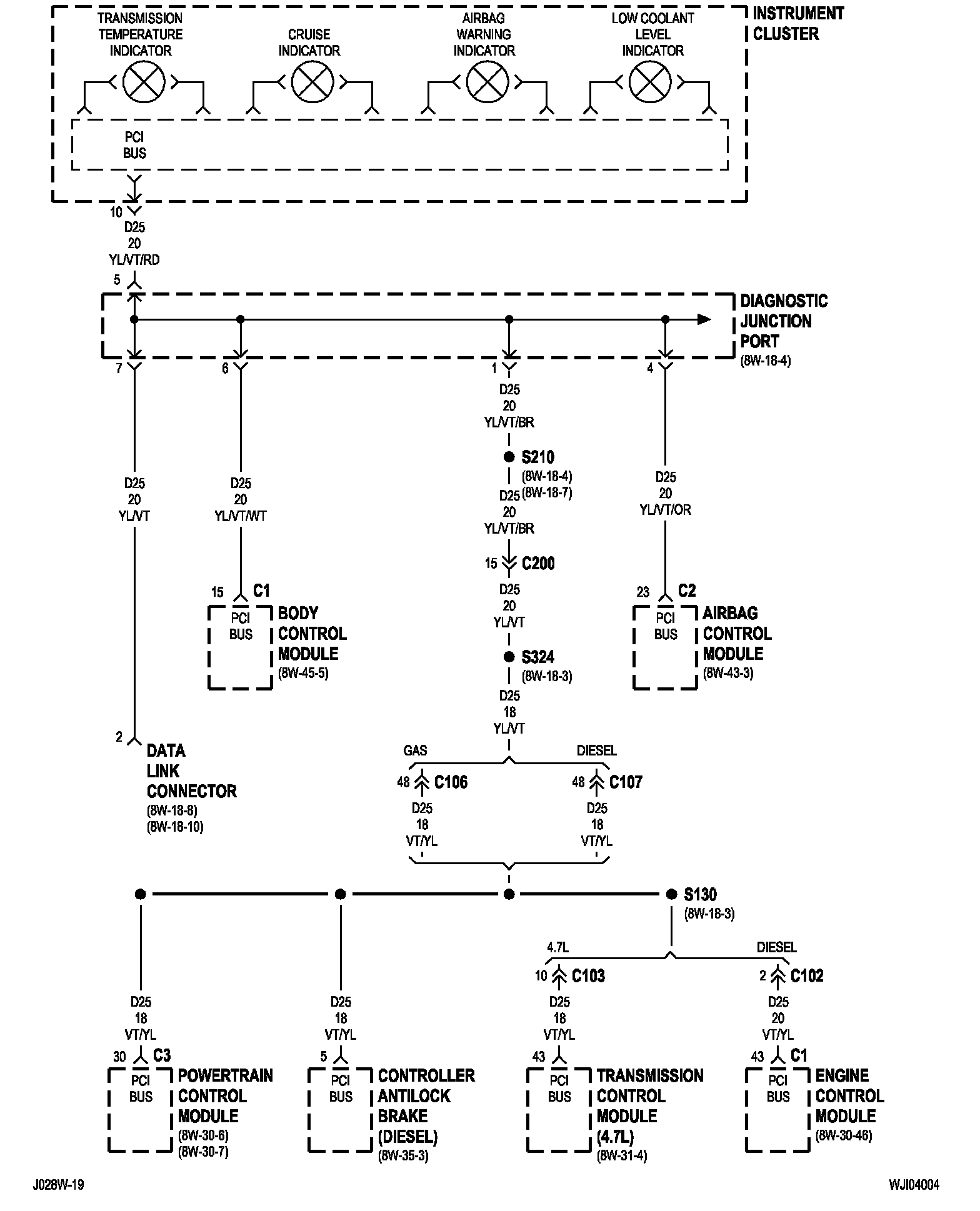

8w-40-5 (RHD):

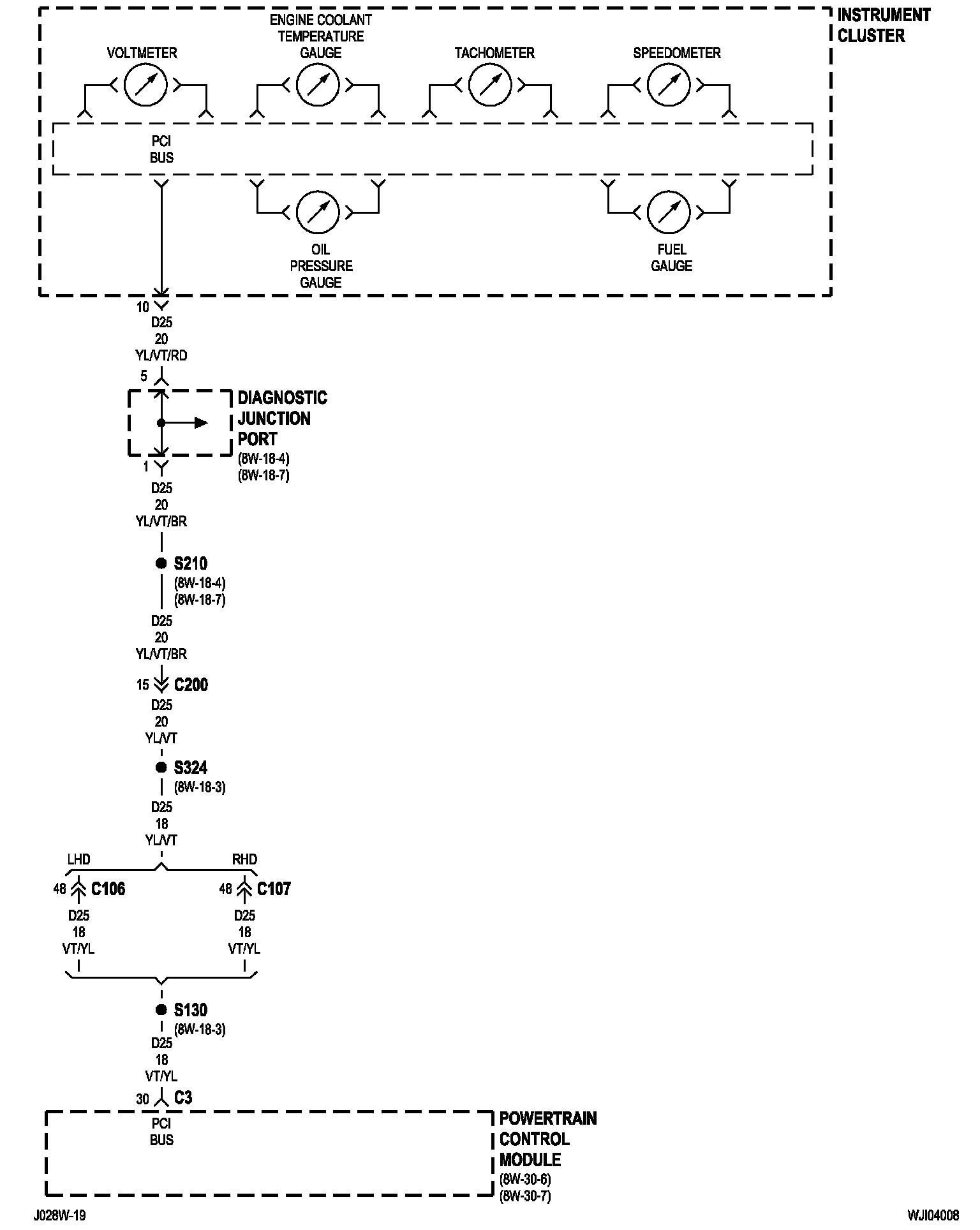

8w-40-6 (LHD):

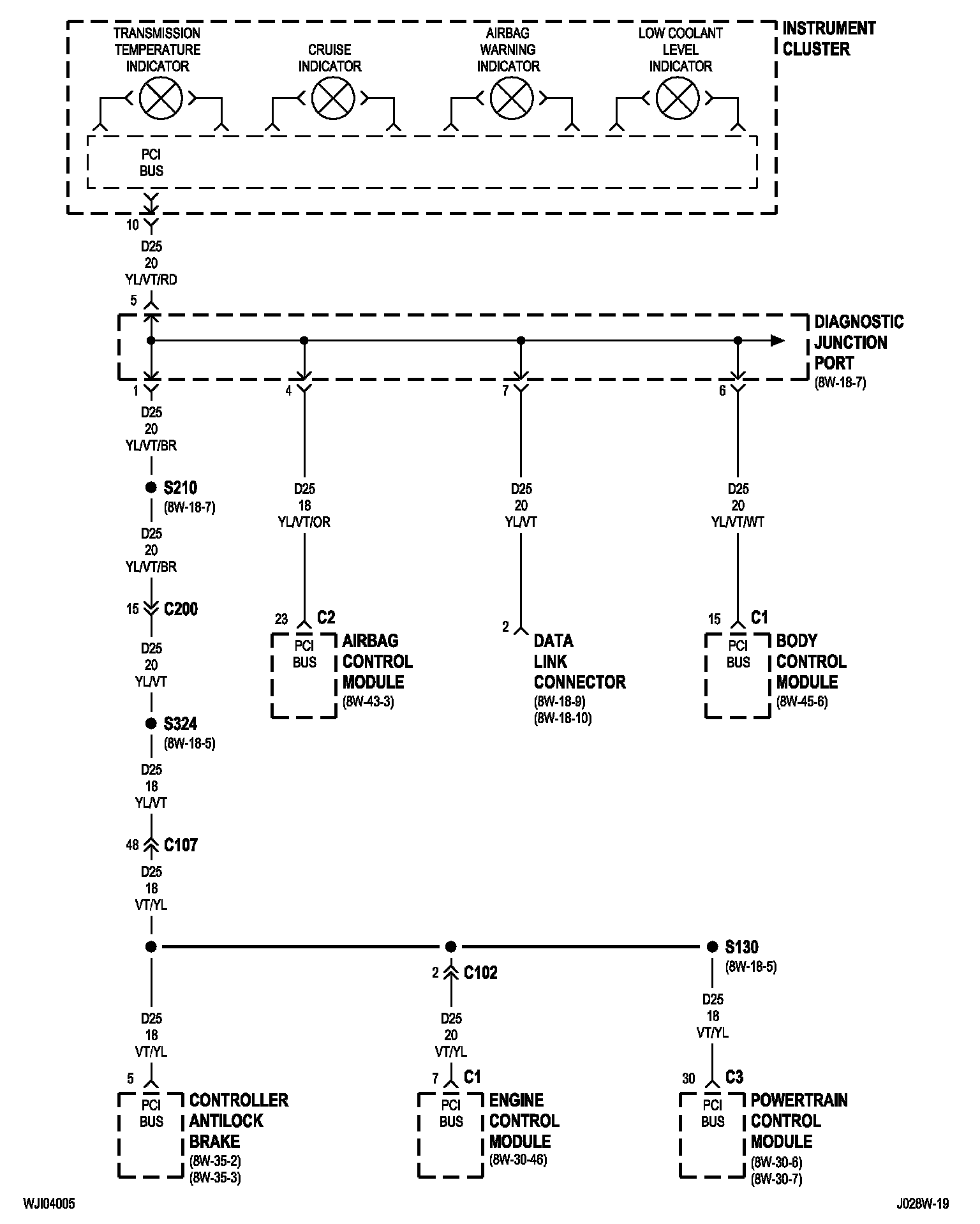

8w-40-7 (RHD):

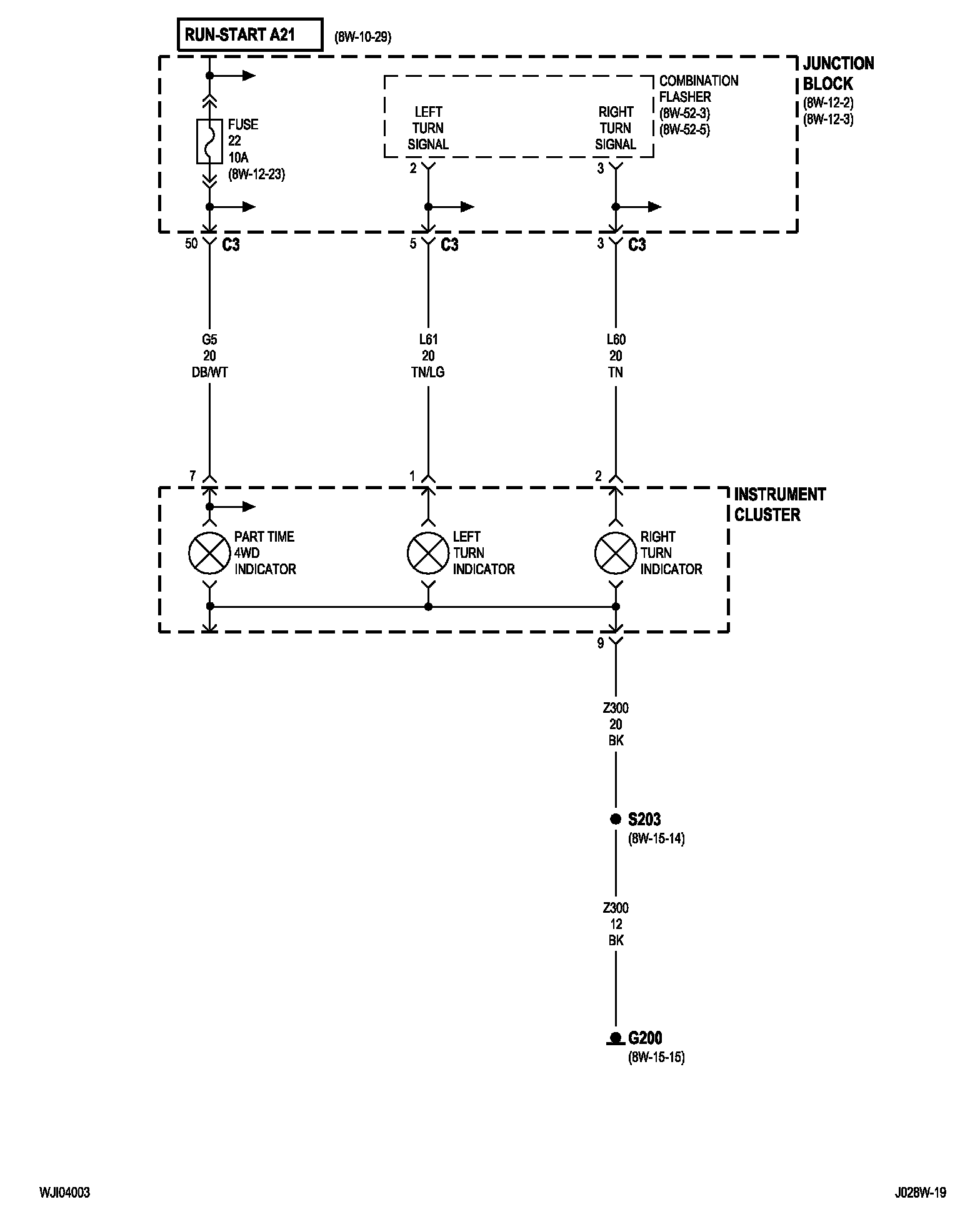

8w-40-8:

8w-40-10:

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams. Electrical Diagrams
