Electrical Diagrams

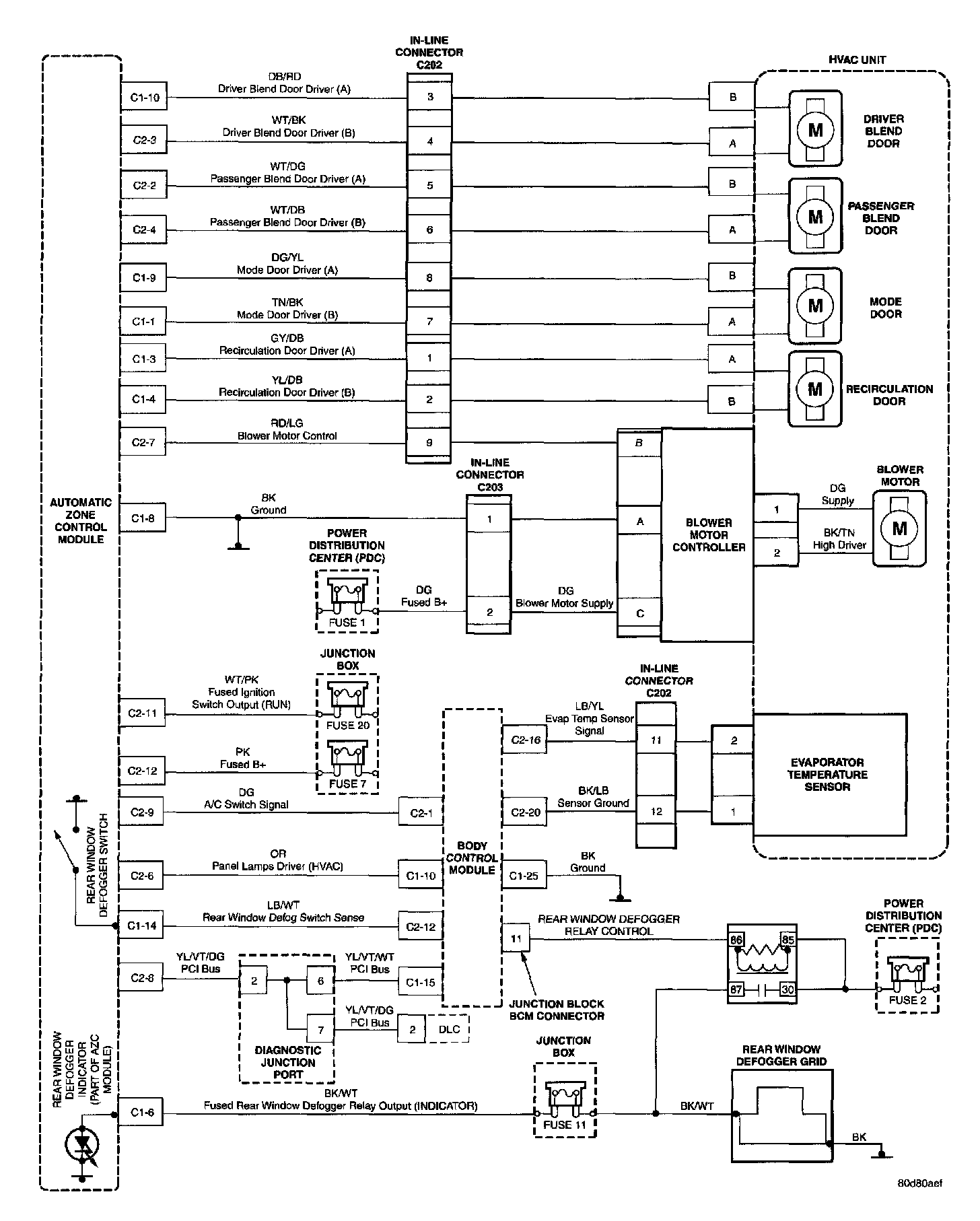

Automatic Zone Control - LHD:

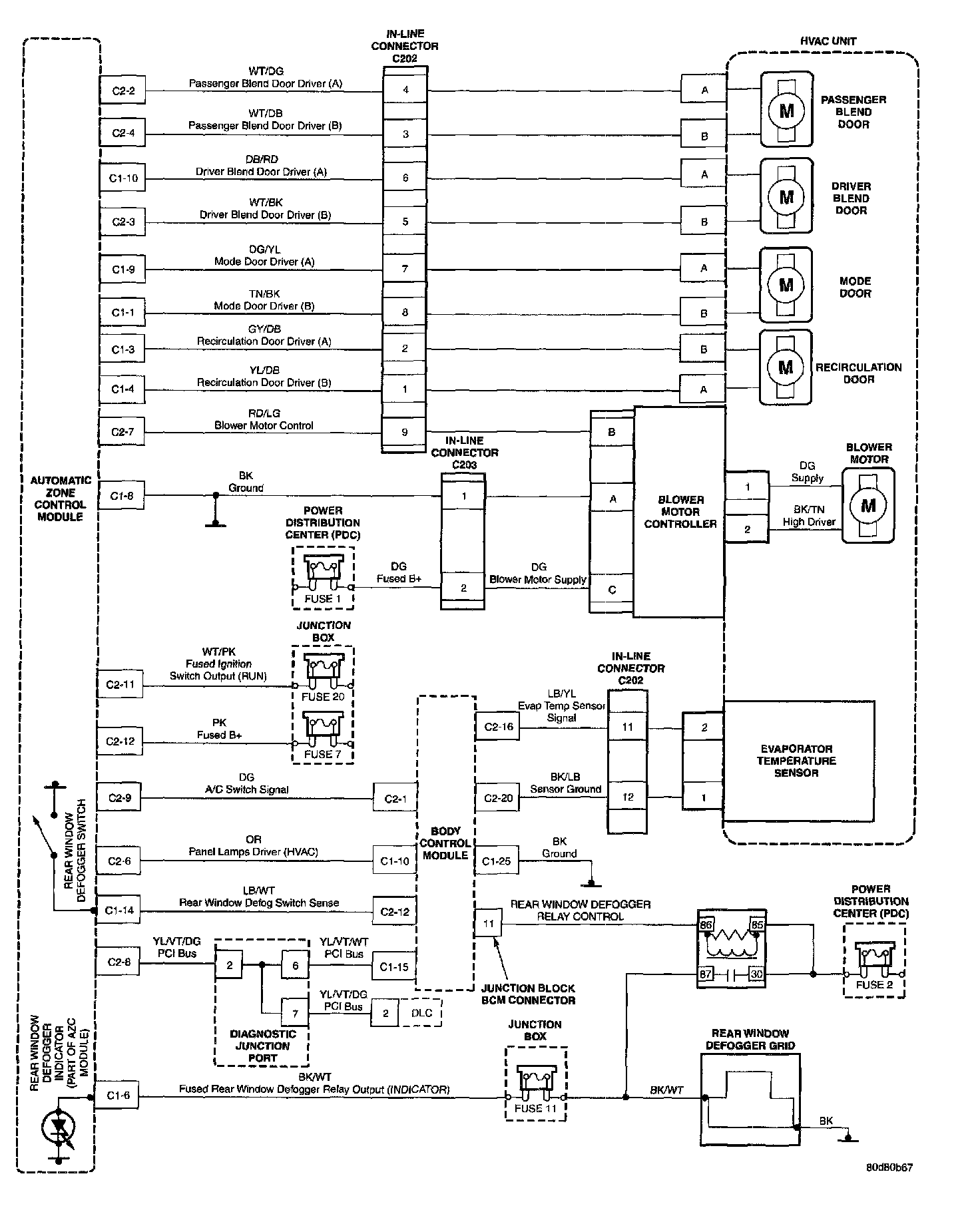

Automatic Zone Control - RHD:




Manual Temperature Control:
