Wiring Diagrams

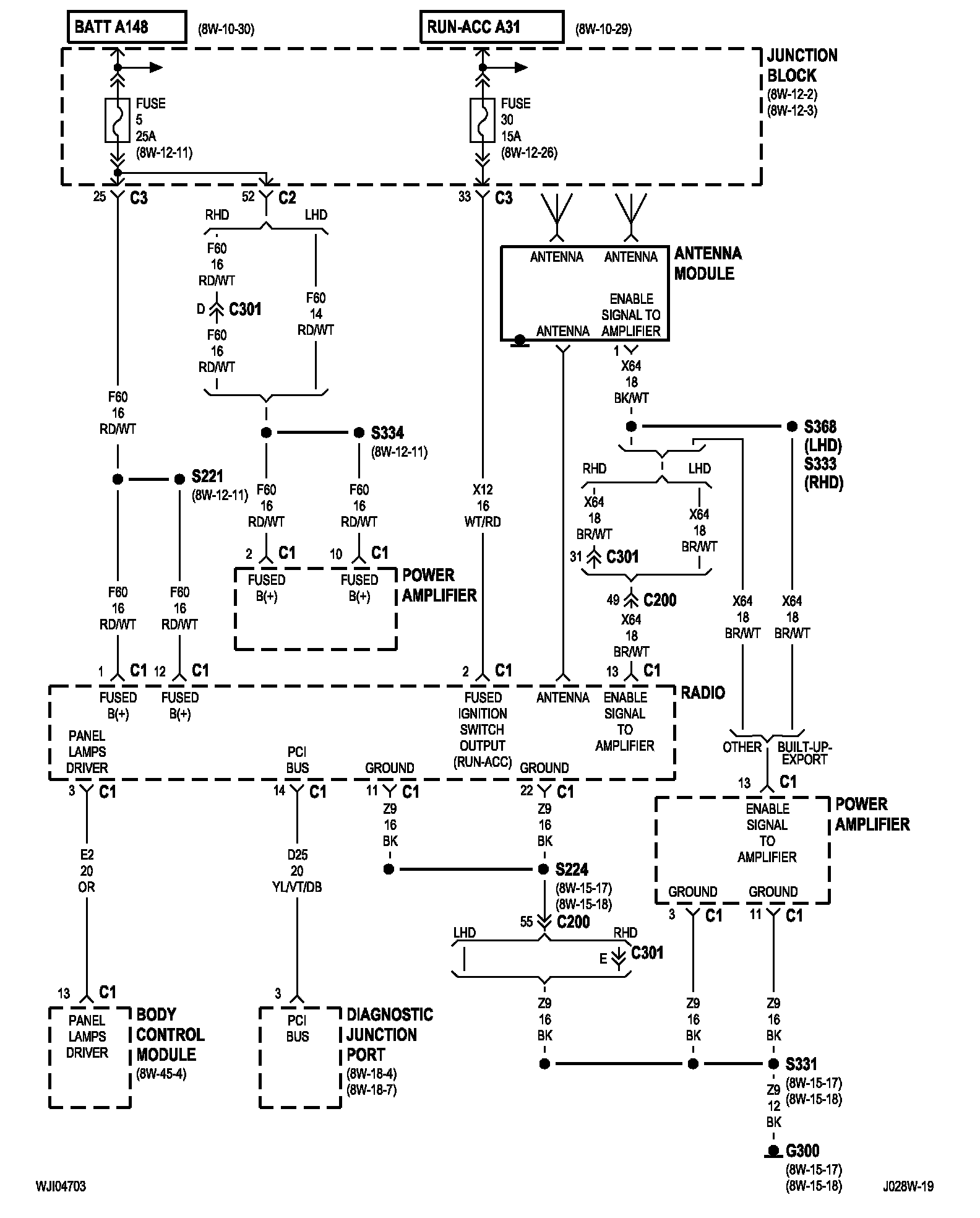

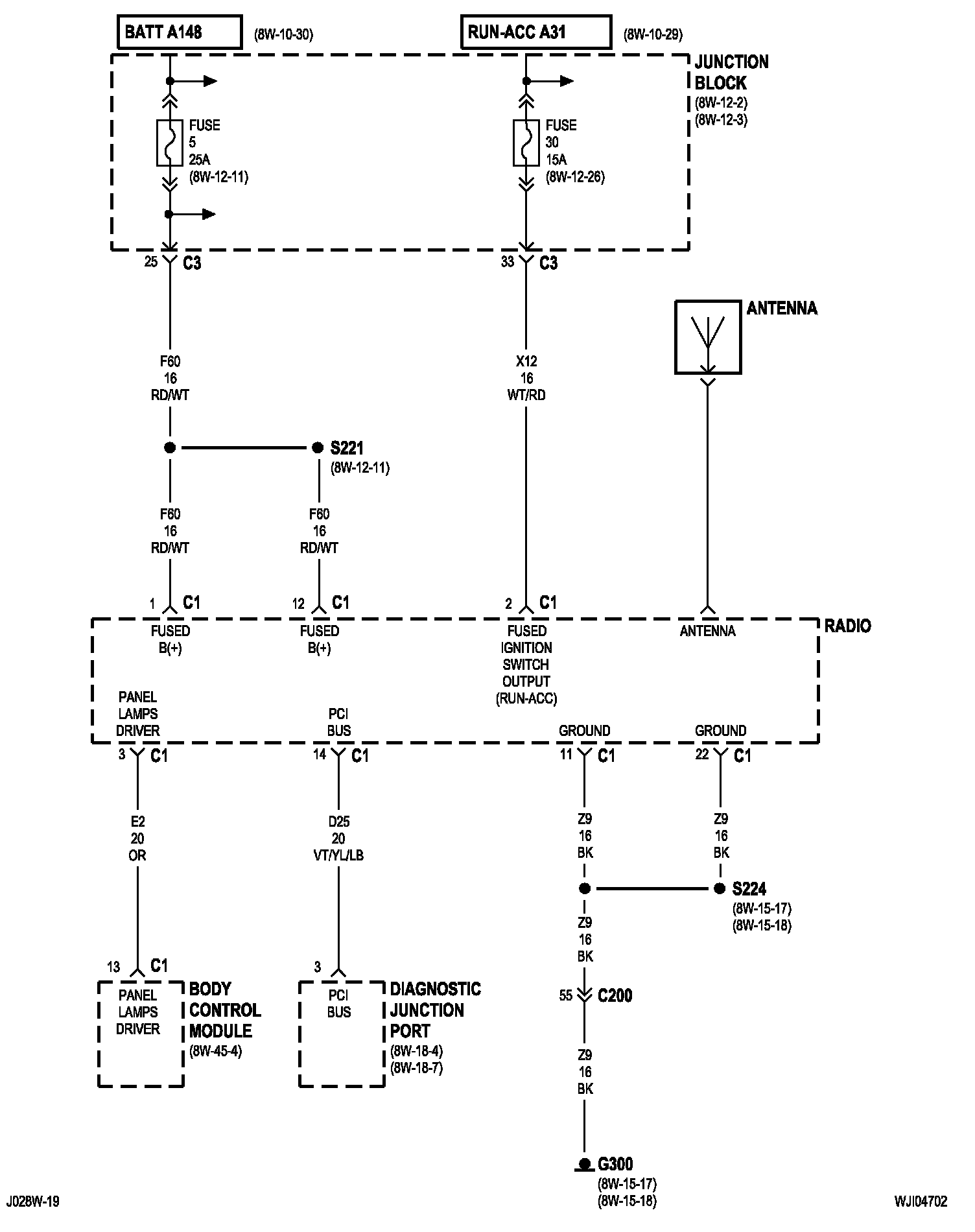

8w-47-2 (Base):

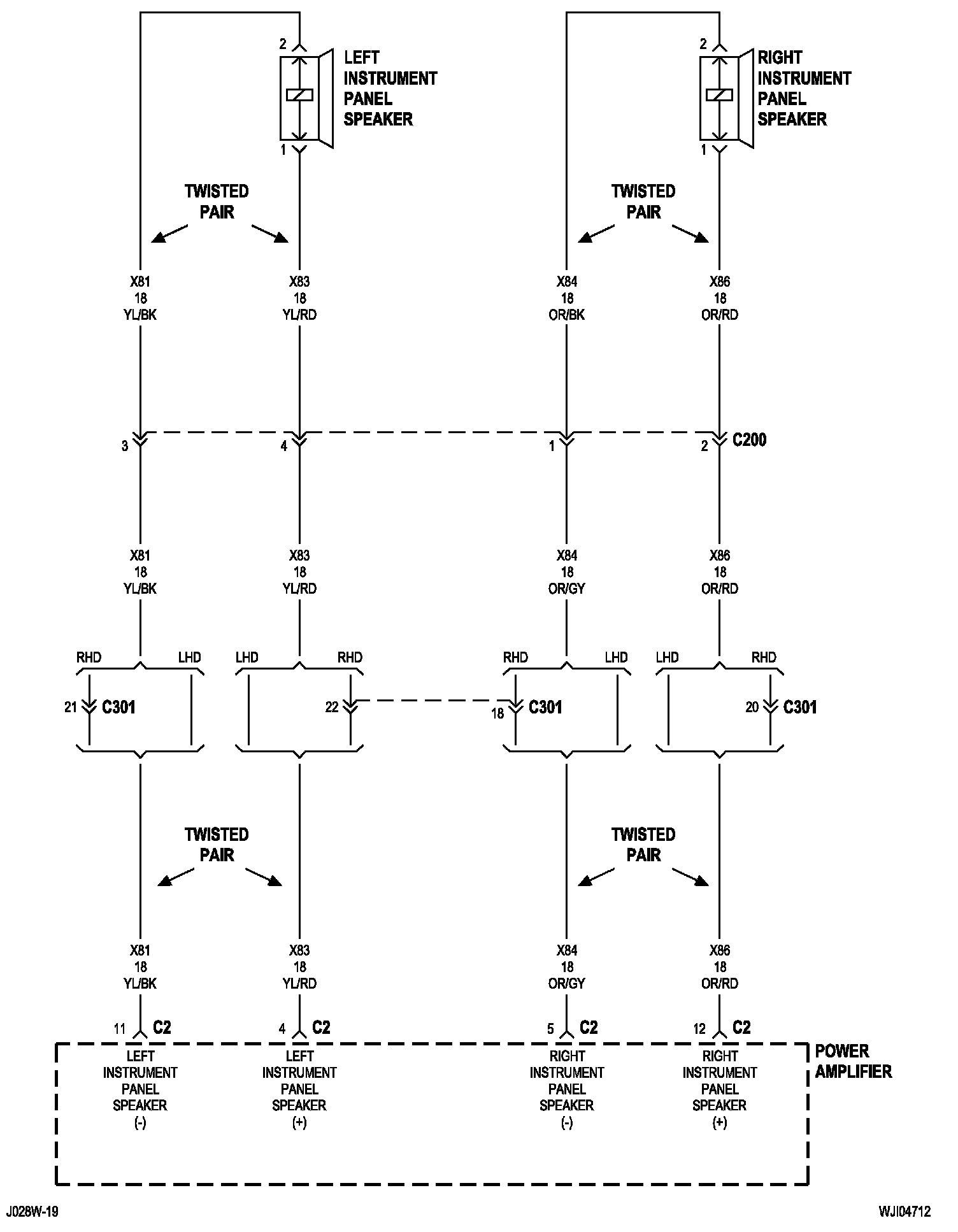

8w-47-3 (Premium):

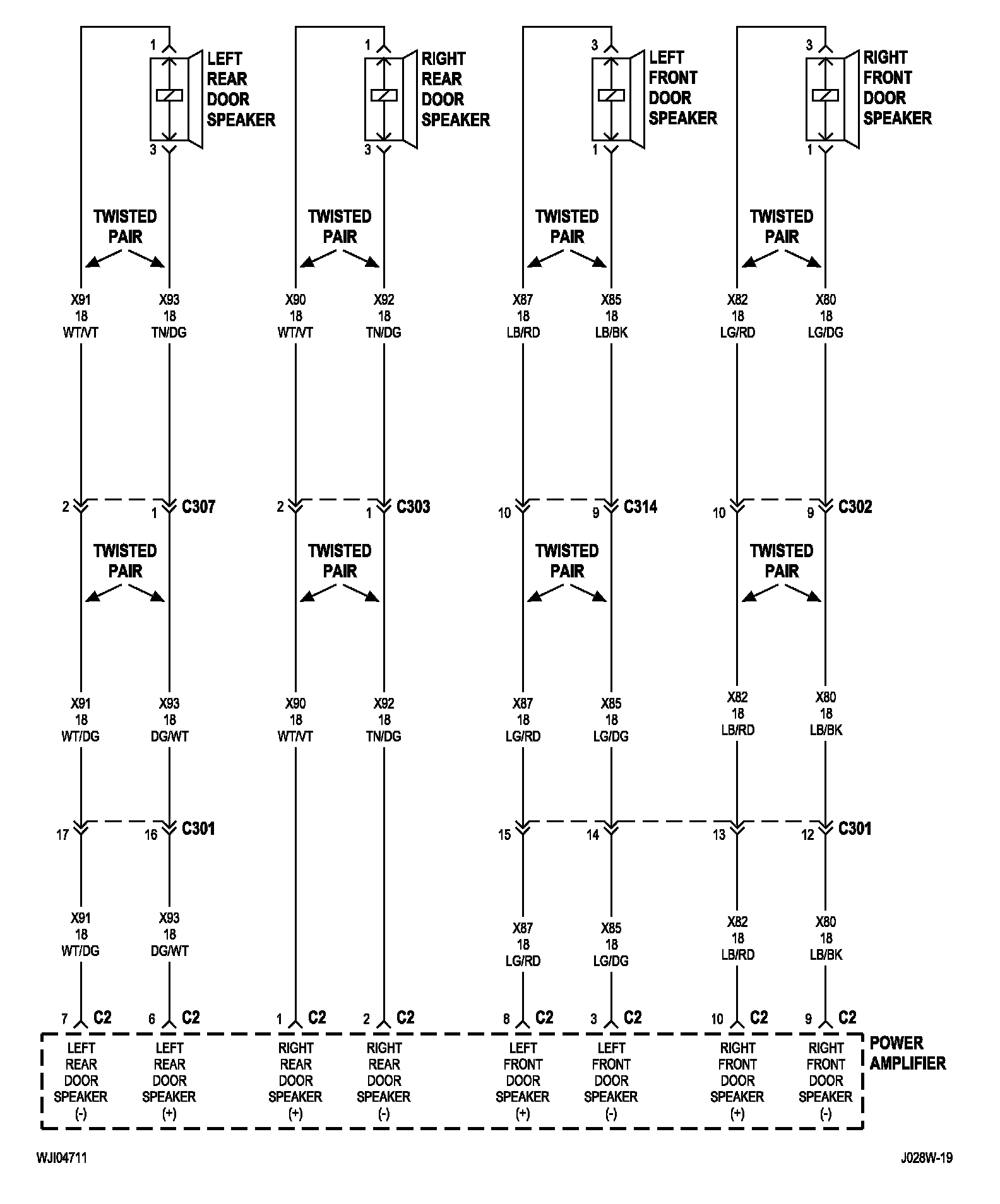

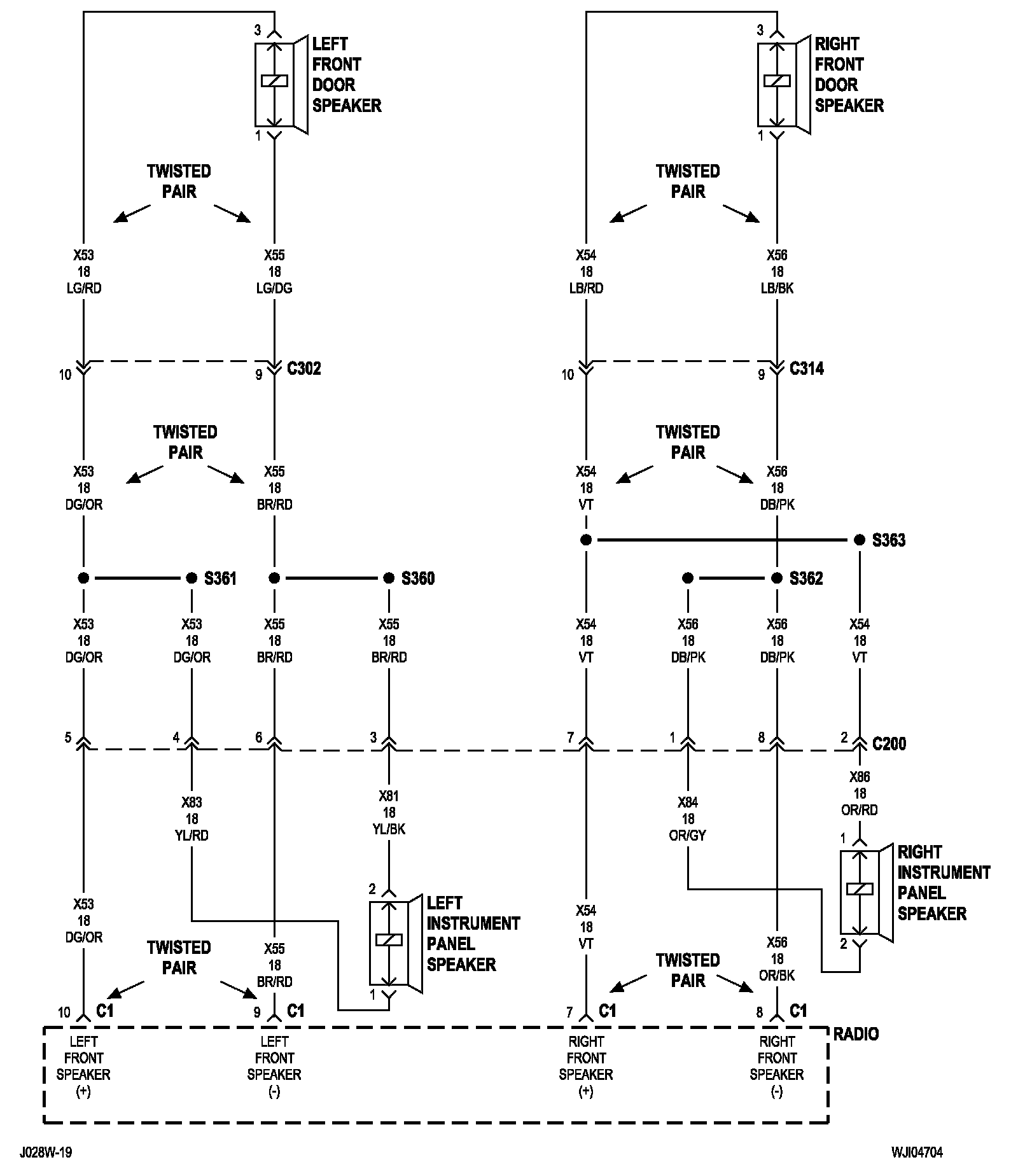

8w-47-4 (Base):

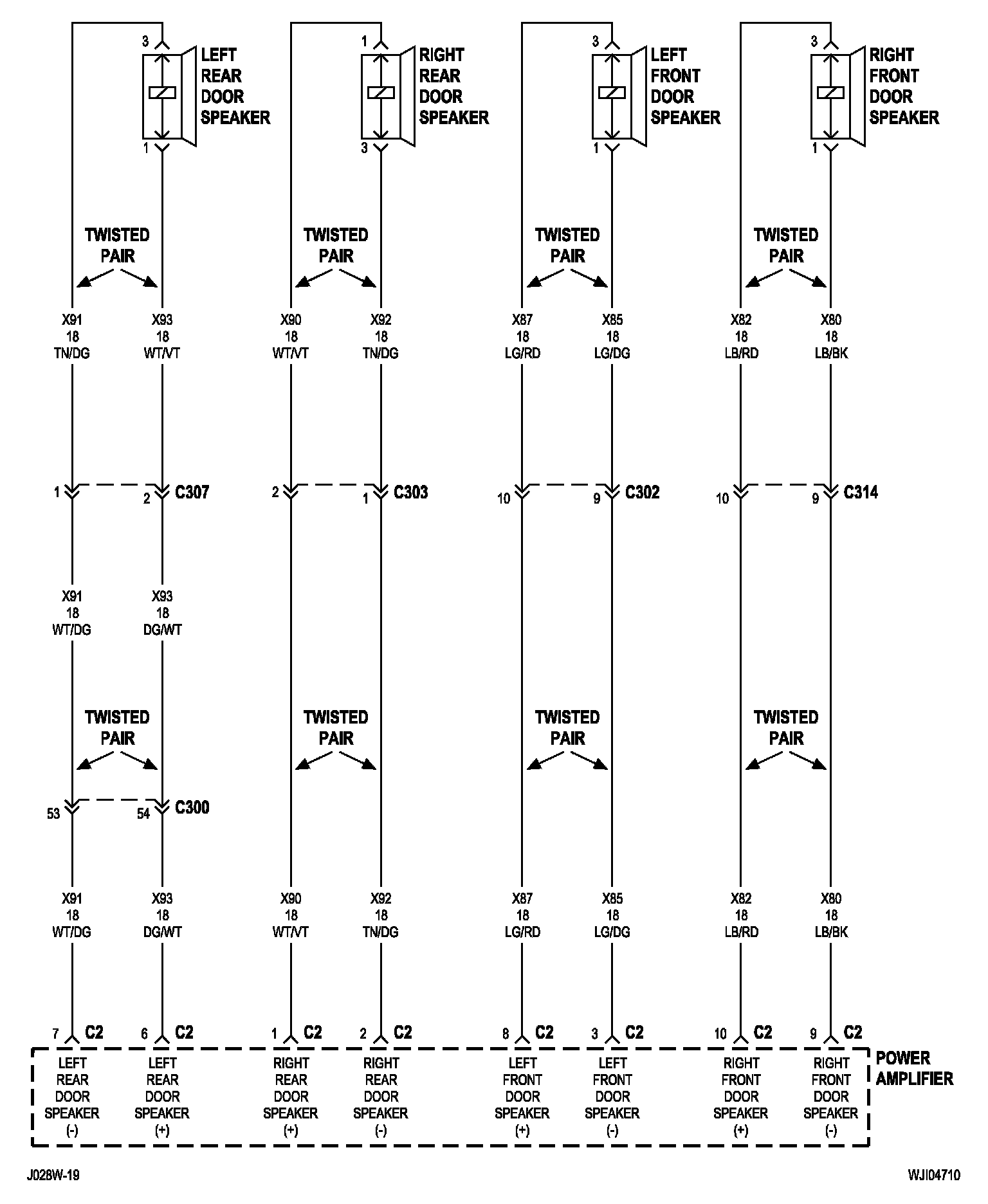

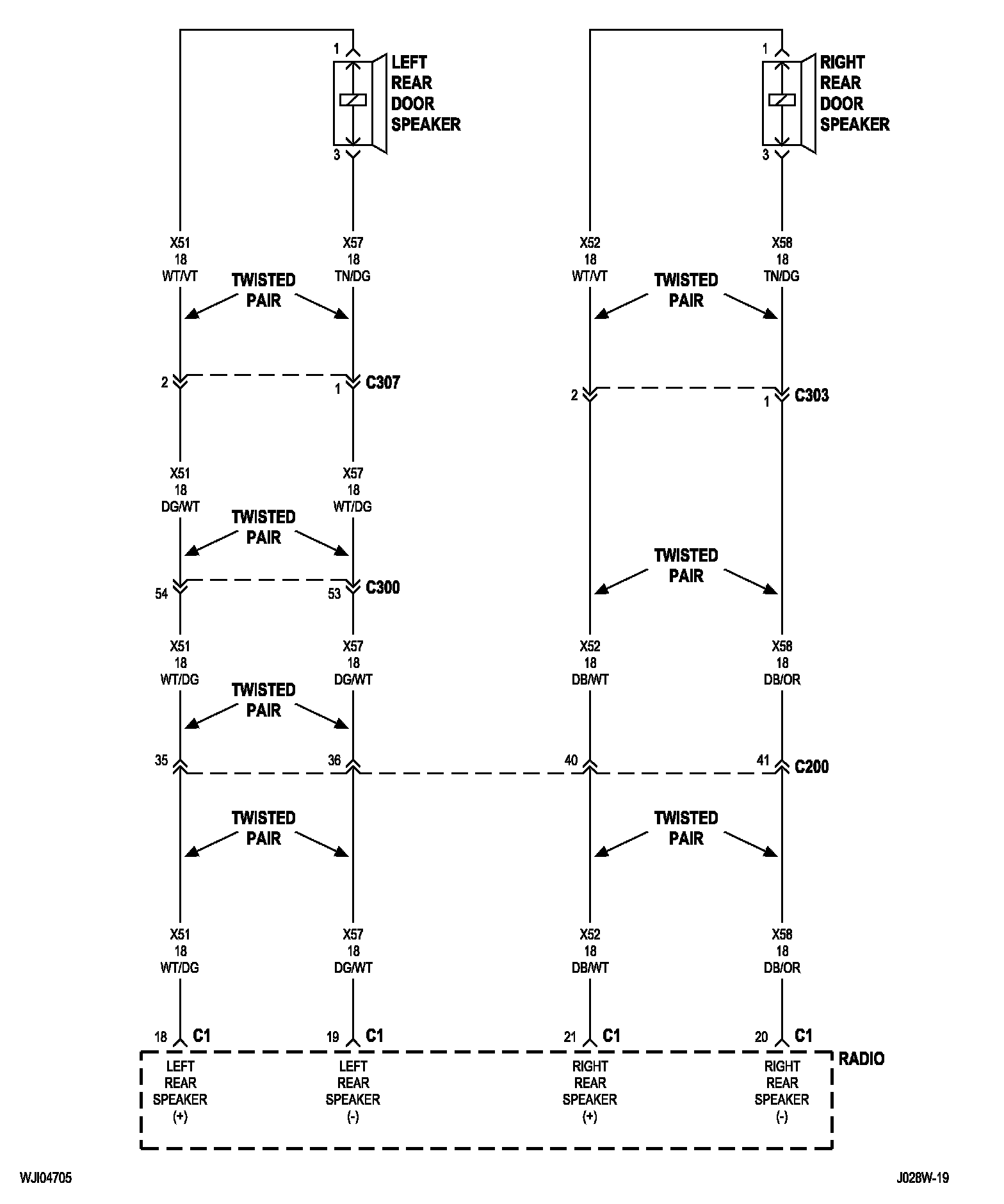

8w-47-5 (Base):

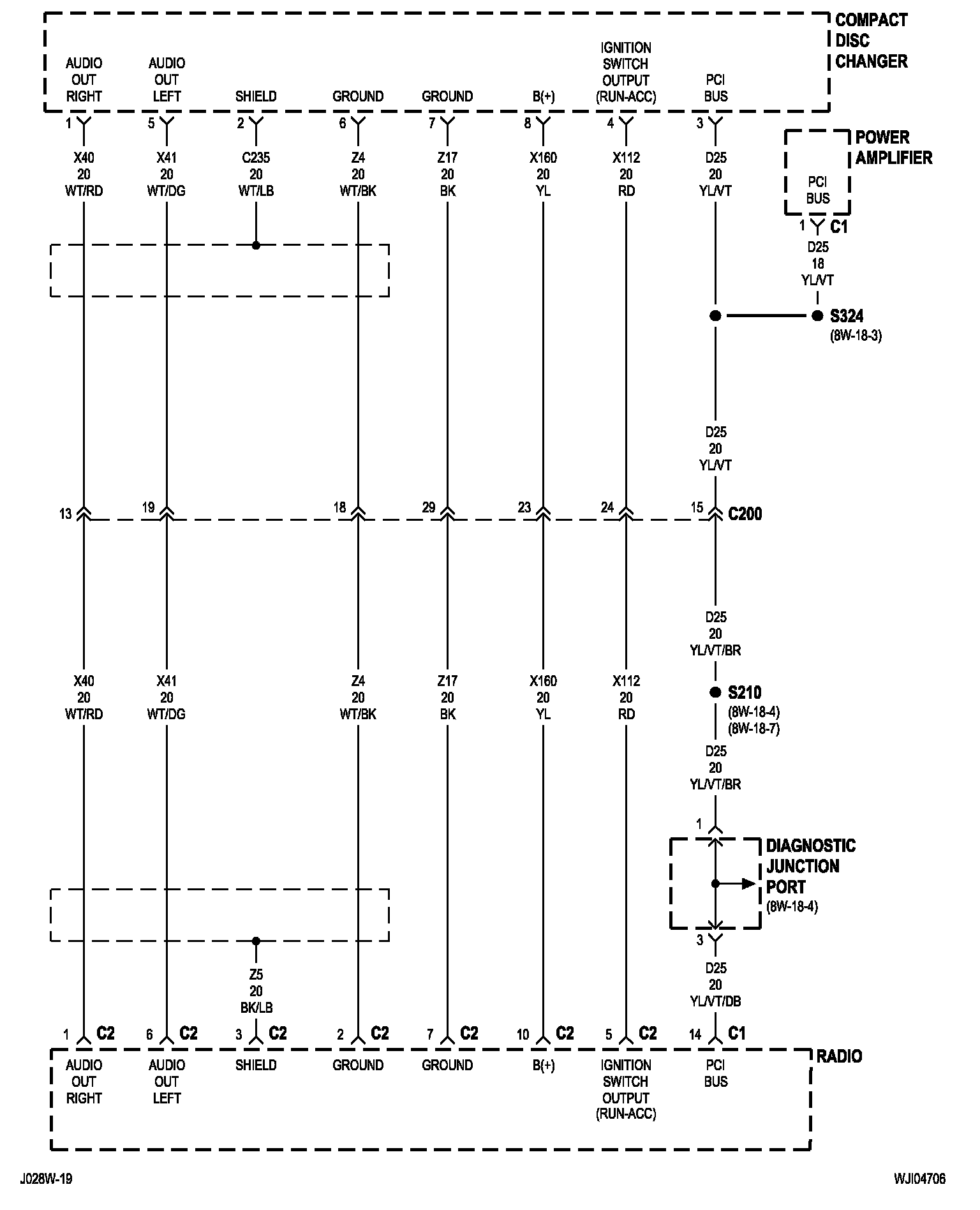

8w-47-5 (LHD Premium):

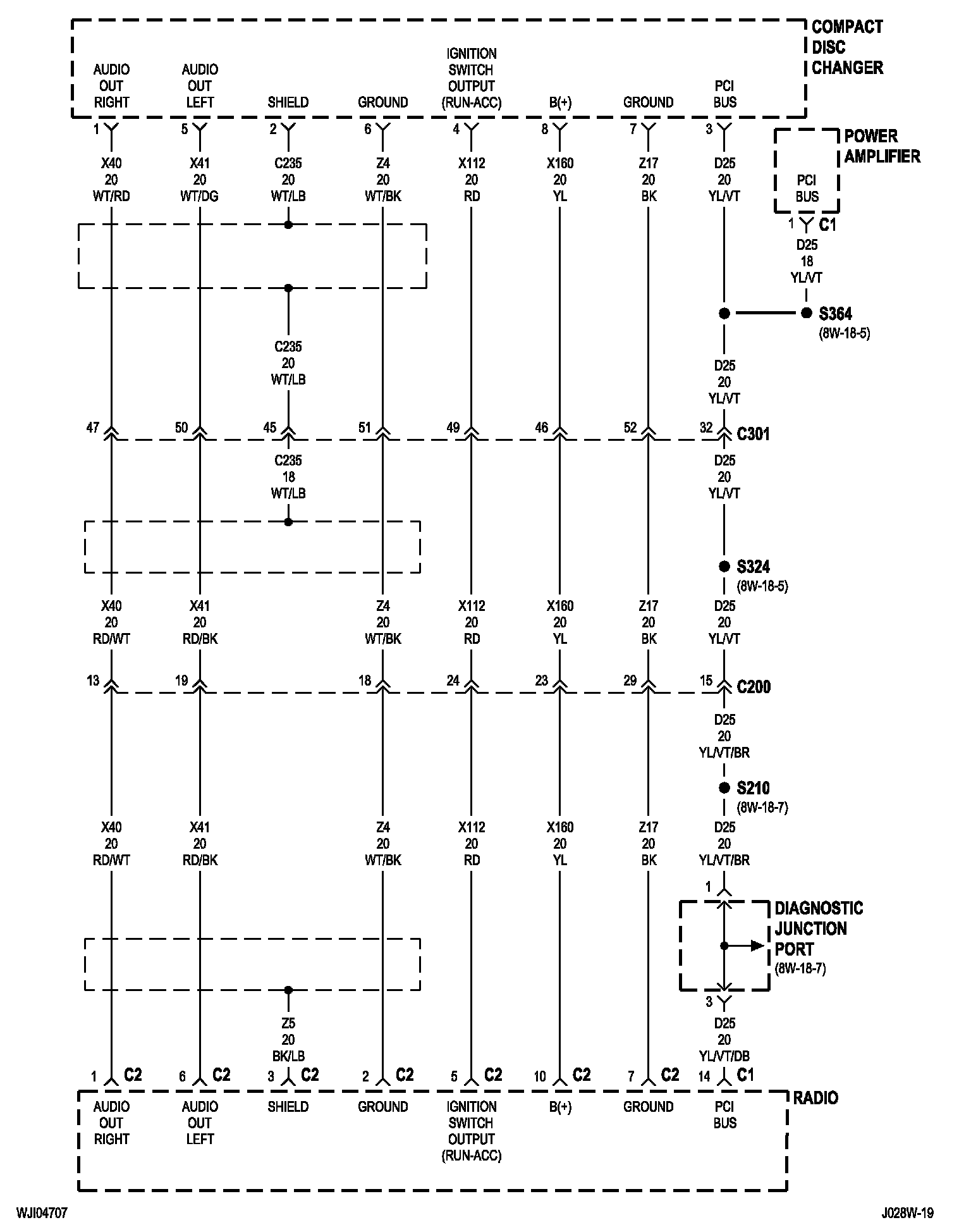

8w-47-7 (RHD Premium):

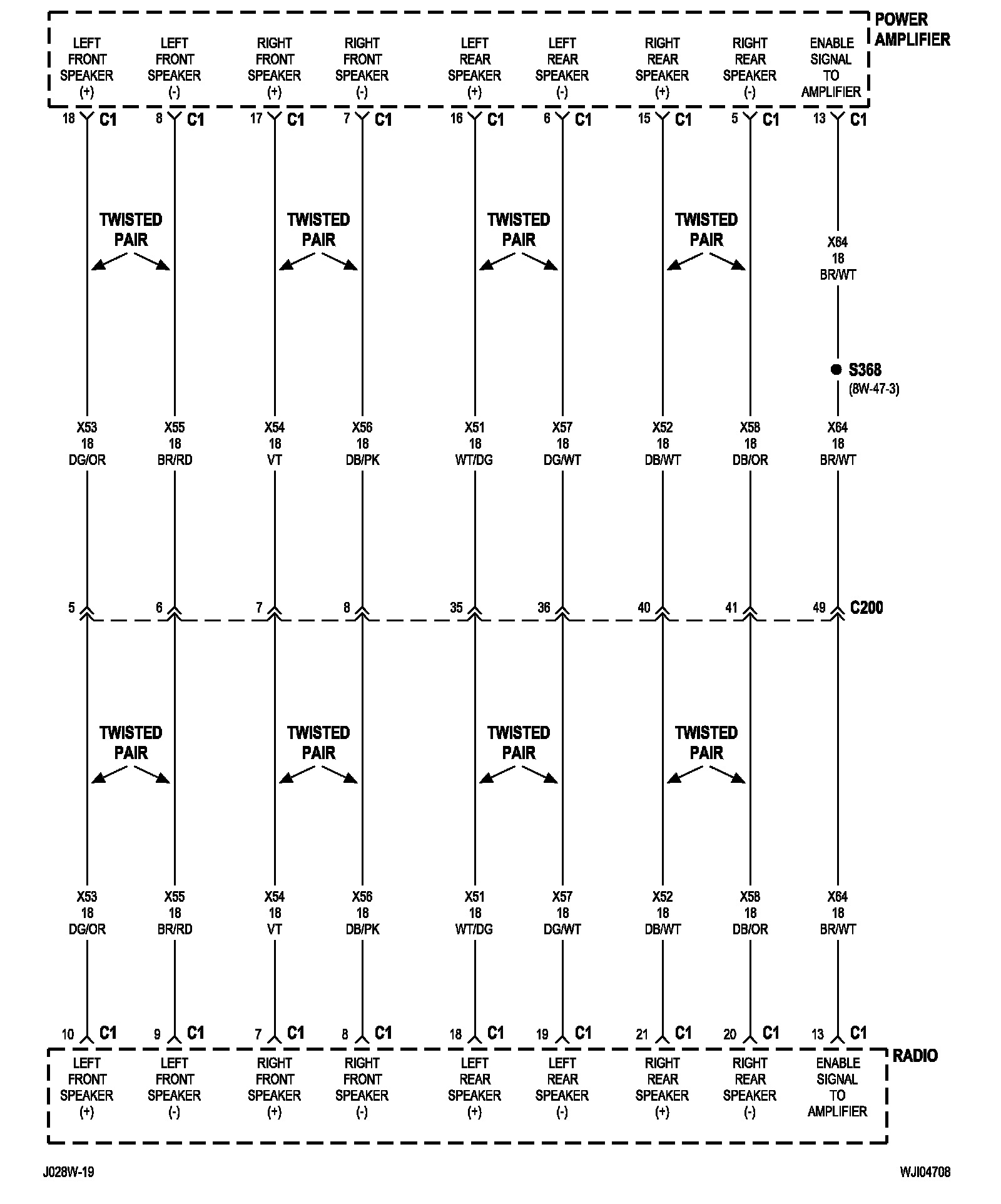

8w-47-8 (LHD Premium):

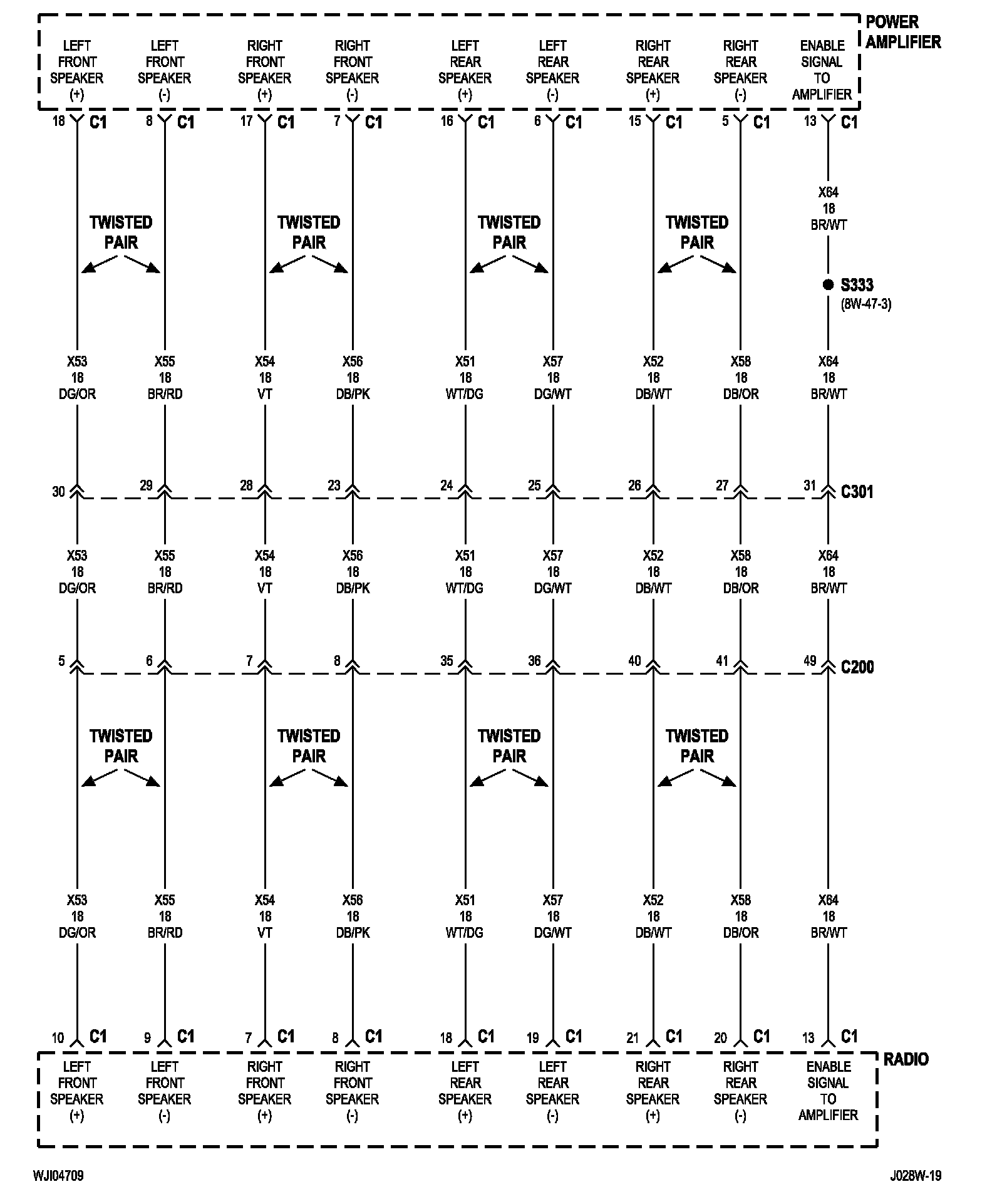

8w-47-9 (RHD Premium):

8w-47-10 (LHD Premium):

8w-47-11 (RHD Premium):

8w-47-12 (Premium):

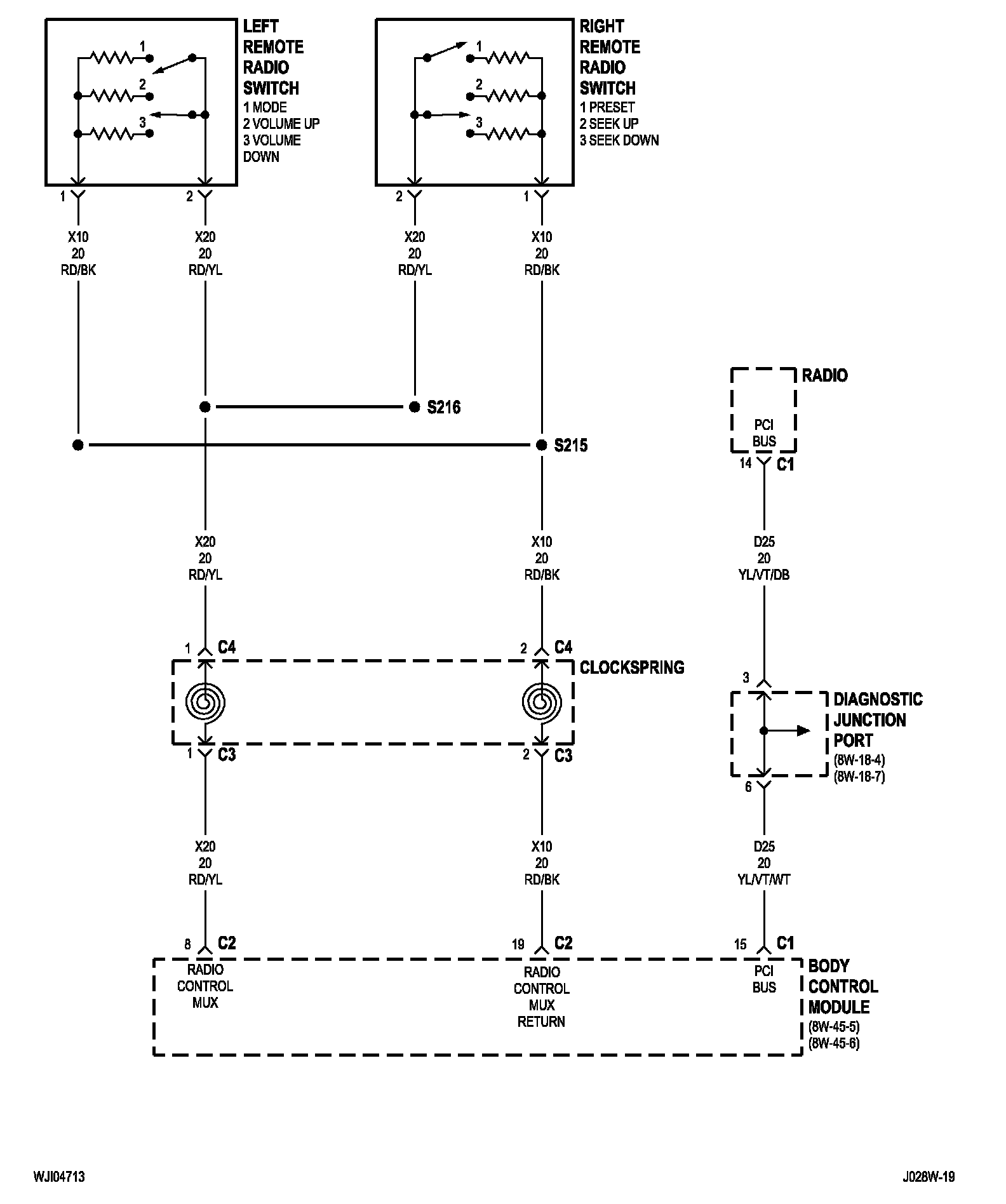

8w-47-13:

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams. Electrical Diagrams
