Turn Signals

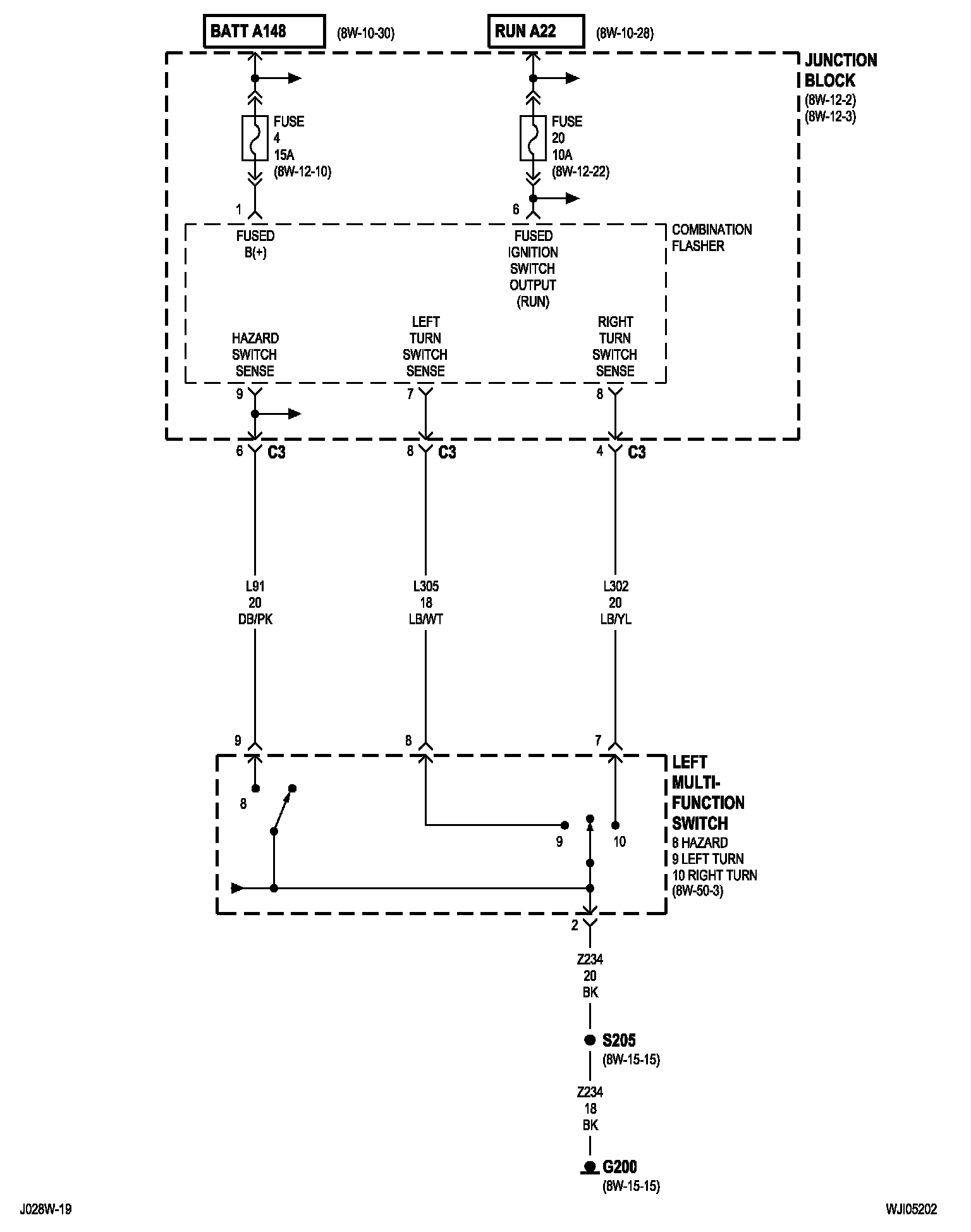

8w-52-2:

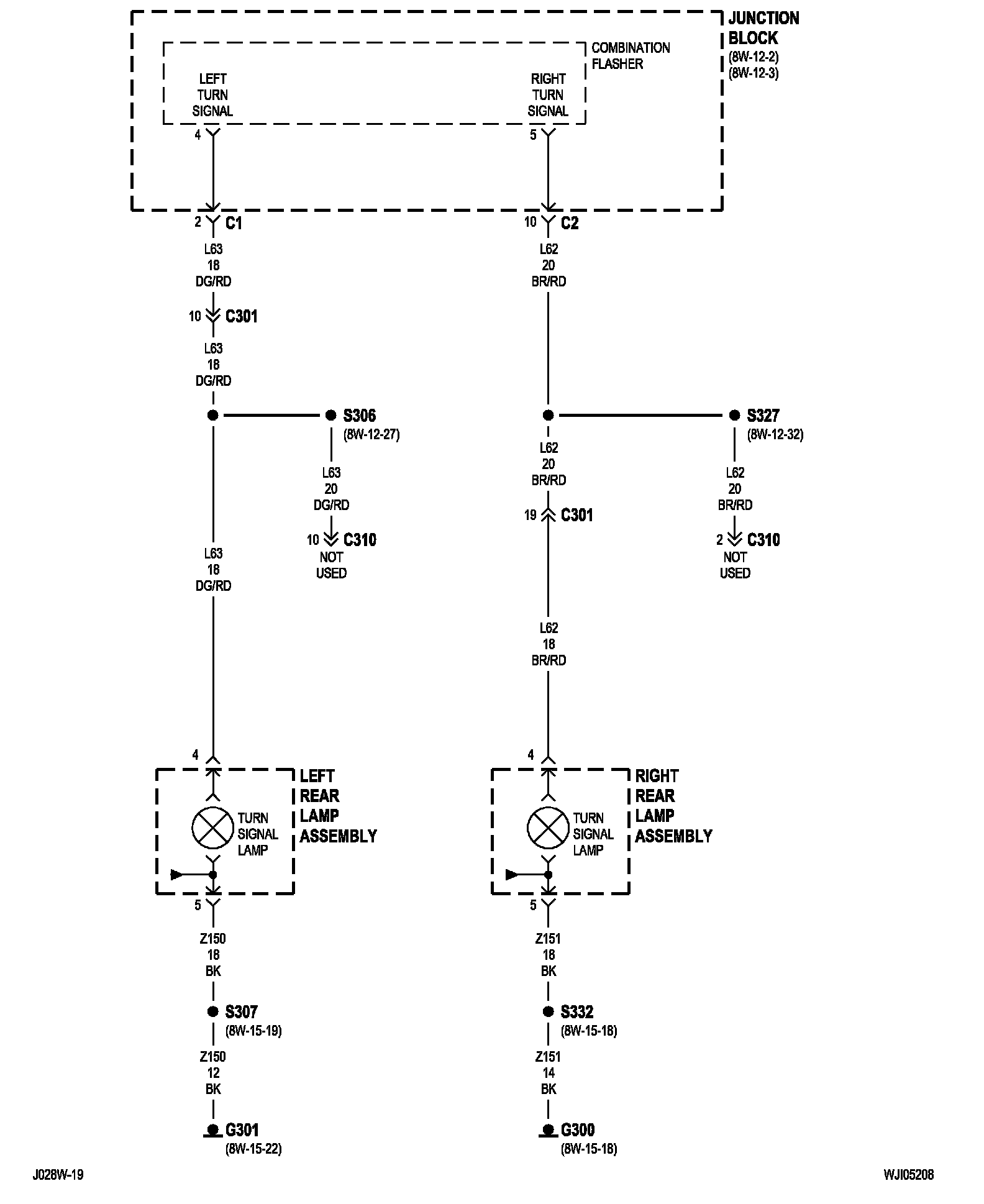

8w-52-3:

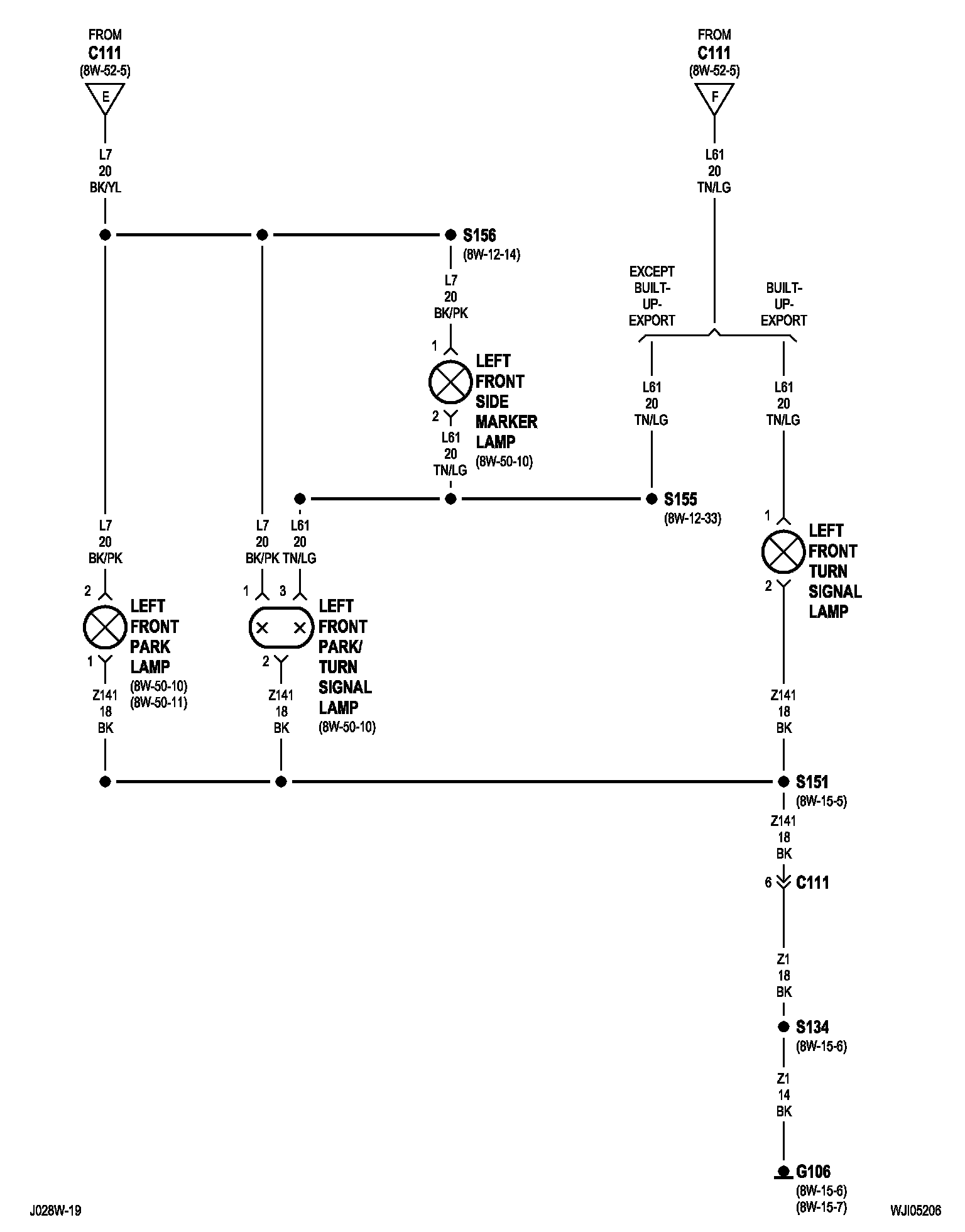

8w-52-4:

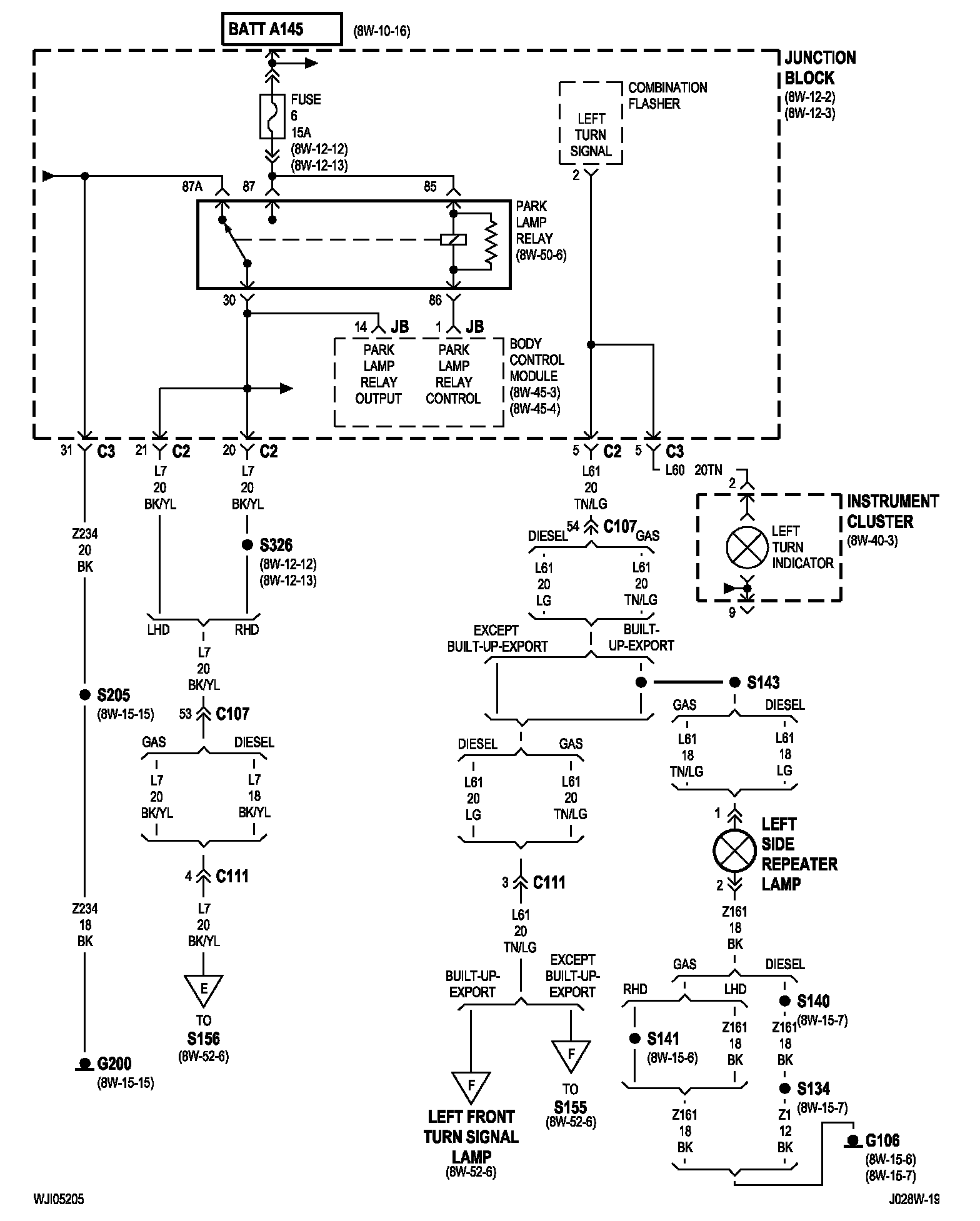

8w-52-5:

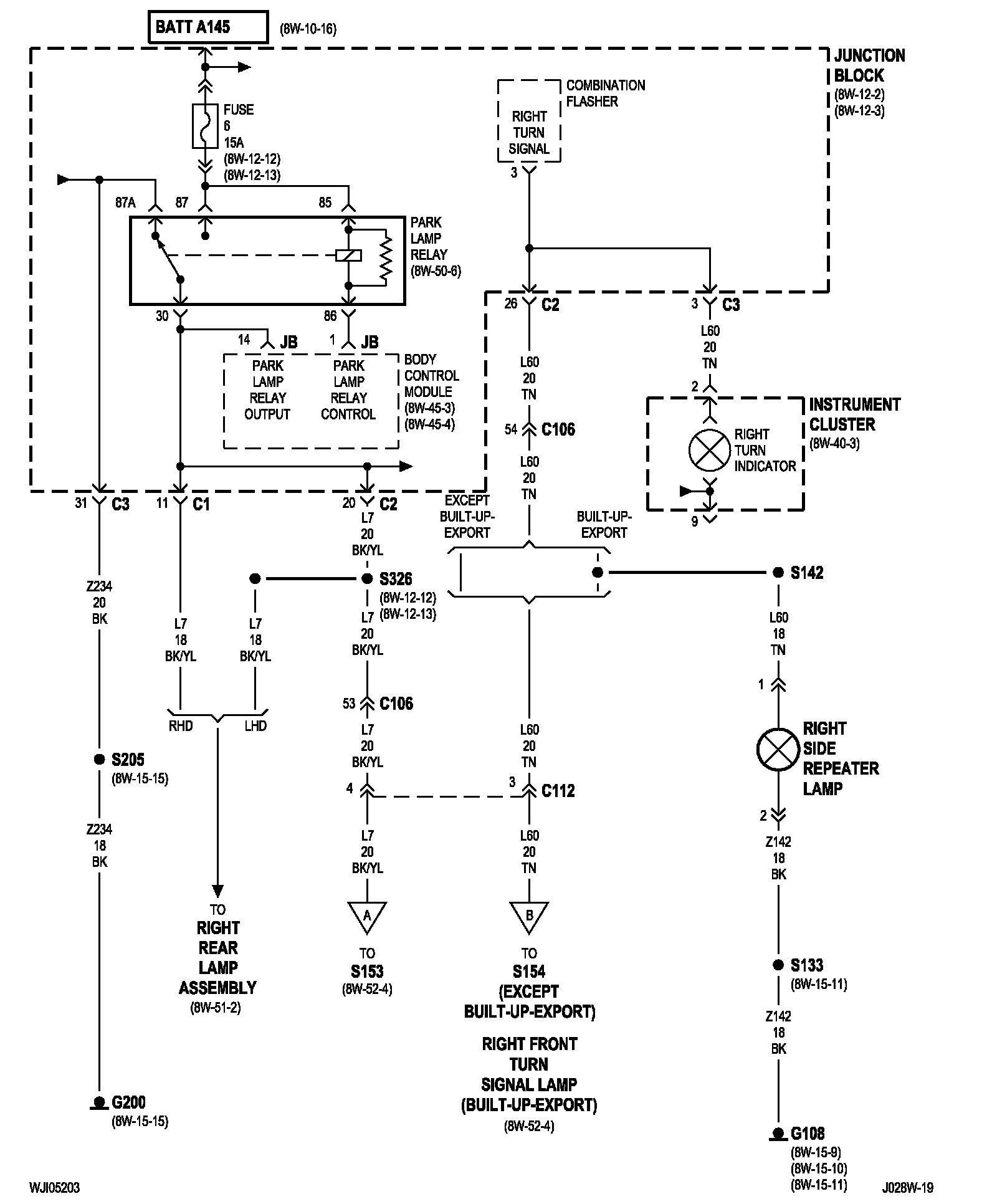

8w-52-6:

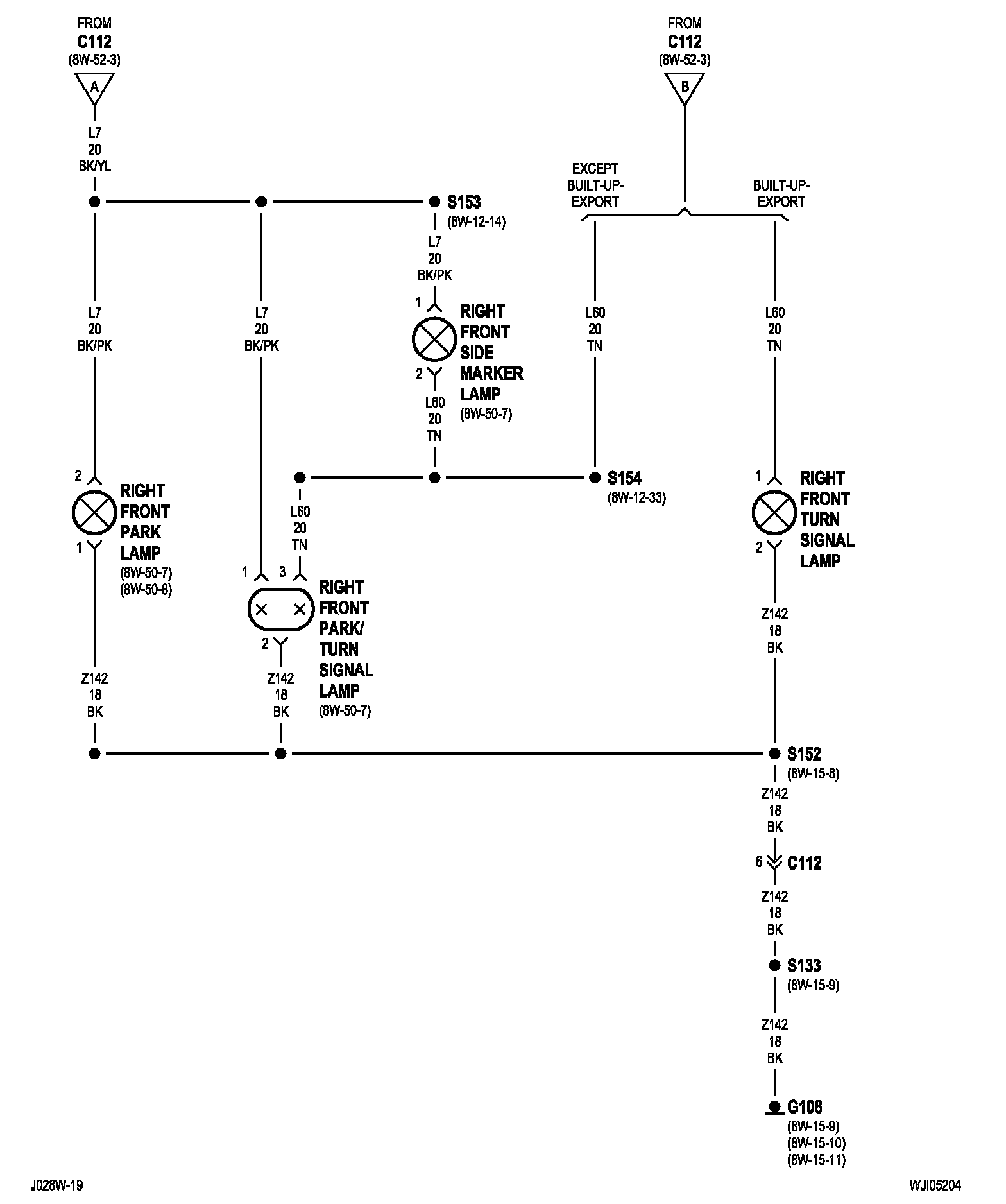

8w-52-7 (LHD):

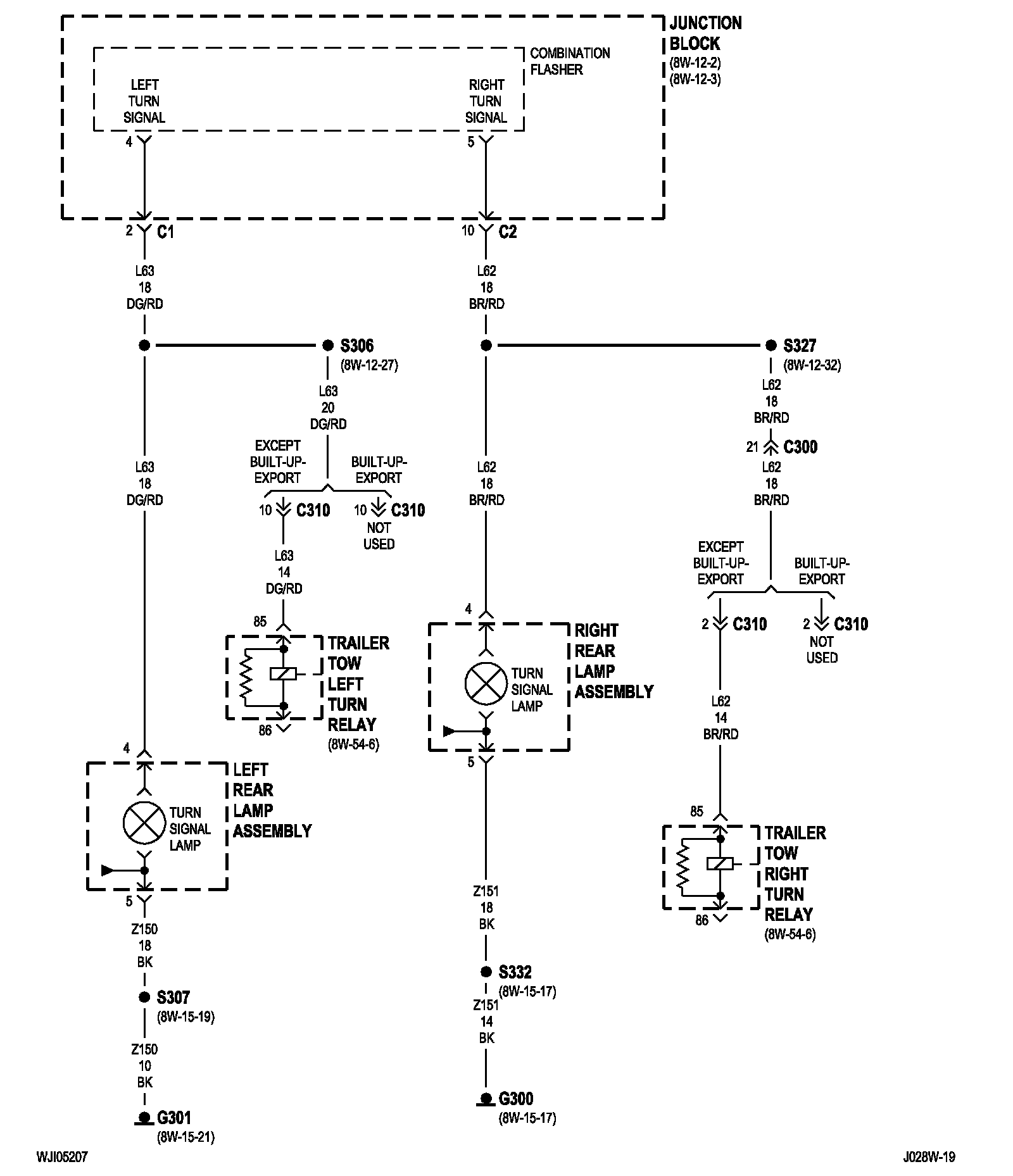

8w-52-8 (RHD):

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams. Electrical Diagrams
