Rear Lighting

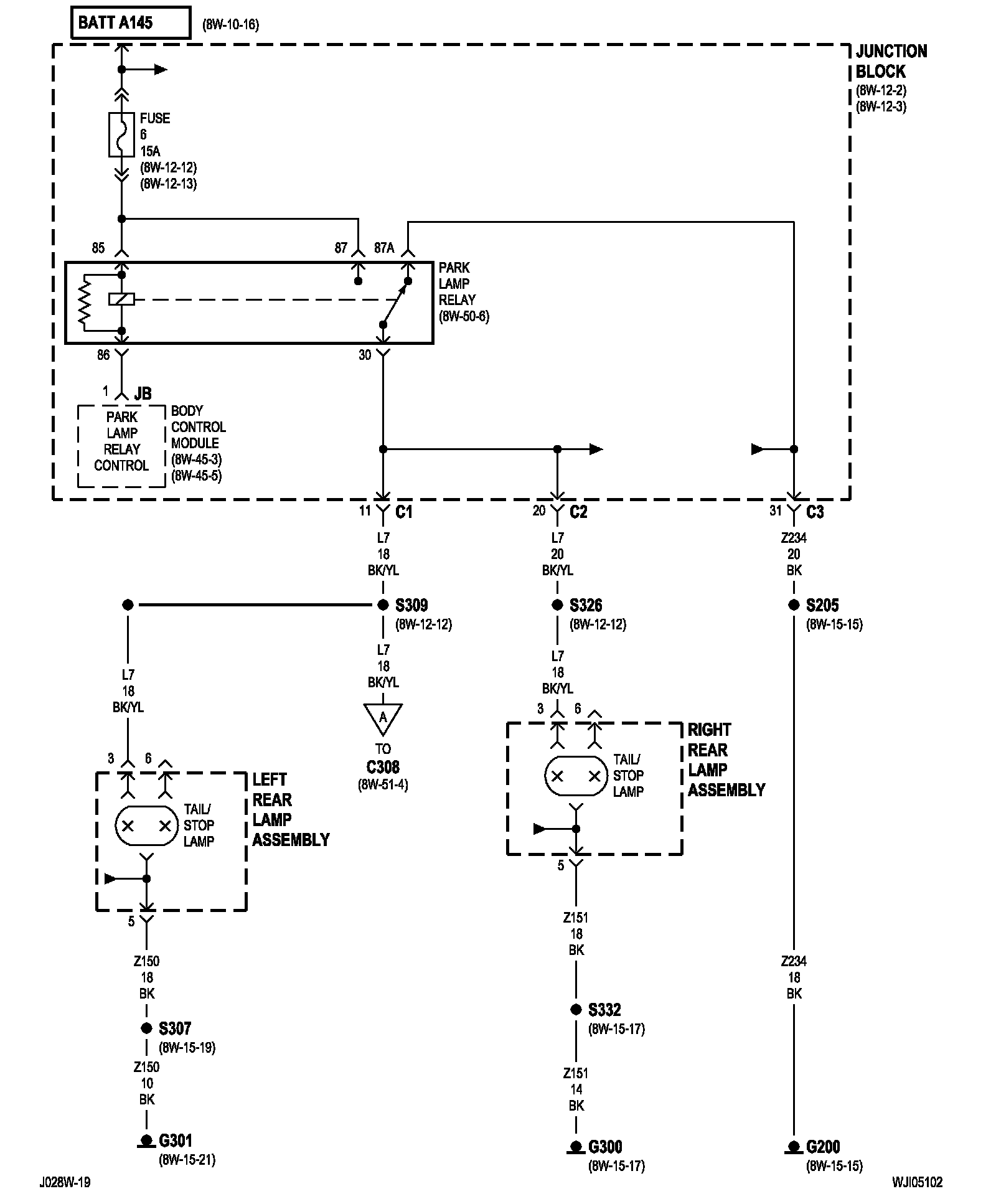

8w-51-2 (LHD):

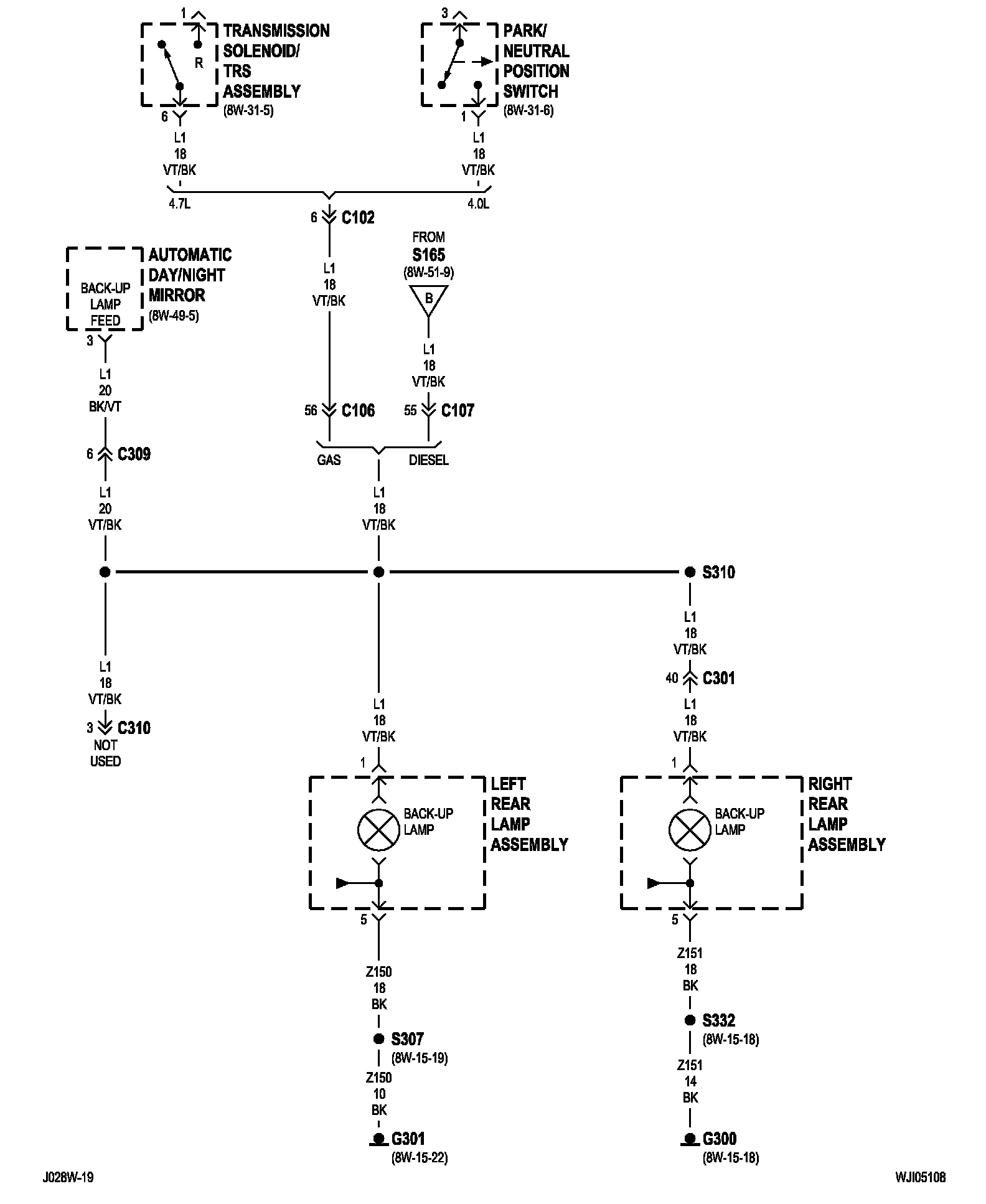

8w-51-3 (RHD):

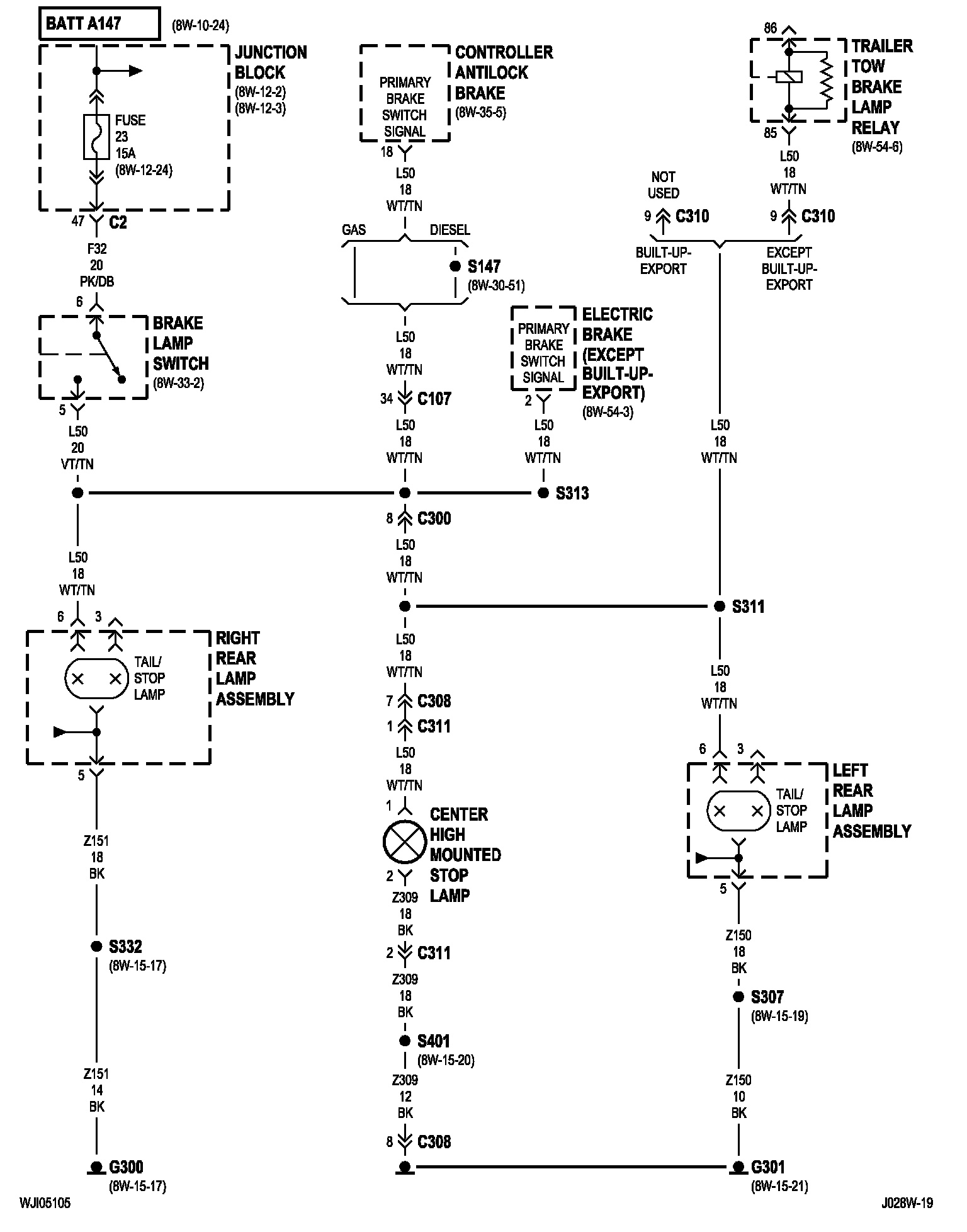

8w-51-4:

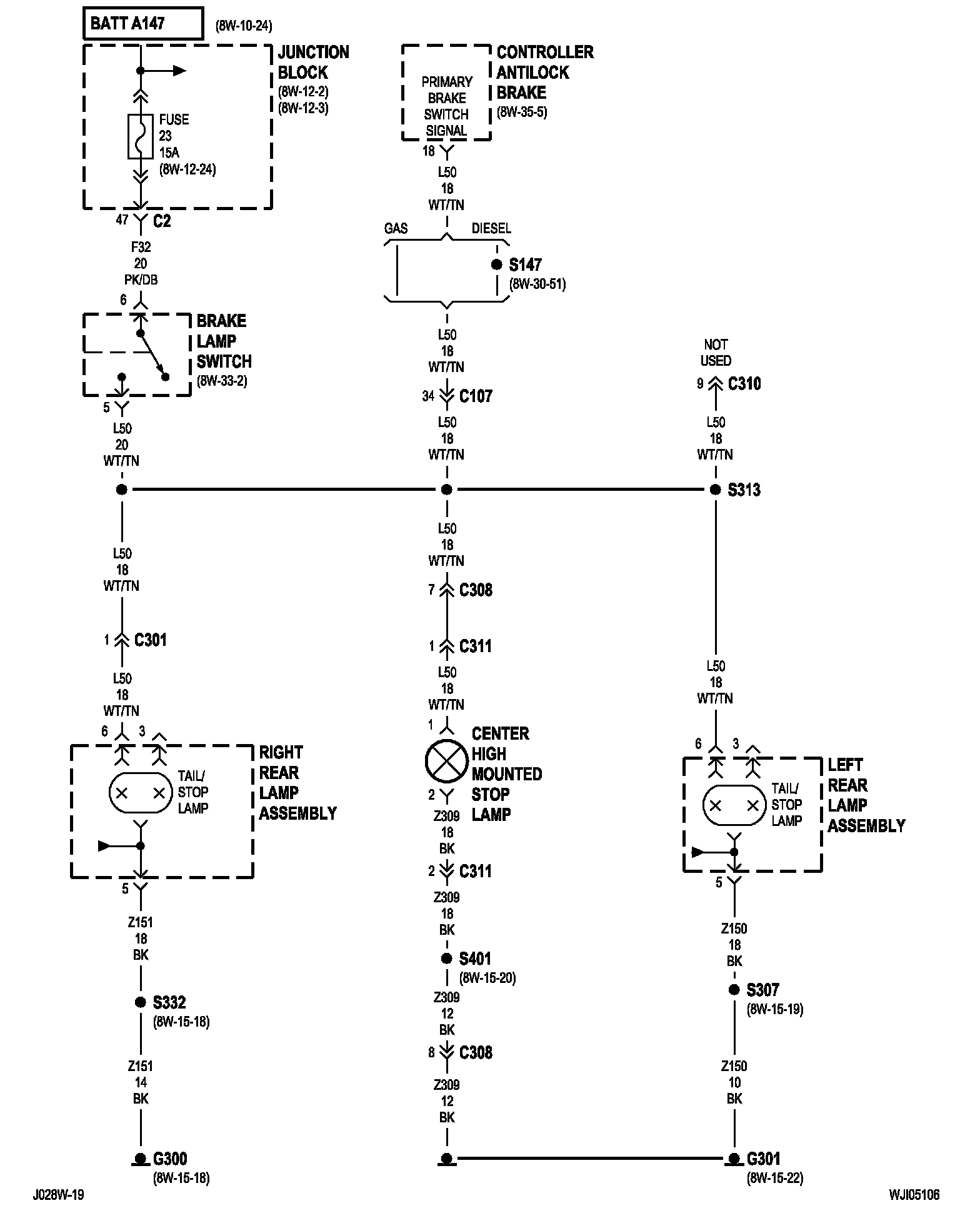

8w-51-5 (LHD):

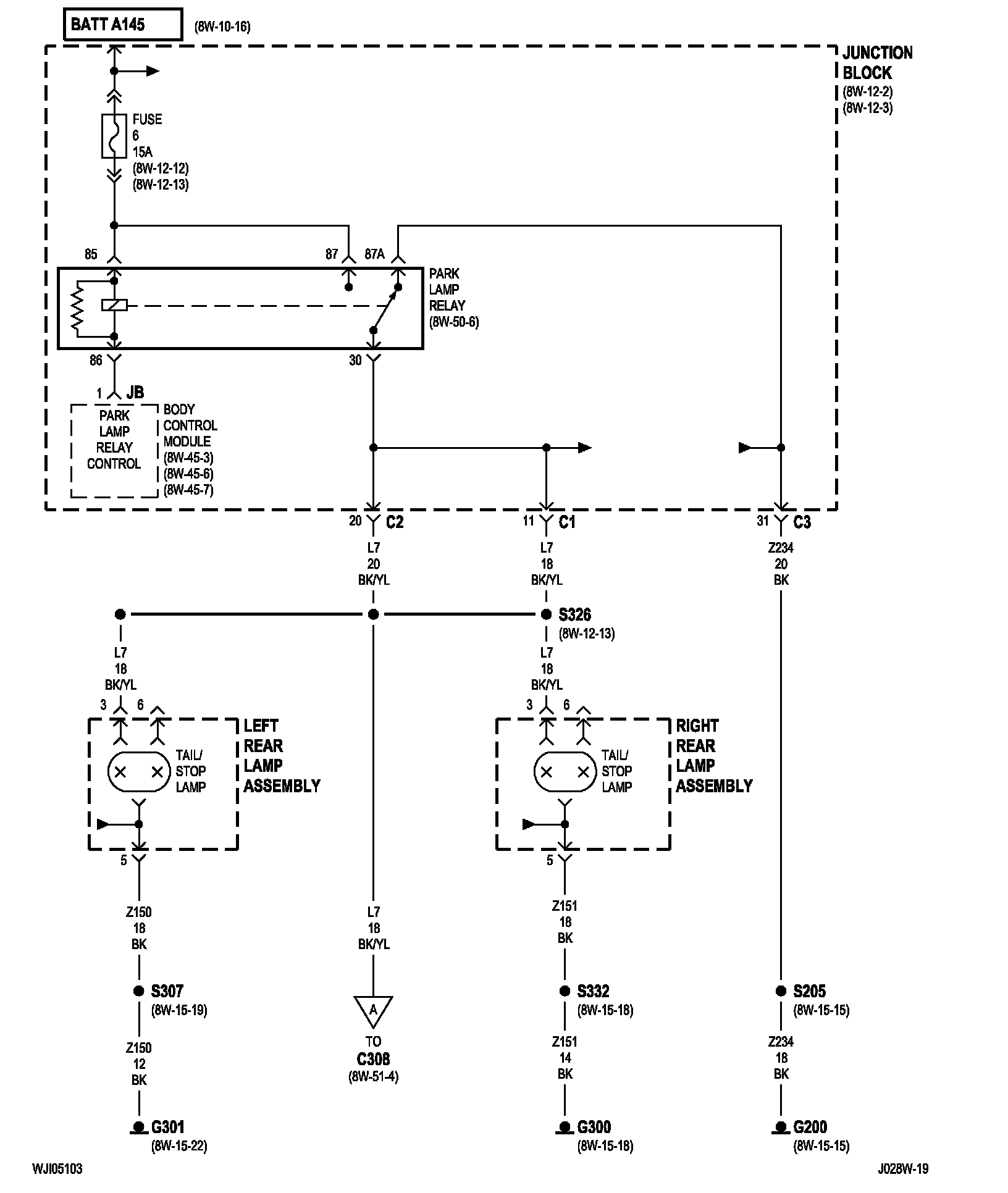

8w-51-6 (RHD):

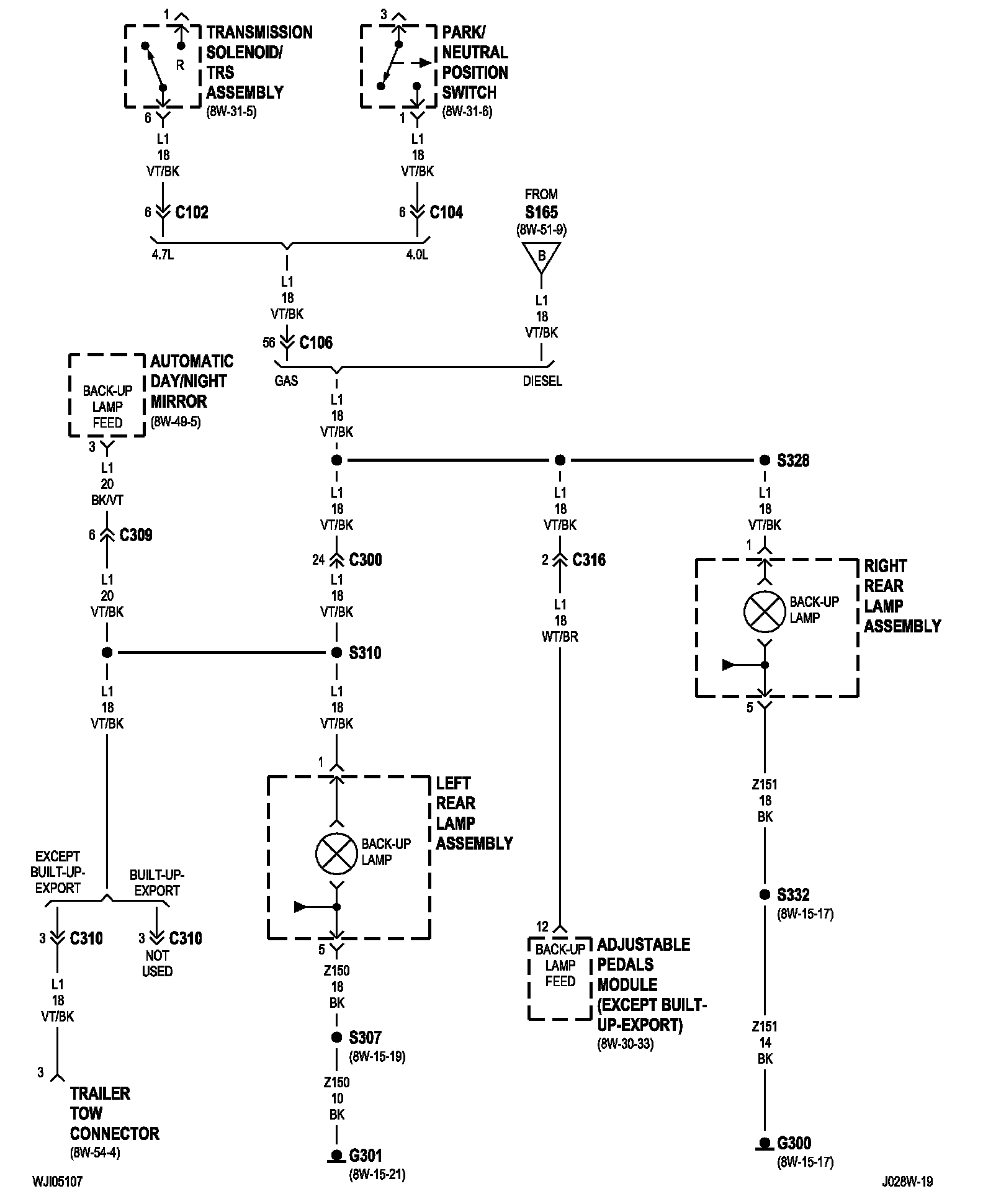

8w-51-7 (LHD):

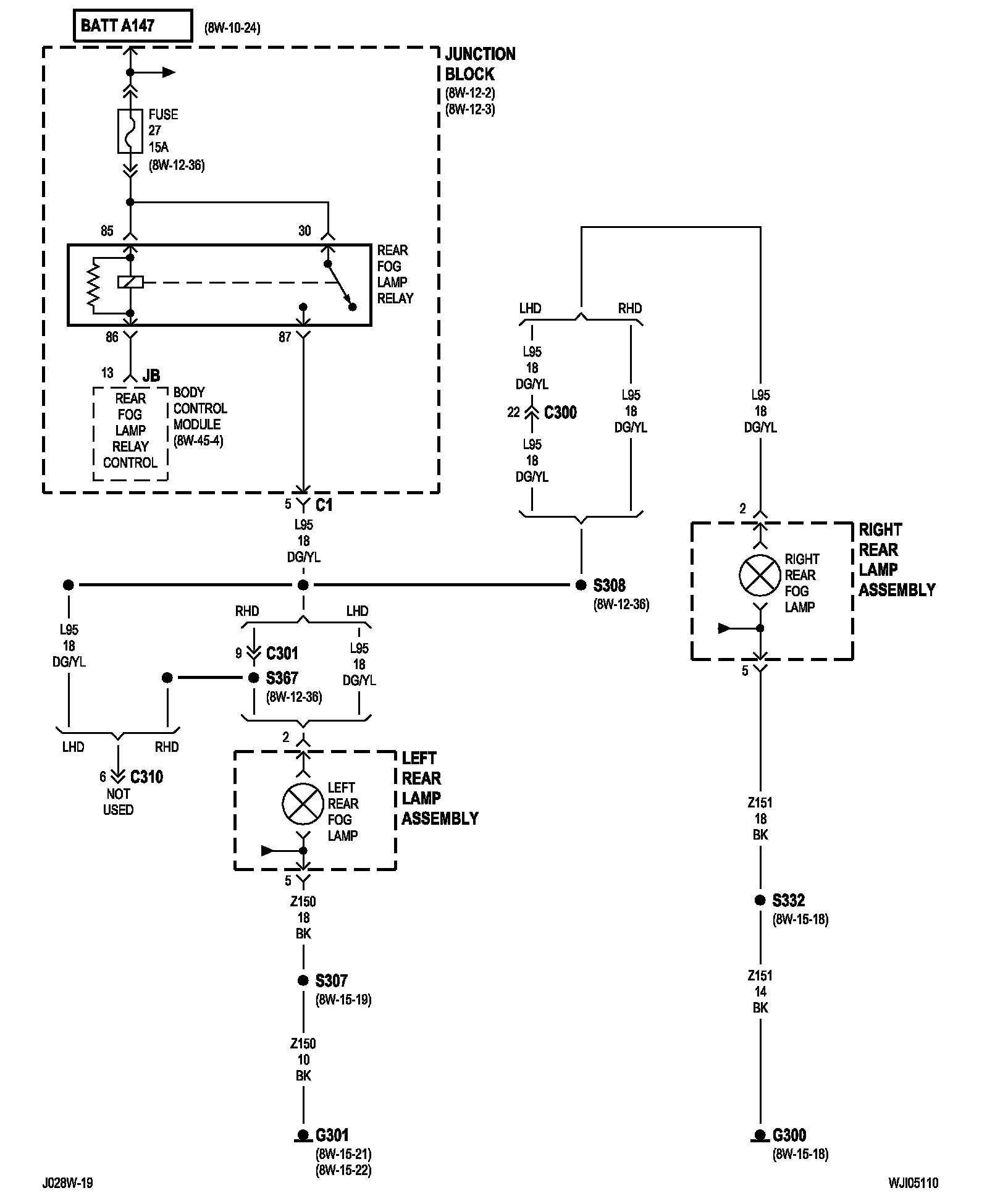

8w-51-8 (RHD):




8w-51-10 (Built-Up-Export):






NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams. Electrical Diagrams
