Interior Lighting

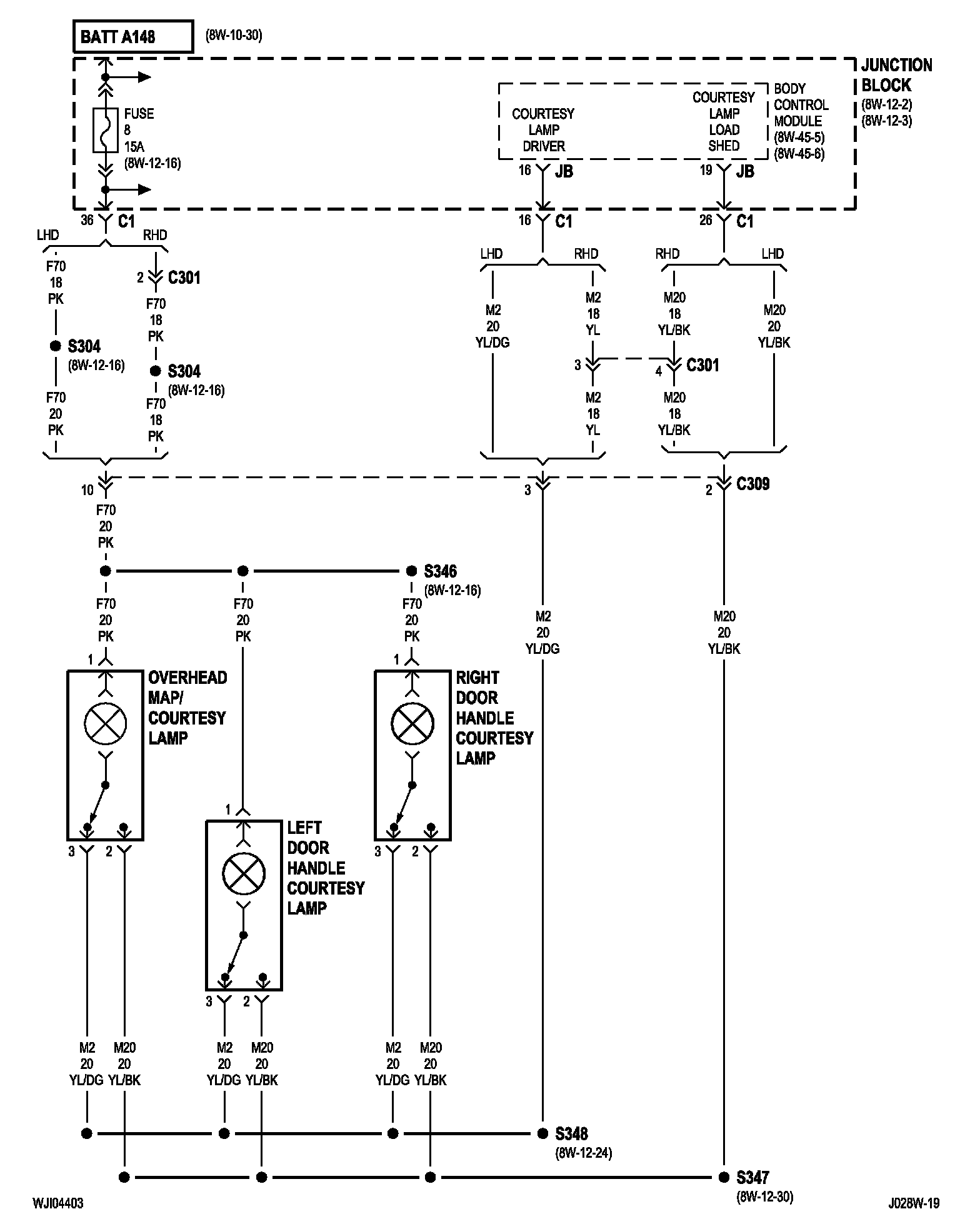

8w-44-2:

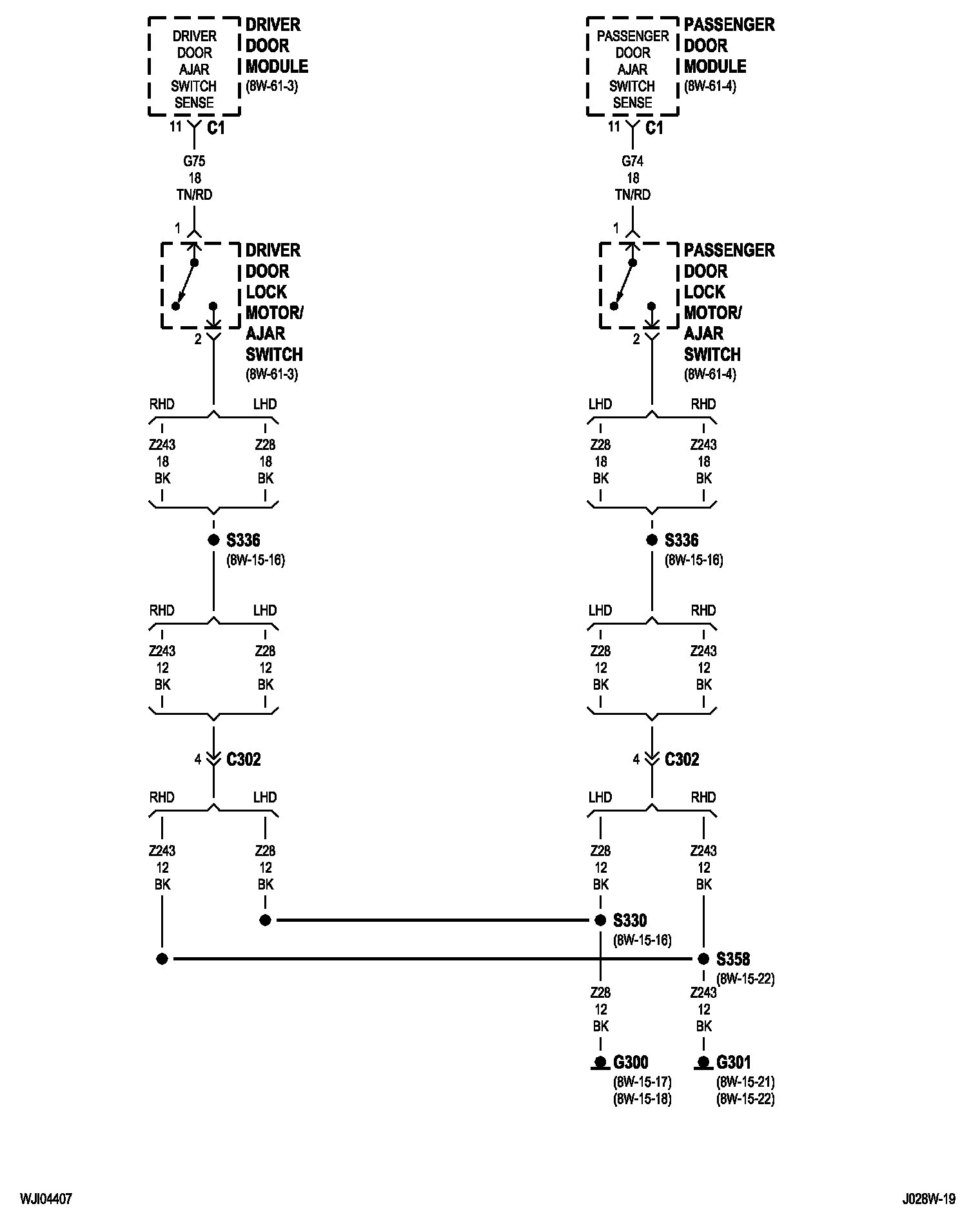

8w-44-3:

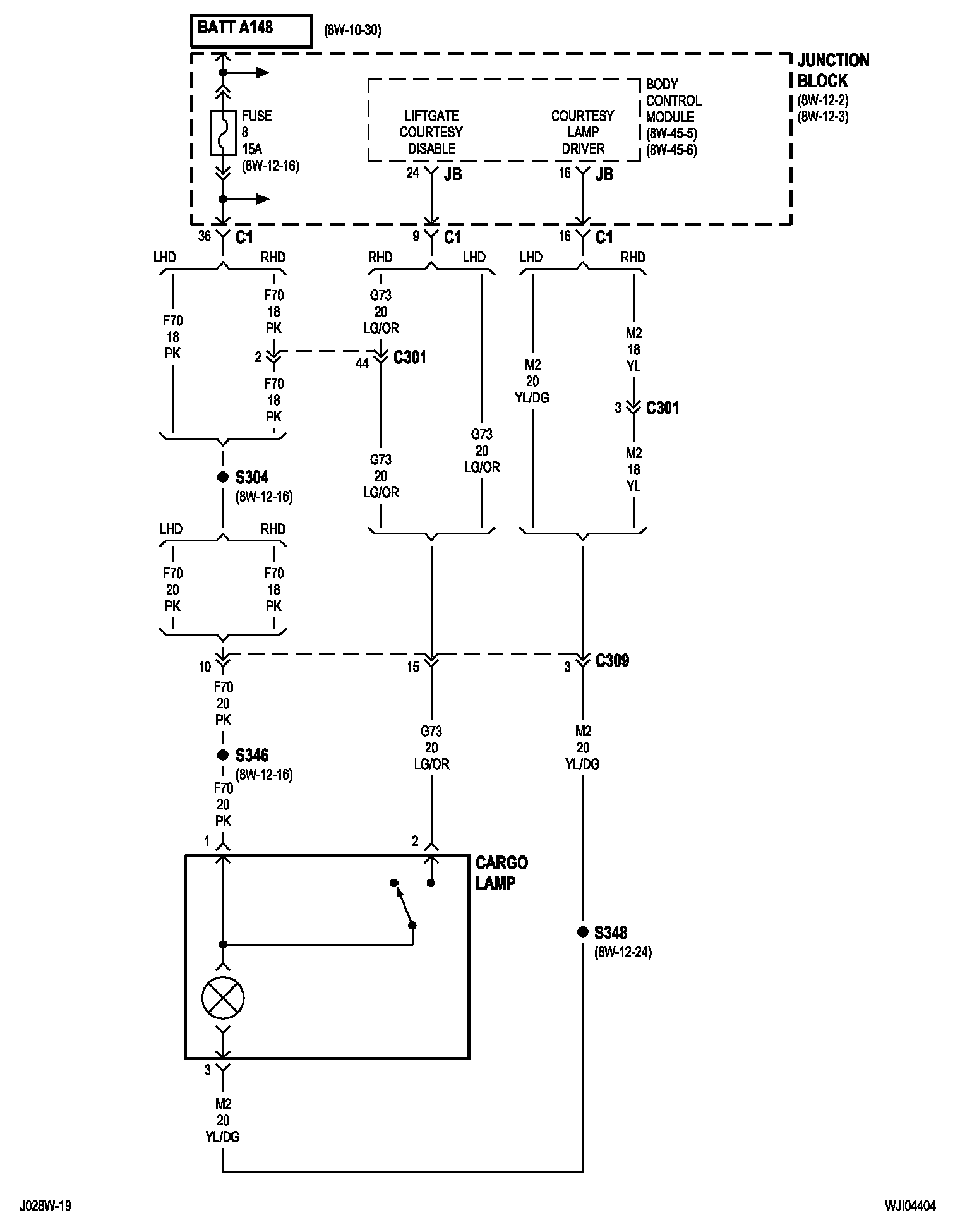

8w-44-4:

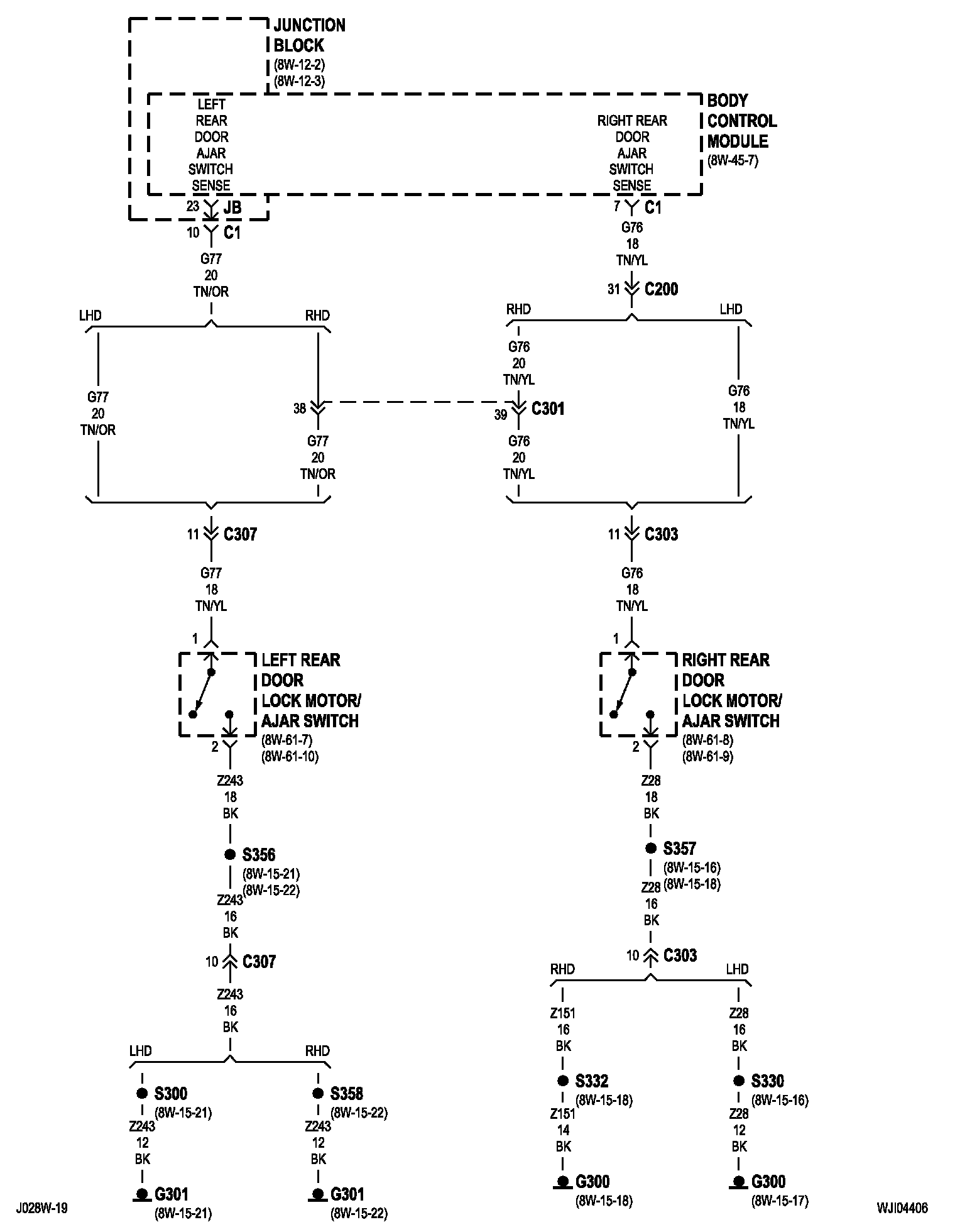

8w-44-5:

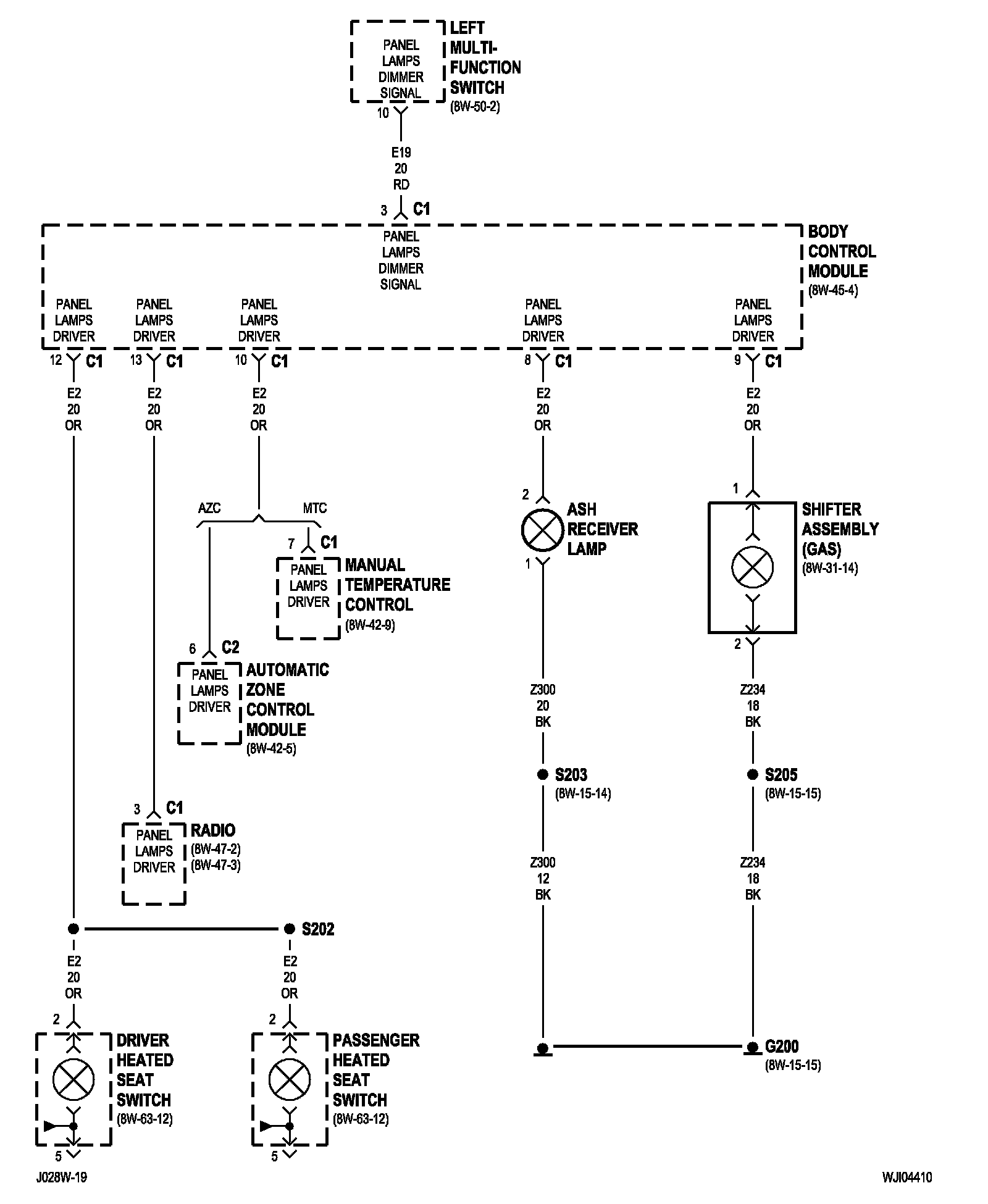

8w-44-6:

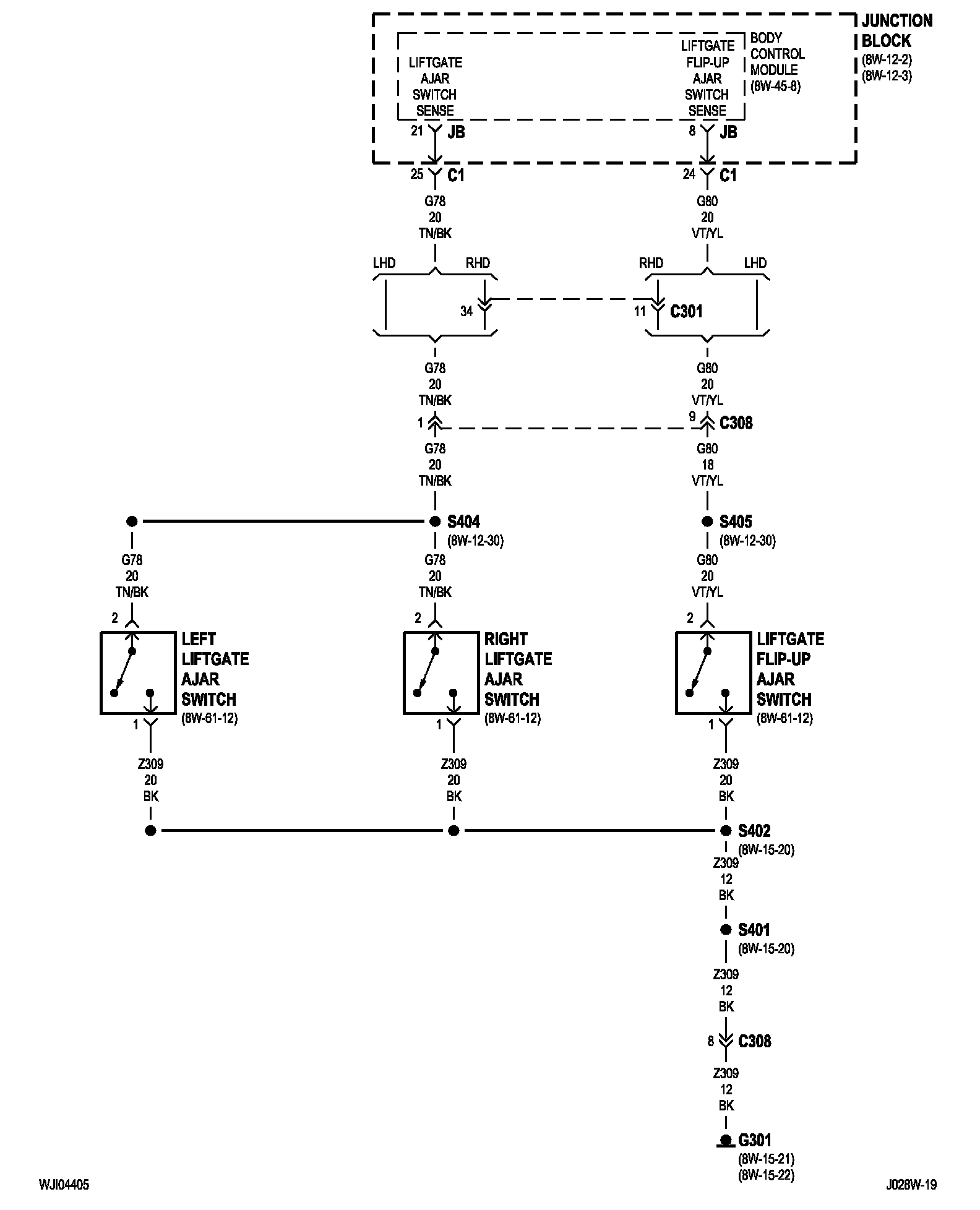

8w-44-7:

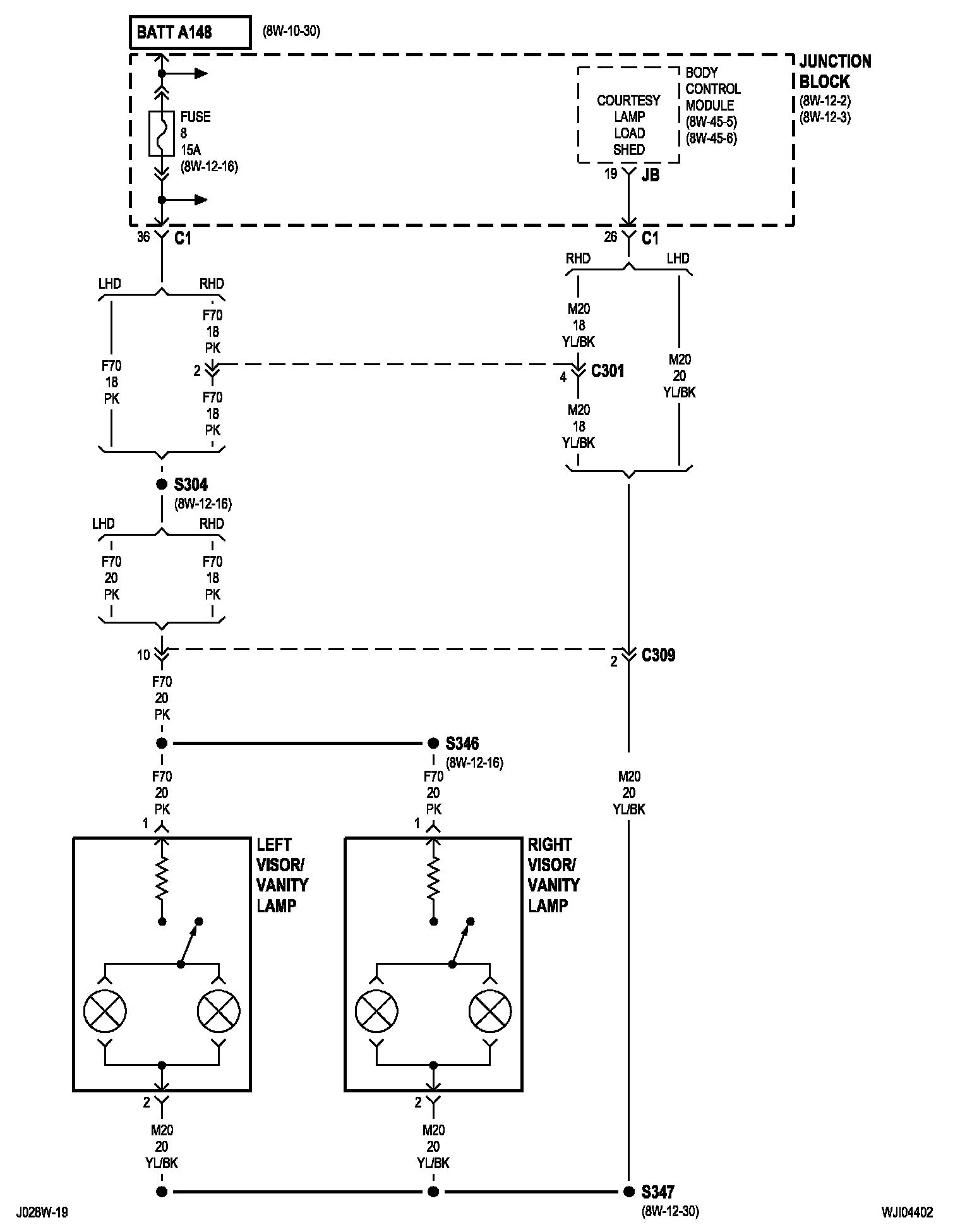

8w-44-8:

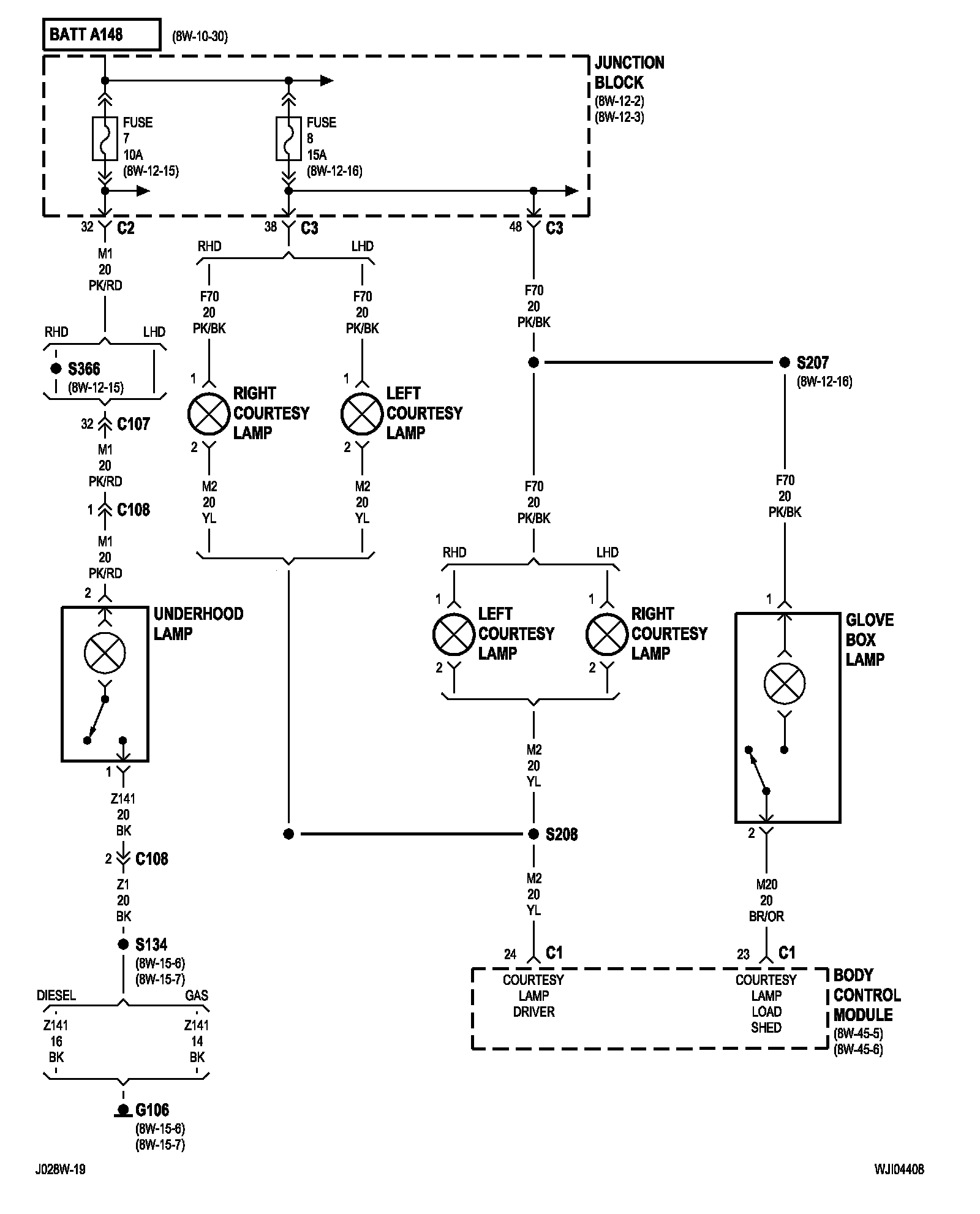

8w-44-9:

8w-44-10:

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams. Electrical Diagrams
