System Diagram

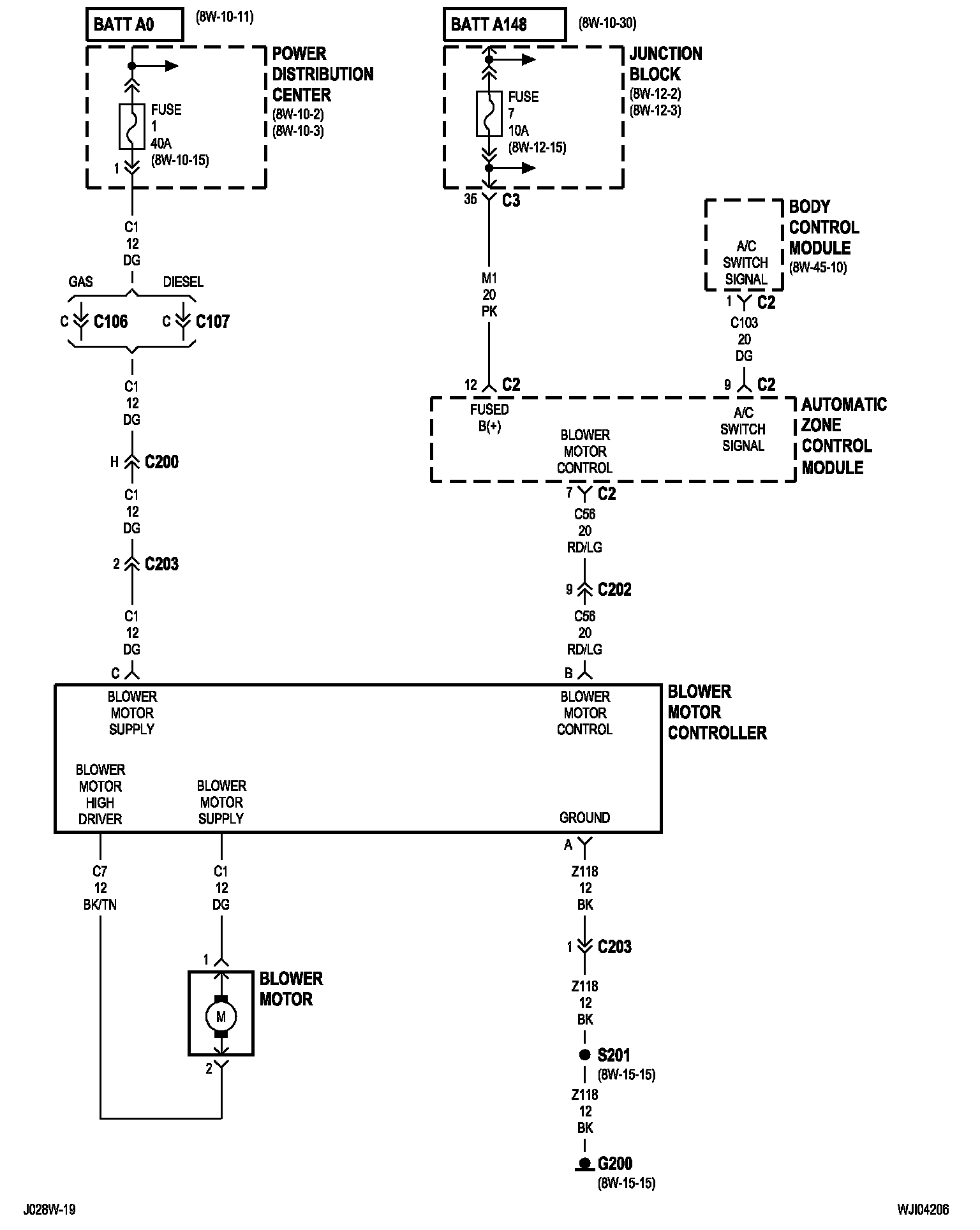

8w-42-2:

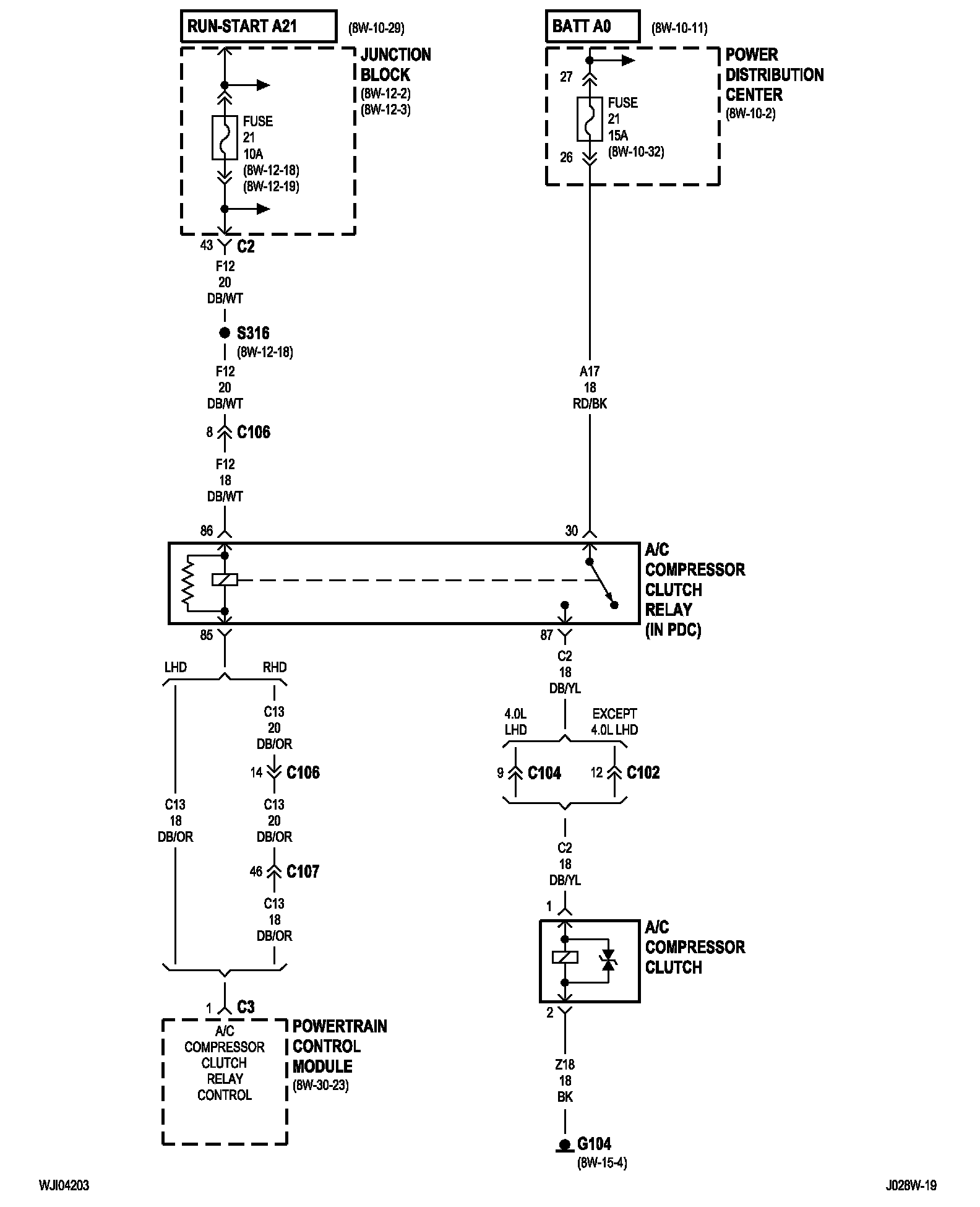

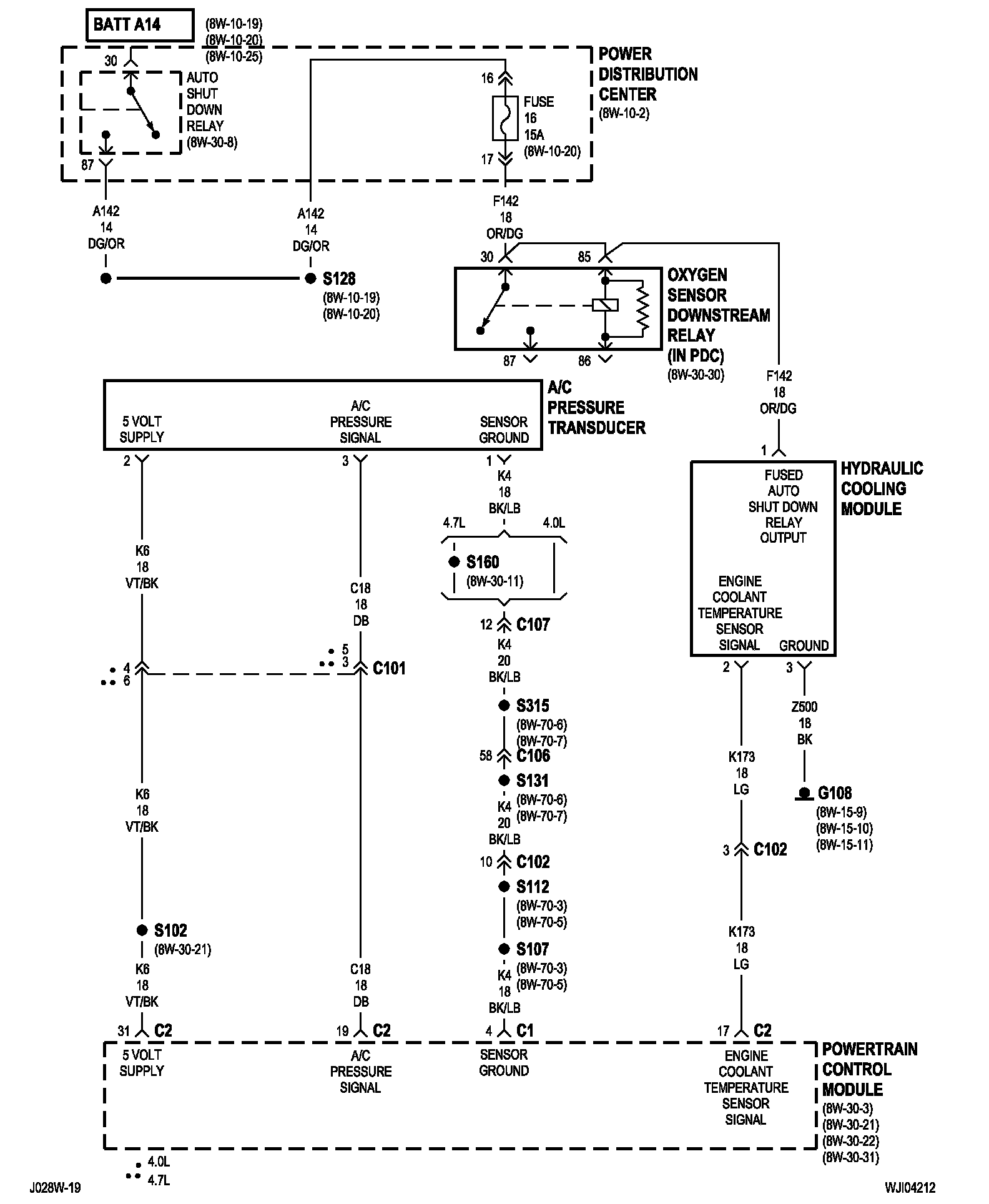

8w-42-3 (Gas):

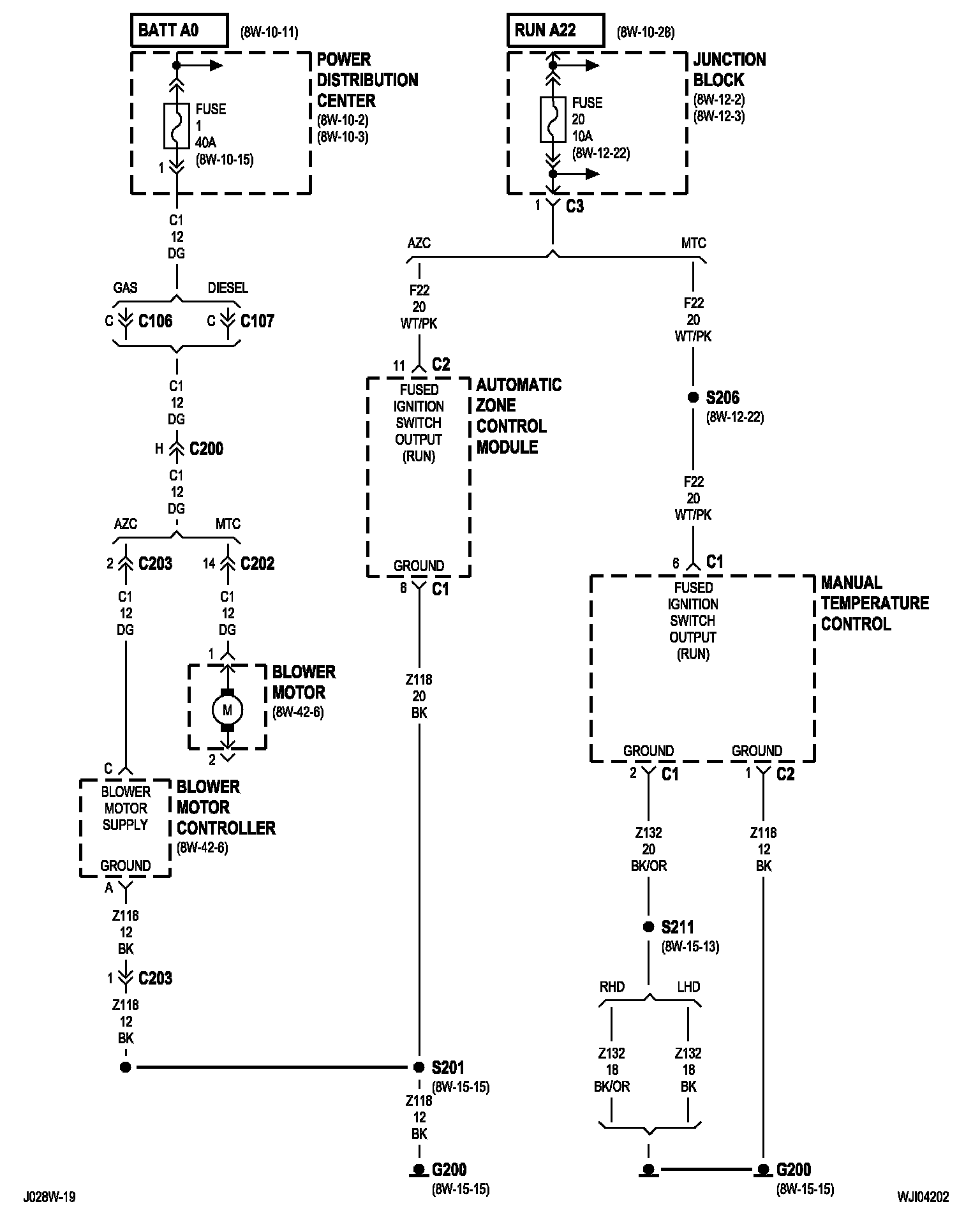

8w-42-5 (AZC):

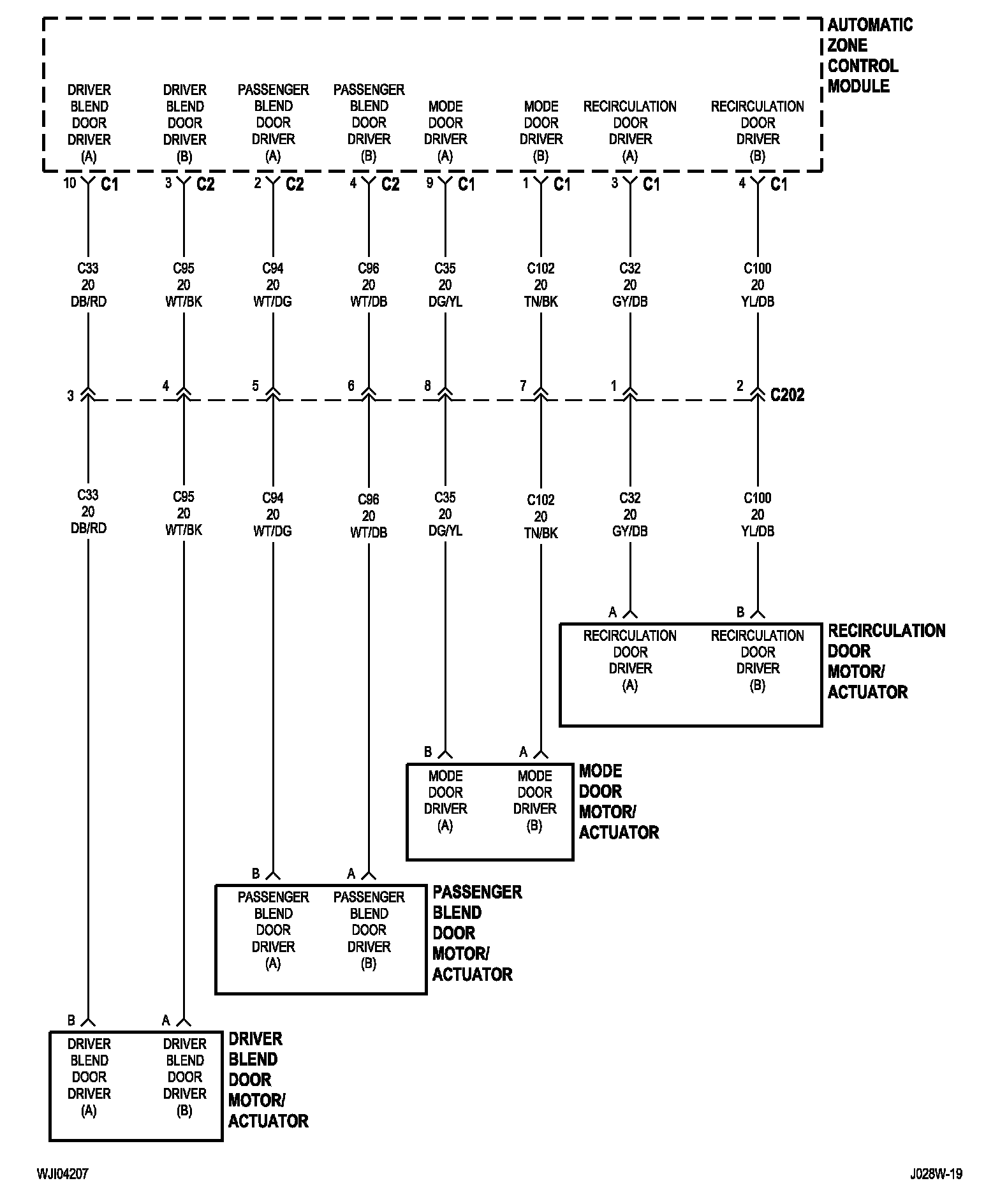

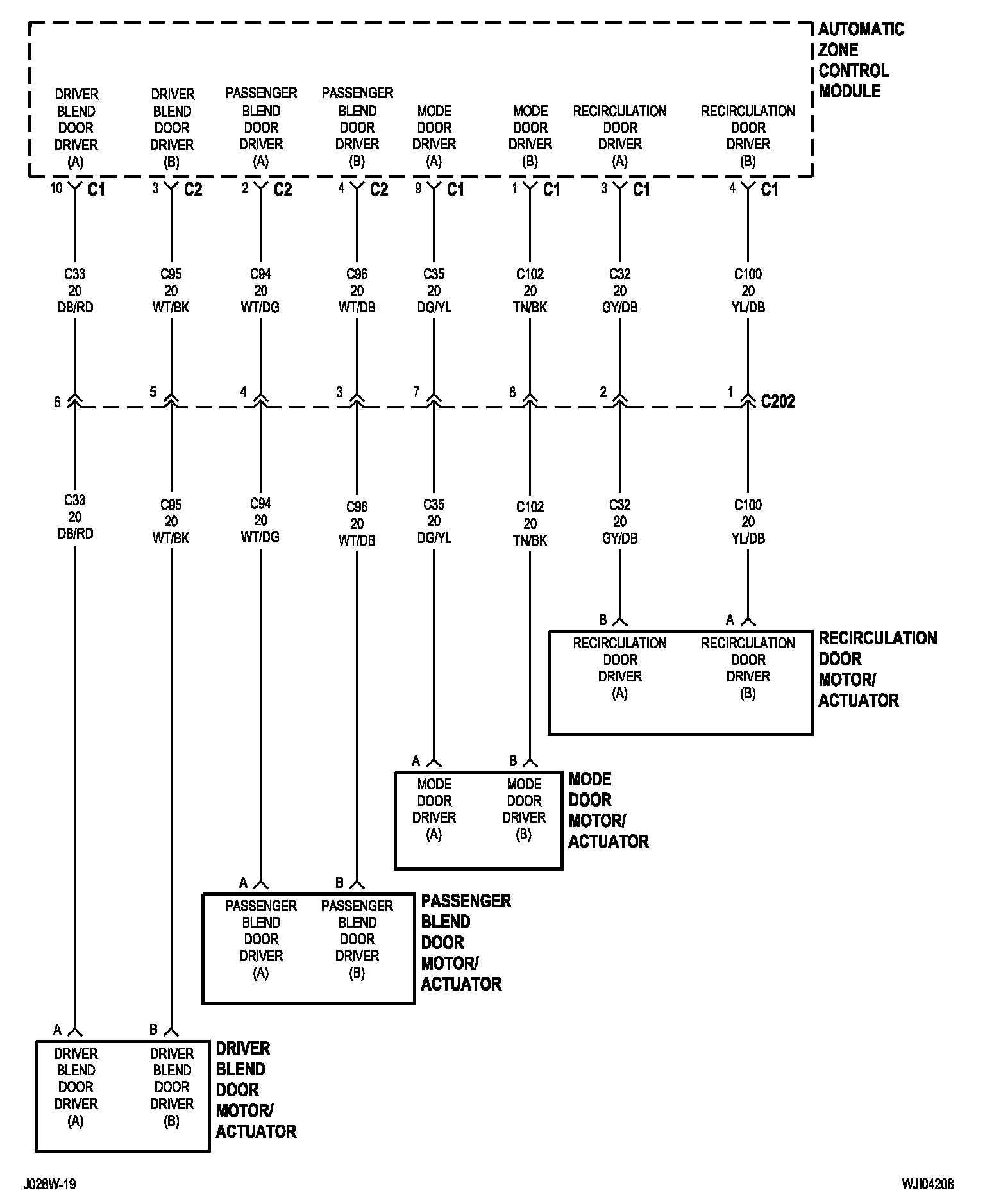

8w-42-6 (AZC):

8w-42-7 (AZC LHD):

8w-42-8 (AZC RHD):

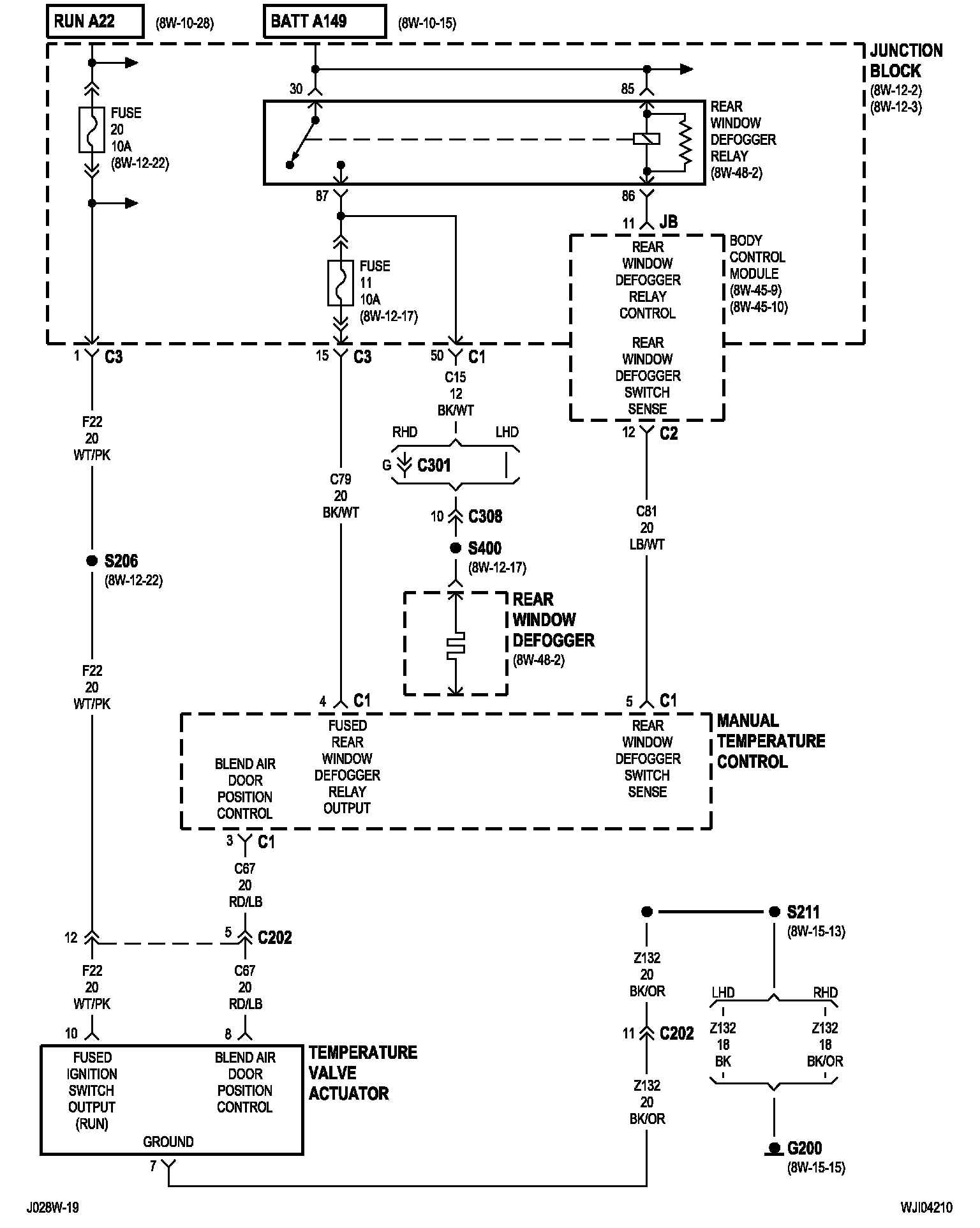

8w-42-9 (MTC):

8w-42-10 (MTC):

8w-42-11 (LHD):

8w-42-12 (RHD):

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams. Electrical Diagrams
