Group 8W-10 (Power Distribution)
>>
Sheet 8W-10-1 Group Index
Sheet 8W-10-1 Group Index

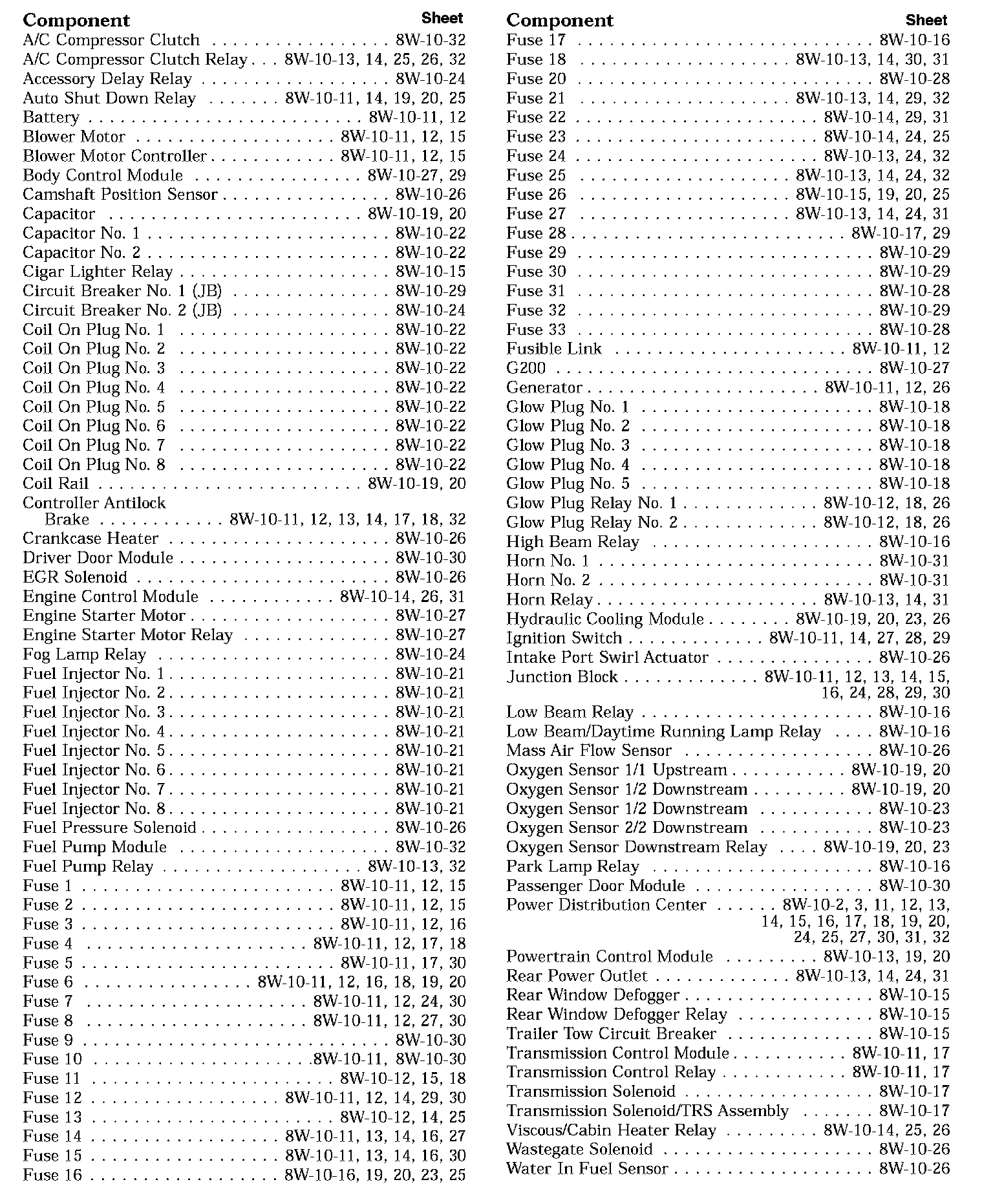

Power Distribution Component Index:
