Home >> Jeep >> 2002 >> Grand Cherokee 2WD Laredo V8-4.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch

Power Seat Switch

Driver Power Seat Switch (Except Midline/Premium):

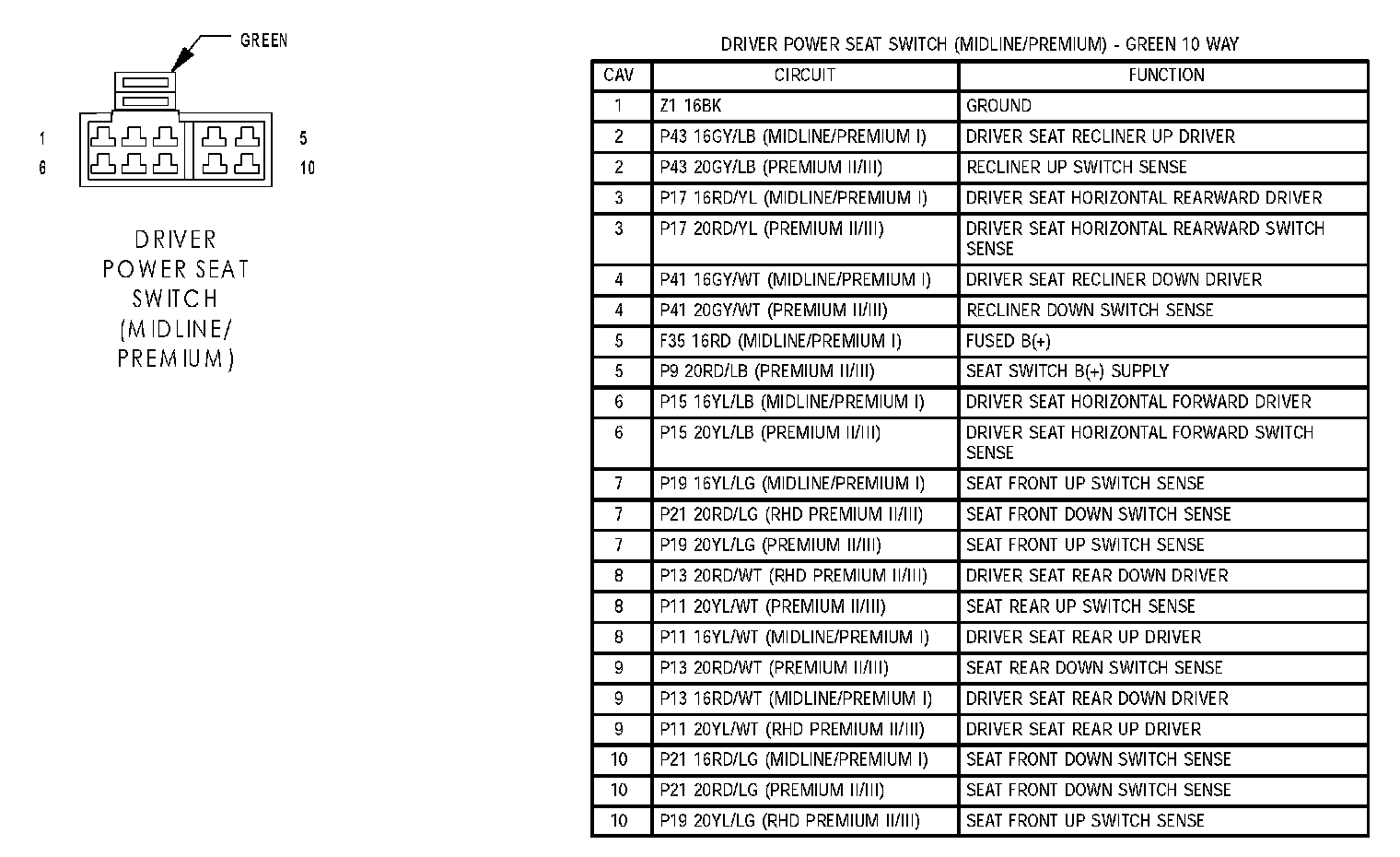

Driver Power Seat Switch (Midline/Premium):

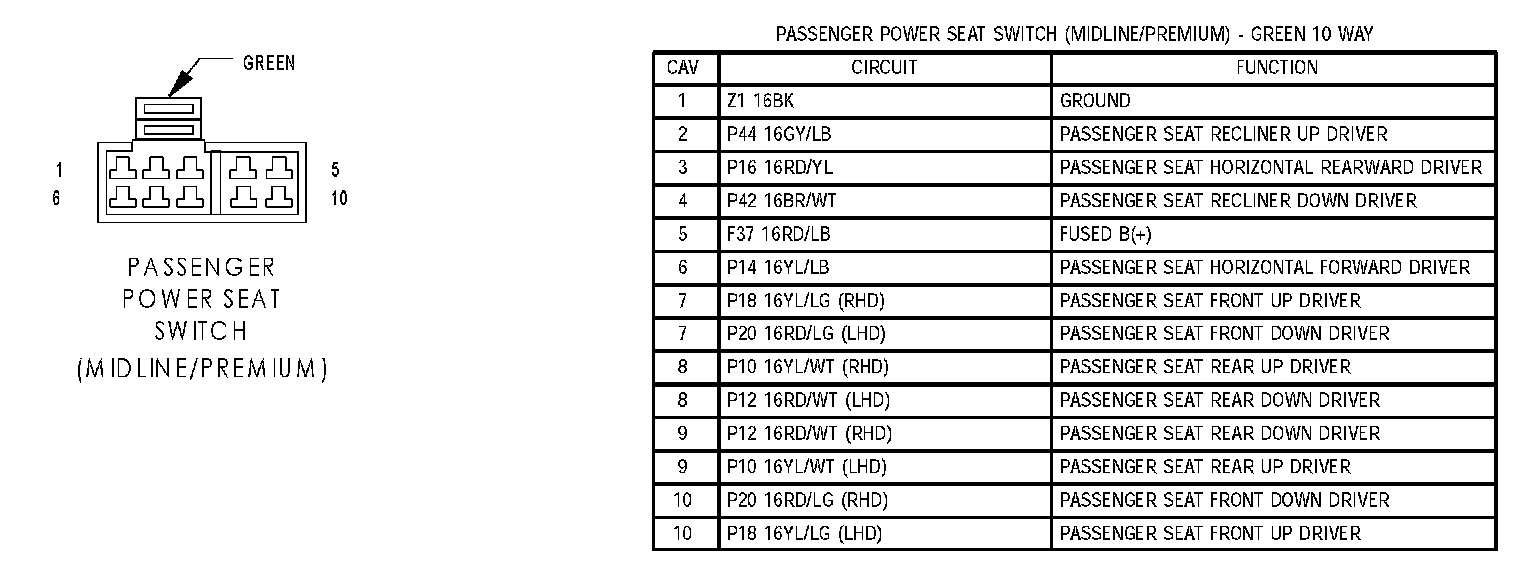

Passenger Power Seat Switch (Midline/Premium):
