Jeep
>>
2002
>>
Grand Cherokee 2WD Laredo V8-4.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
C200
C200

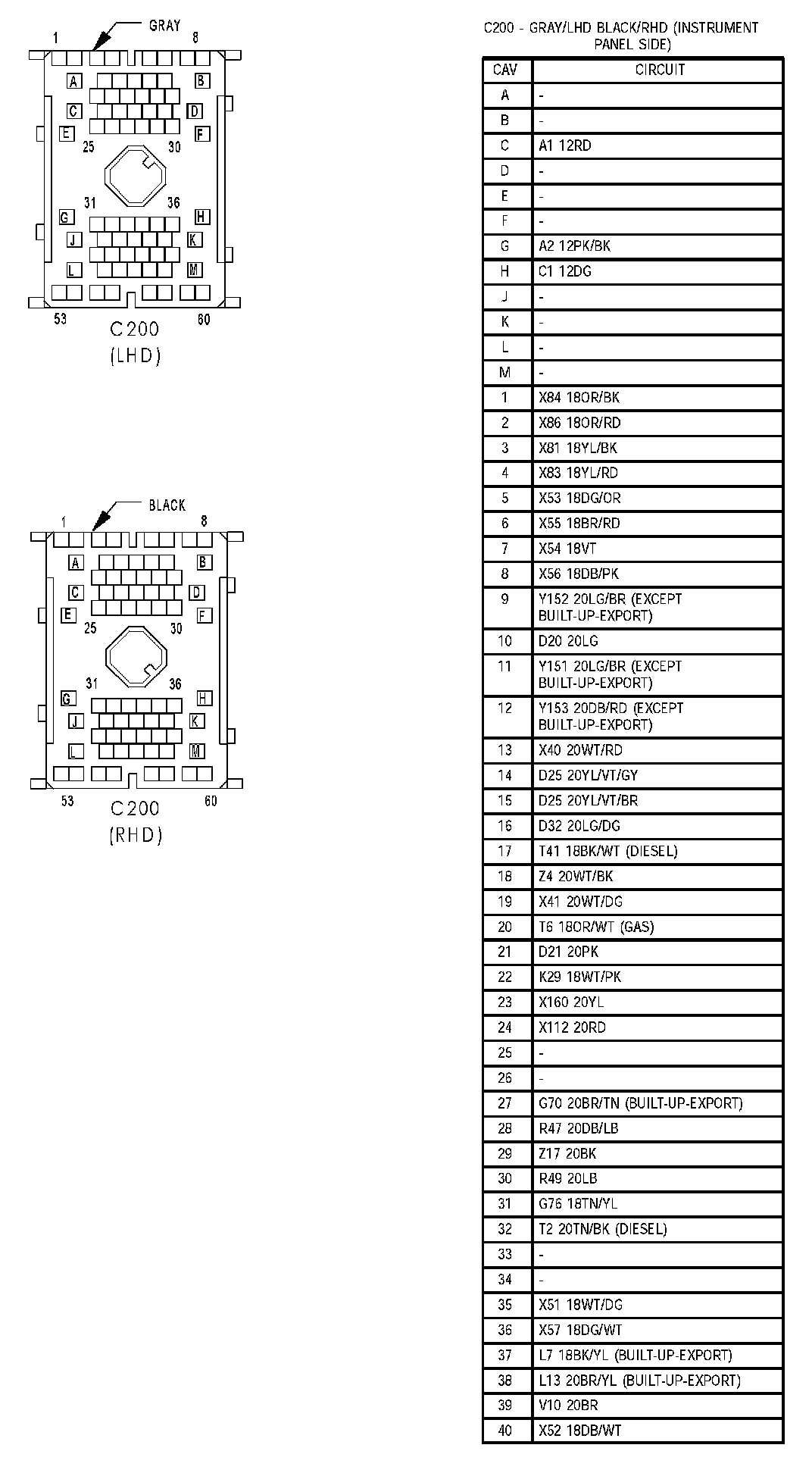

C200 (LHD), C200 (RHD) (Part 1 Of 2):

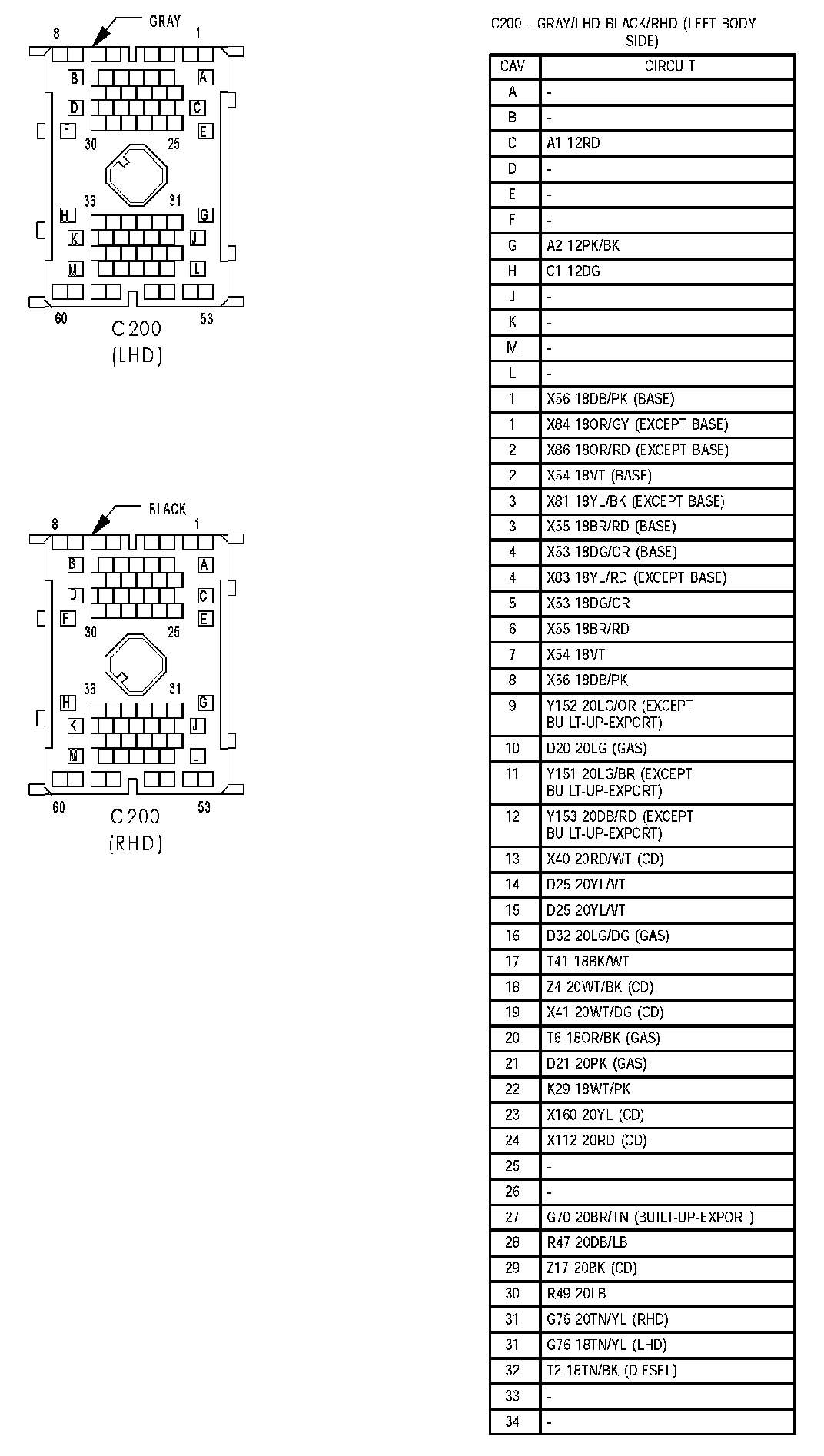

C200 (LHD), C200 (RHD) (Part 2 Of 2):
C200 (LHD), C200 (RHD) (Part 1 Of 2):
C200 (LHD), C200 (RHD) (Part 2 Of 2):
