C107
C107

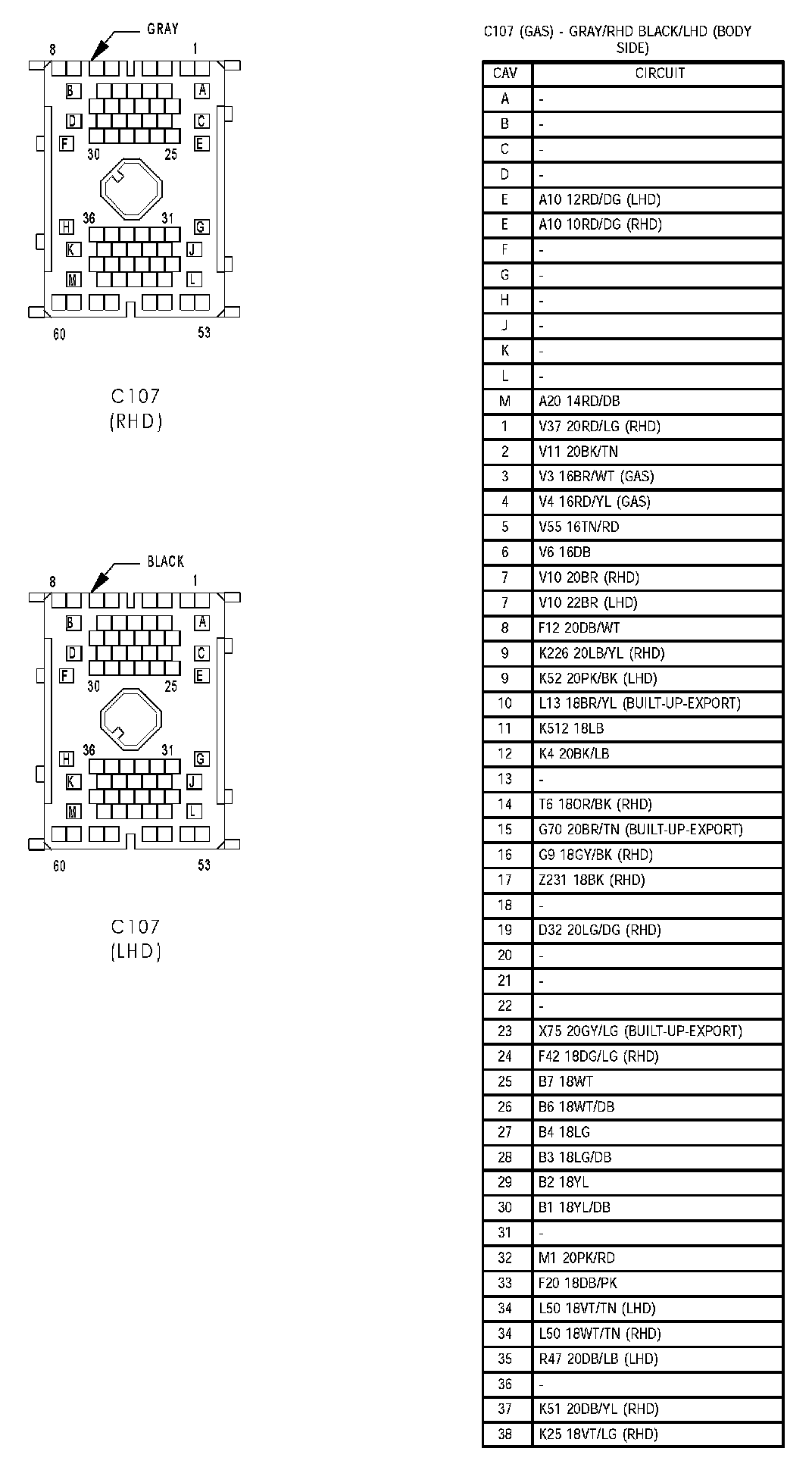

C107 (RHD) (Gas), C107 (LHD) (Gas) (Part 1 Of 2):
C107 (RHD) (Gas), C107 (LHD) (Gas) (Part 2 Of 2):
C107 (RHD), C107 (LHD) (Part 1 Of 2):
C107 (RHD), C107 (LHD) (Part 2 Of 2):
