LEMON Manuals
: Even more car manuals for everyone
Home
>>
Jeep
>>
2002
>>
Grand Cherokee 2WD Laredo V8-4.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Complete Body and Chassis Connector Views
>>

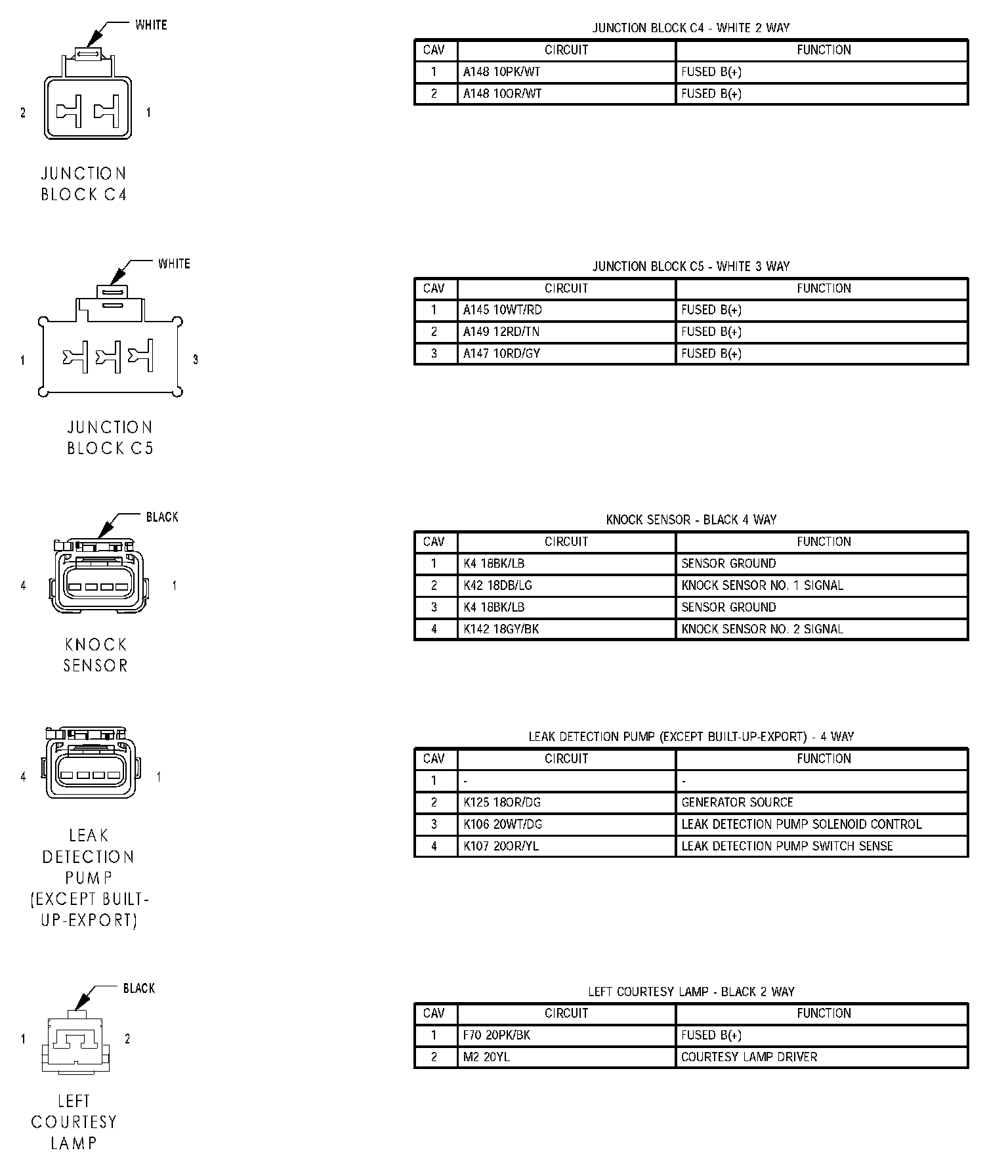

Sheet 8W-80-91
Sheet 8W-80-91
8w-80-91:
