Home >> Jeep >> 2002 >> Grand Cherokee 2WD Laredo V8-4.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> System Diagram

System Diagram

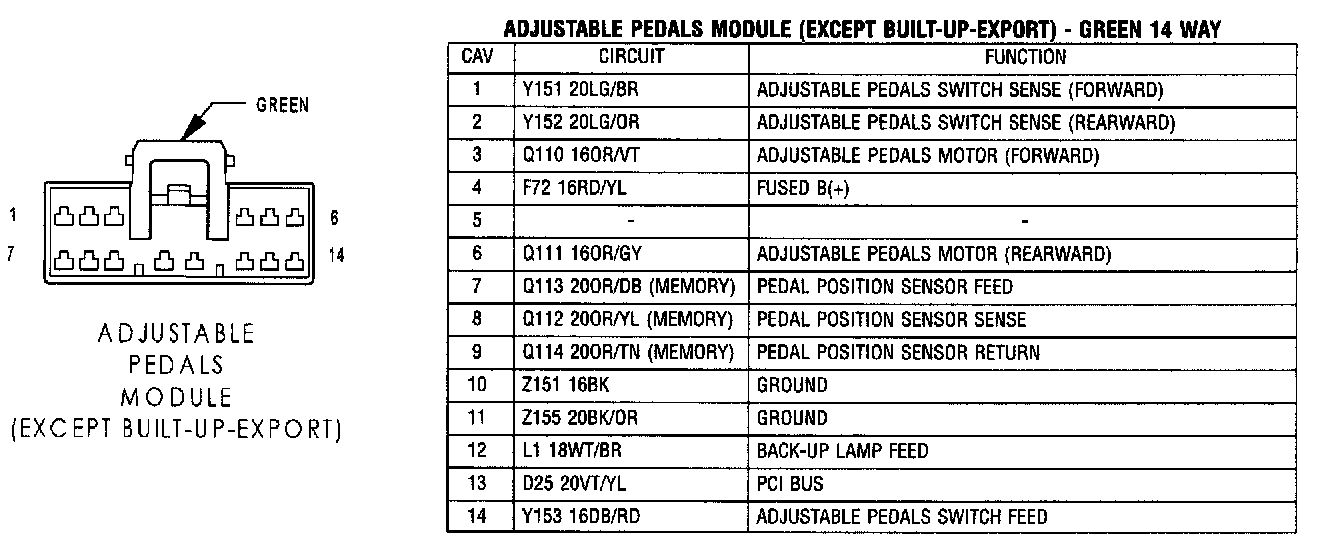

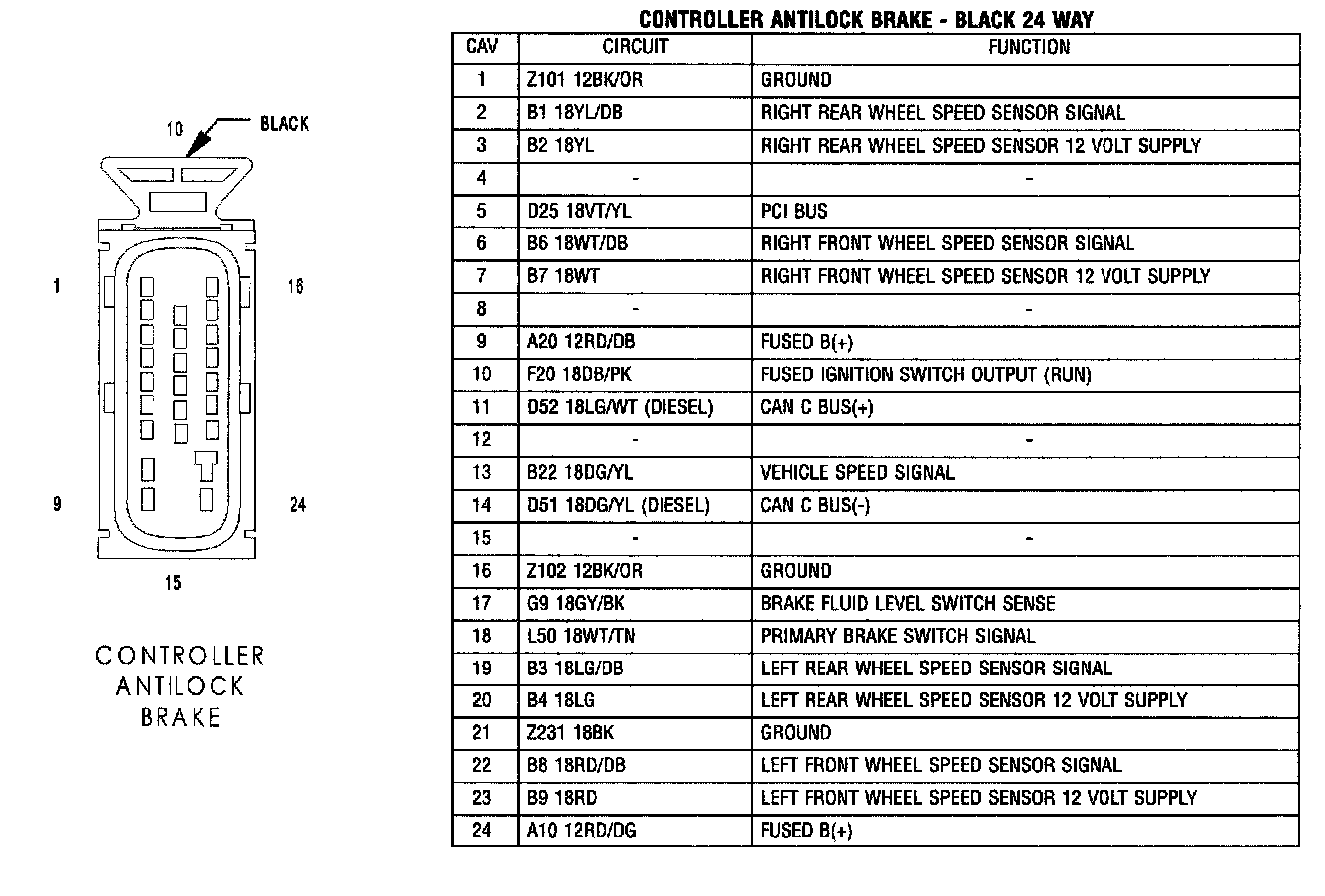

Connector Pinouts





Part 1 of 7





Part 2 of 7





Part 3 of 7





Part 4 of 7





Part 5 of 7





Part 6 of 7





Part 7 of 7
