Rear

REMOVAL - REAR DISC BRAKE CALIPER
1. Raise and support vehicle.
2. Remove rear wheel and tire assembly.
3. Drain small amount of fluid from master cylinder brake reservoir with a clean suction gun.

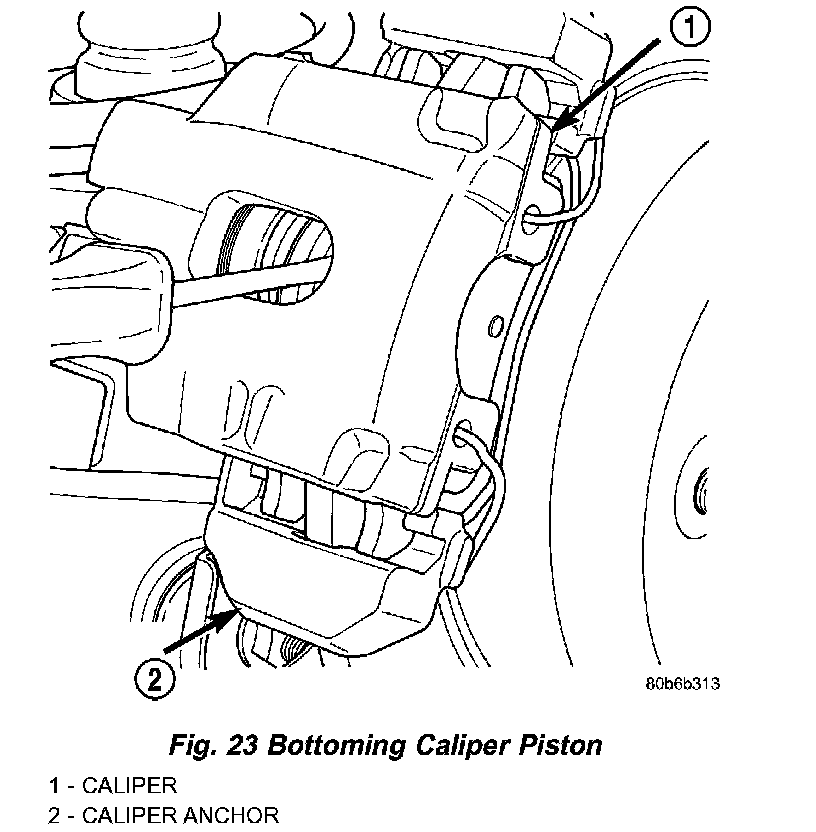

4. Bottom caliper pistons into the caliper by prying the caliper over.
5. Remove brake hose banjo bolt and discard gasket washers.

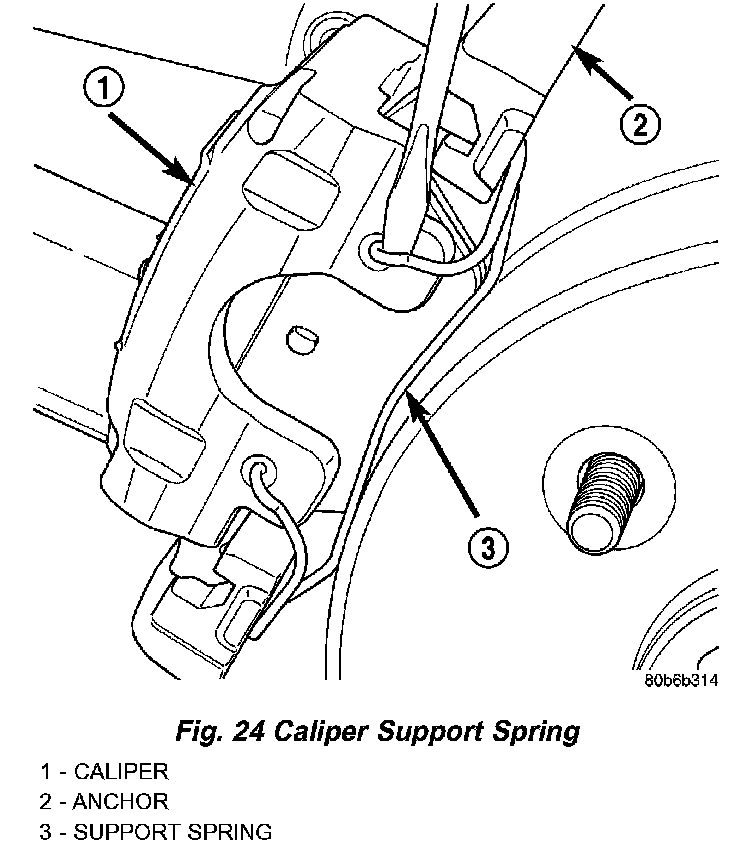

6. Remove the caliper support spring by prying the spring out of the caliper.

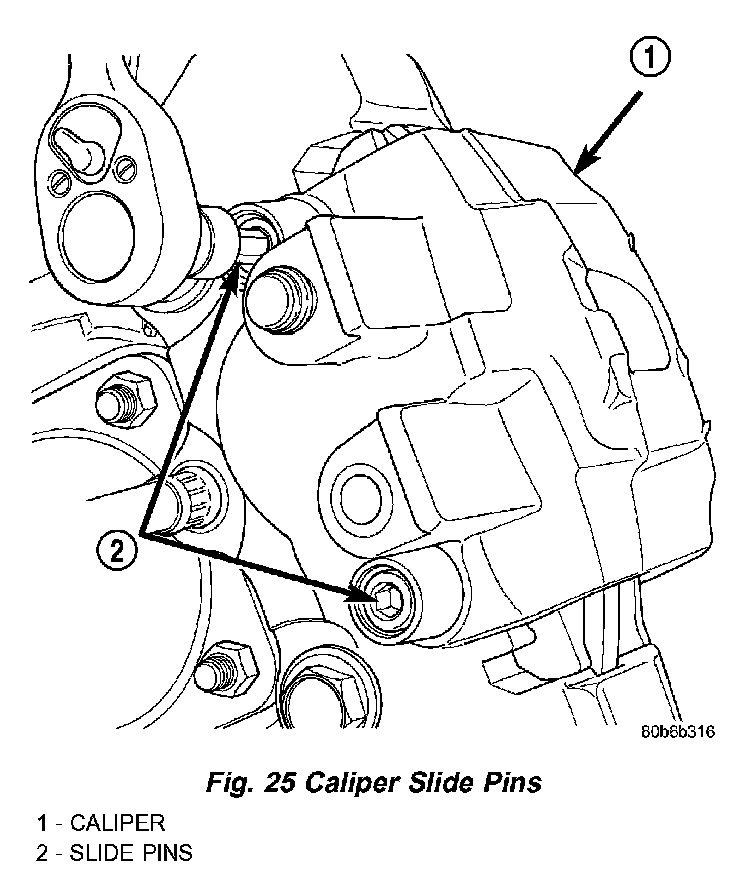

7. Remove the caliper slide pin bushing caps and remove the slide pins.
8. Remove caliper from the anchor.

Inboard Brake Shoe:

9. Remove the inboard brake shoe.
