Rear

REMOVAL - REAR DISC BRAKE SHOES
1. Raise and support vehicle.
2. Remove rear wheel and tire assembly.
3. Drain small amount of fluid from master cylinder brake reservoir with a clean suction gun.





4. Bottom caliper pistons into the caliper by prying the caliper over.

Caliper Support Spring:

5. Remove the caliper support spring by prying the spring out of the caliper.

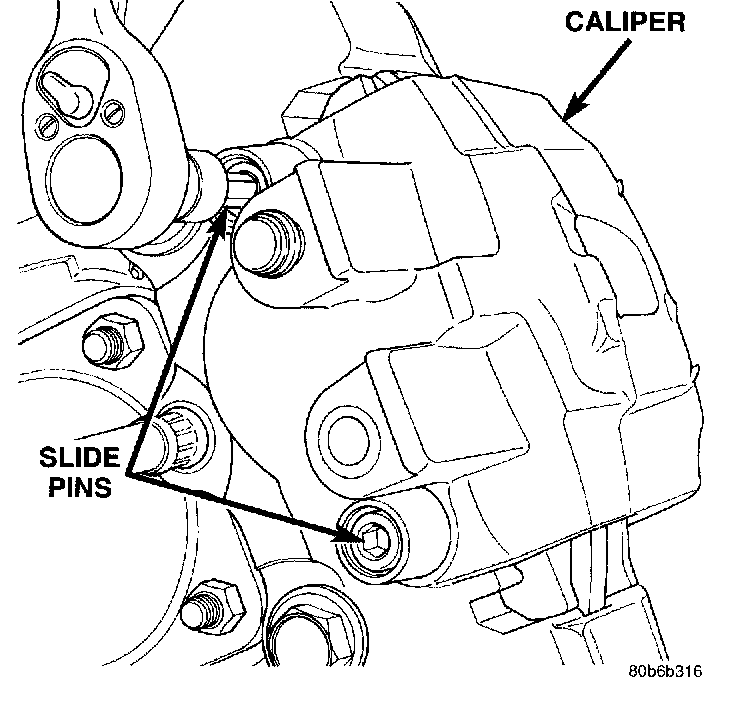

Caliper Slide Pins:

6. Remove the caliper slide pin bushing caps and remove the slide pins.
7. Remove caliper from the anchor.
8. Secure caliper to nearby suspension part with wire. Do not allow brake hose to support caliper weight.

Inboard Brake Shoe:

9. Remove the inboard brake shoe from the caliper.

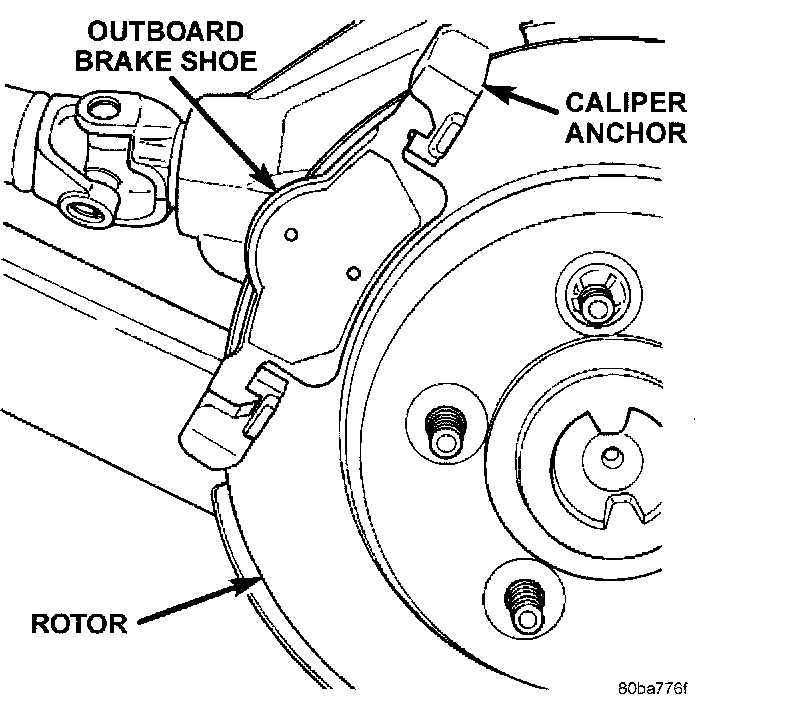

Outboard Brake Shoe:

10. Remove outboard brake shoe from the caliper anchor.
