Side View Mirror

SIDE VIEW MIRROR

REMOVAL
1. Remove door trim panel.
2. Disengage power mirror harness connector, if equipped.
3. Remove mirror flag seal.

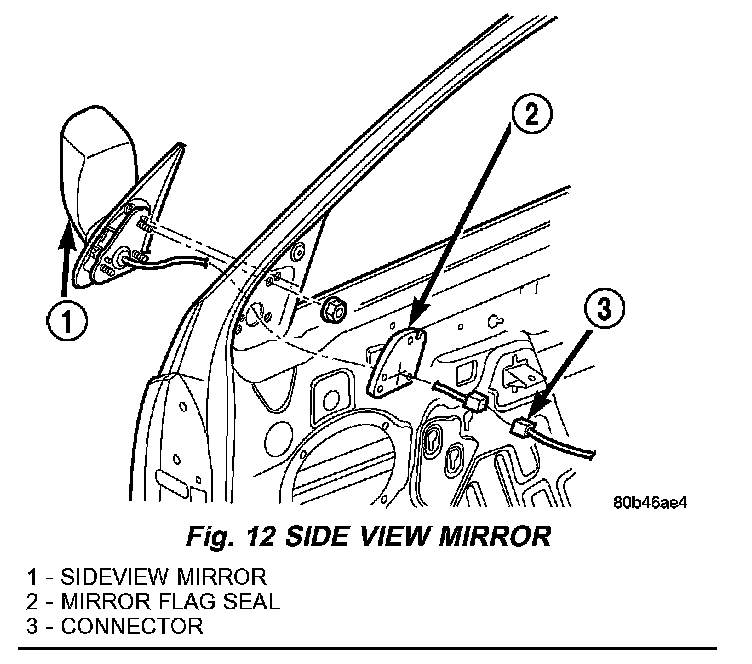

Fig. 12:

4. Remove nuts attaching mirror to door (Fig. 12).
5. Separate mirror from door.

INSTALLATION
1. Position mirror on door. Verify that gasket seal is properly positioned.

Fig. 12:

2. Install nuts attaching mirror to door (Fig. 12).
3. Install mirror retaining nuts and tighten to 7 N.m (60 in. lbs.).
4. Install mirror flag seal.
5. Engage power mirror harness connector, if equipped.
6. Install door trim panel.
