Quarter Panel Trim

QUARTER TRIM PANEL

REMOVAL

1. Move rear seat to cargo position.
2. If equipped, remove sunshade cover.
3. Open liftgate.
4. Remove upper and lower liftgate opening trim panels.
5. Remove d-pillar upper trim.
6. Remove storage bin (right side only).

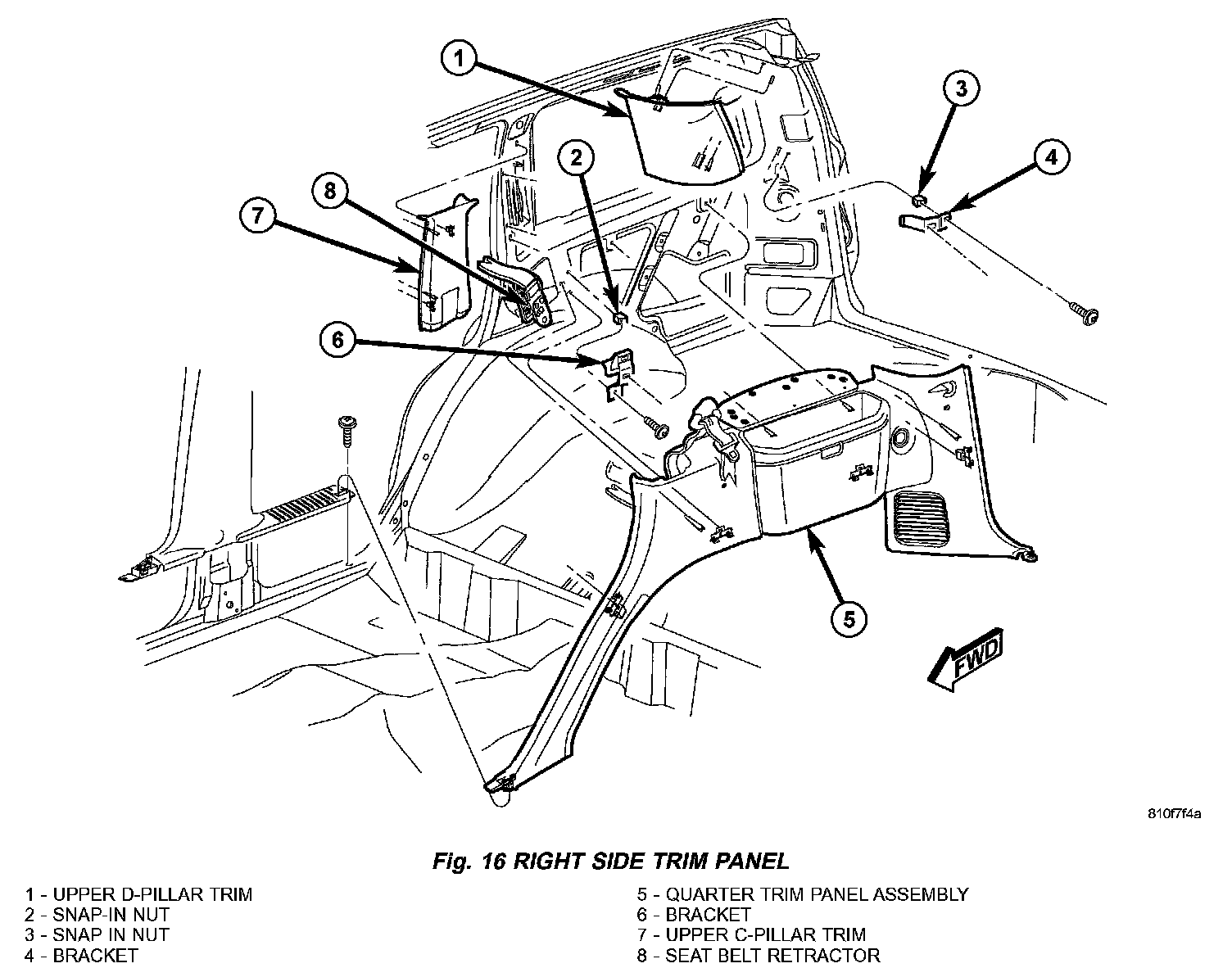

Fig. 16:

7. Remove mounting screws. (Fig. 16)
8. Pull quarter trim panel forward and disengage connectors for CD player and power outlet, if equipped.
9. Pull quarter trim panel extension in the rear door opening upward.
10. Remove rear quarter trim panel.

INSTALLATION

1. Position quarter trim panel, engage connectors for CD player and power outlet, if equipped, and align screw holes.
2. Install quarter trim panel.
3. Install storage bin.
4. Install d-pillar upper trim panel.
5. Install upper and lower liftgate opening trim panels.
6. If equipped, install sunshade cover.
7. Install cargo loops.
8. Move the rear seat to the upright position.
