Liftgate Scuff Plate

LIFTGATE SCUFF PLATE

REMOVAL

1. Remove screws at outboard end of lower lift-gate trim panel.

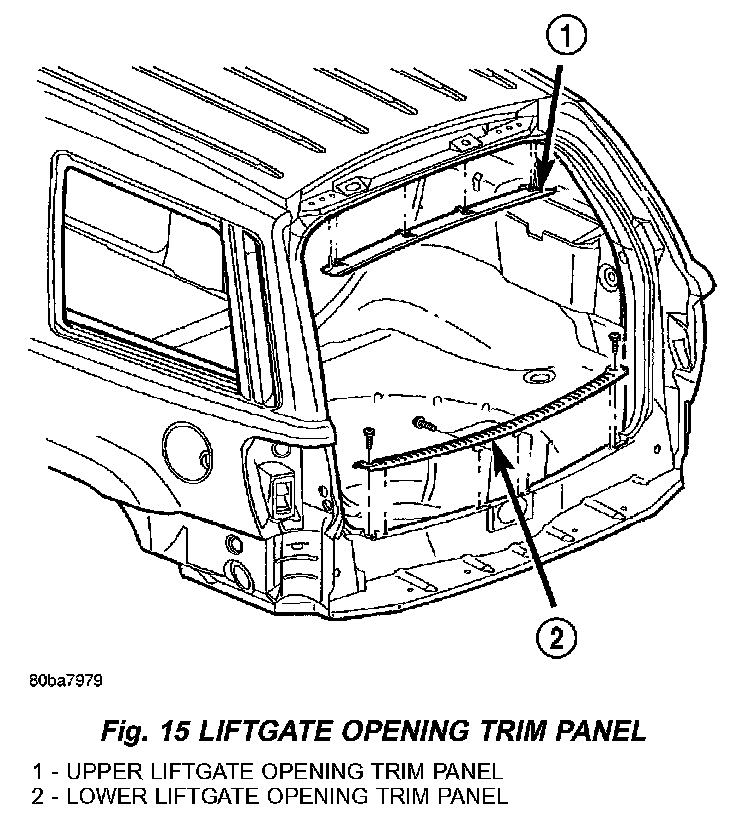

Fig. 15:

2. Open the spare tire cover and remove the screws near the center of the lower liftgate trim panel (Fig. 15).
3. Remove the lower liftgate trim panel.

INSTALLATION
1. Align the screw holes and locators to the holes in the liftgate opening.
2. Install the screws in the liftgate opening trim panel.
3. Install the spare tire cover.
