Rear Door Limiter: Service and Repair

CHECK STRAP

REMOVAL
1. Remove waterdam.
2. Remove screws attaching door check to b-pillar.

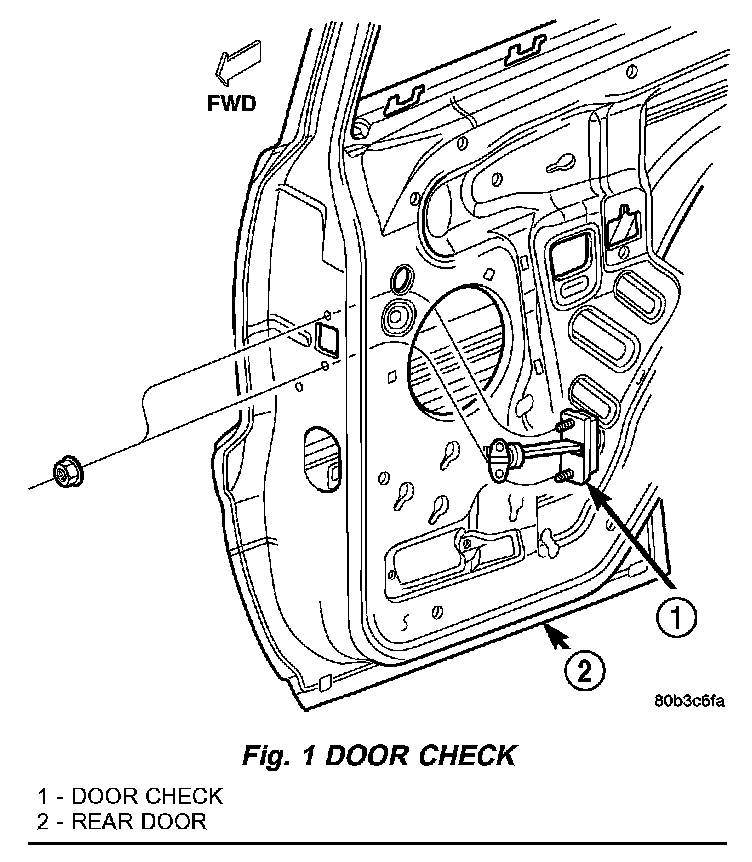

Fig. 1:

3. Remove nuts attaching door check to door (Fig. 1).
4. Remove door check through speaker location hole.

INSTALLATION
1. Position door check on door through speaker location hole.
2. Install nuts attaching door check to door and tighten to 11 N.m (8 ft. lbs.). (Fig. 1)
3. Install screws attaching door check to b-pillar and tighten to 15 N.m (11 ft. lbs.).
4. Install waterdam.
