Pedal Sensor Shorted to Ground

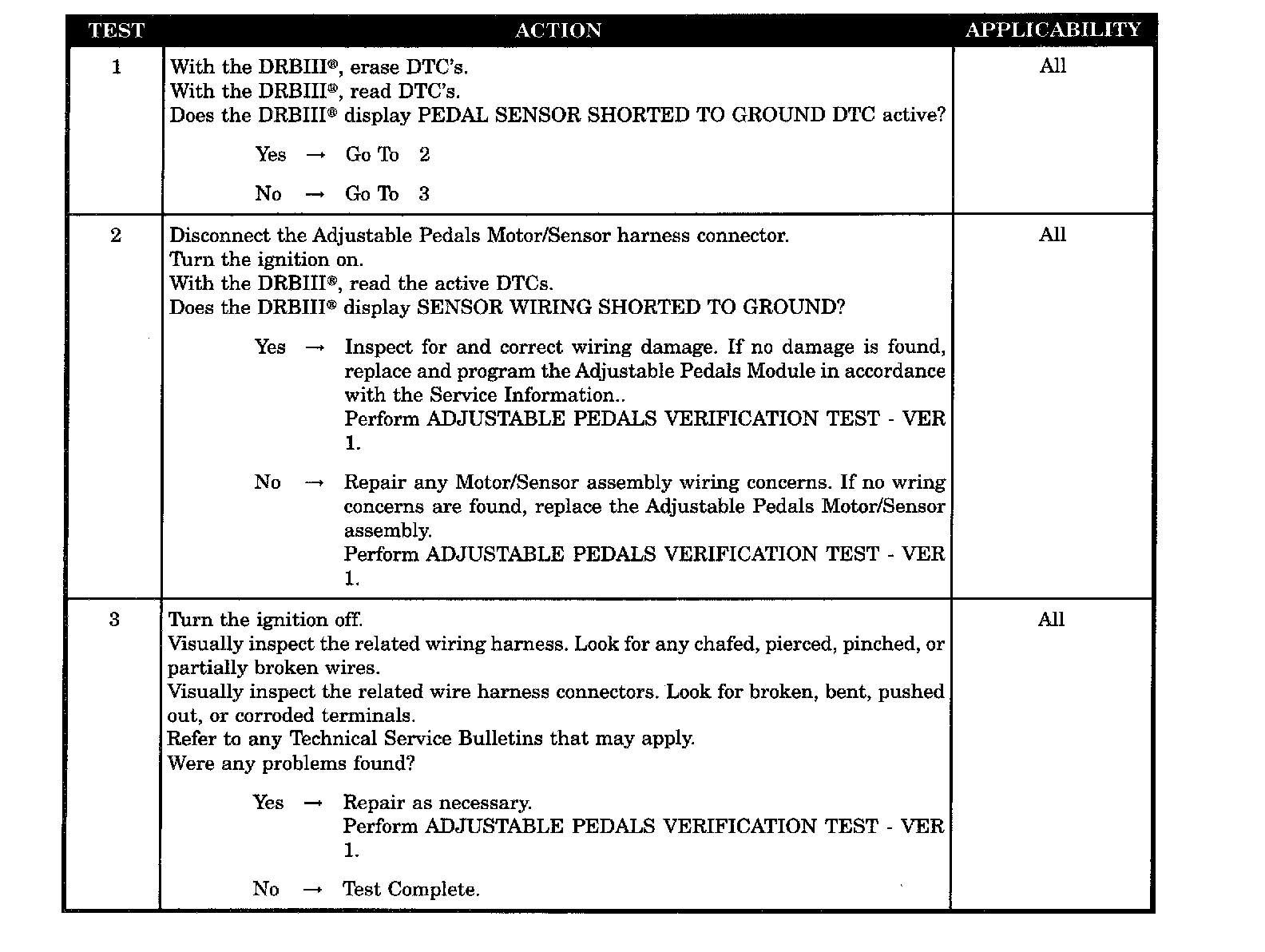

Test 1 - 3

SYMPTOM
PEDAL SENSOR SHORTED TO GROUND

WHEN MONITORED
Constantly

SET CONDITION
When the APM detects a ground condition at the Sense circuit.

POSSIBLE CAUSES
- Motor/sensor assembly shorted to ground
- APM-sense circuit grounded
- Intermittent DTC
