Pedal Sensor Open/Shorted to Battery

���D:

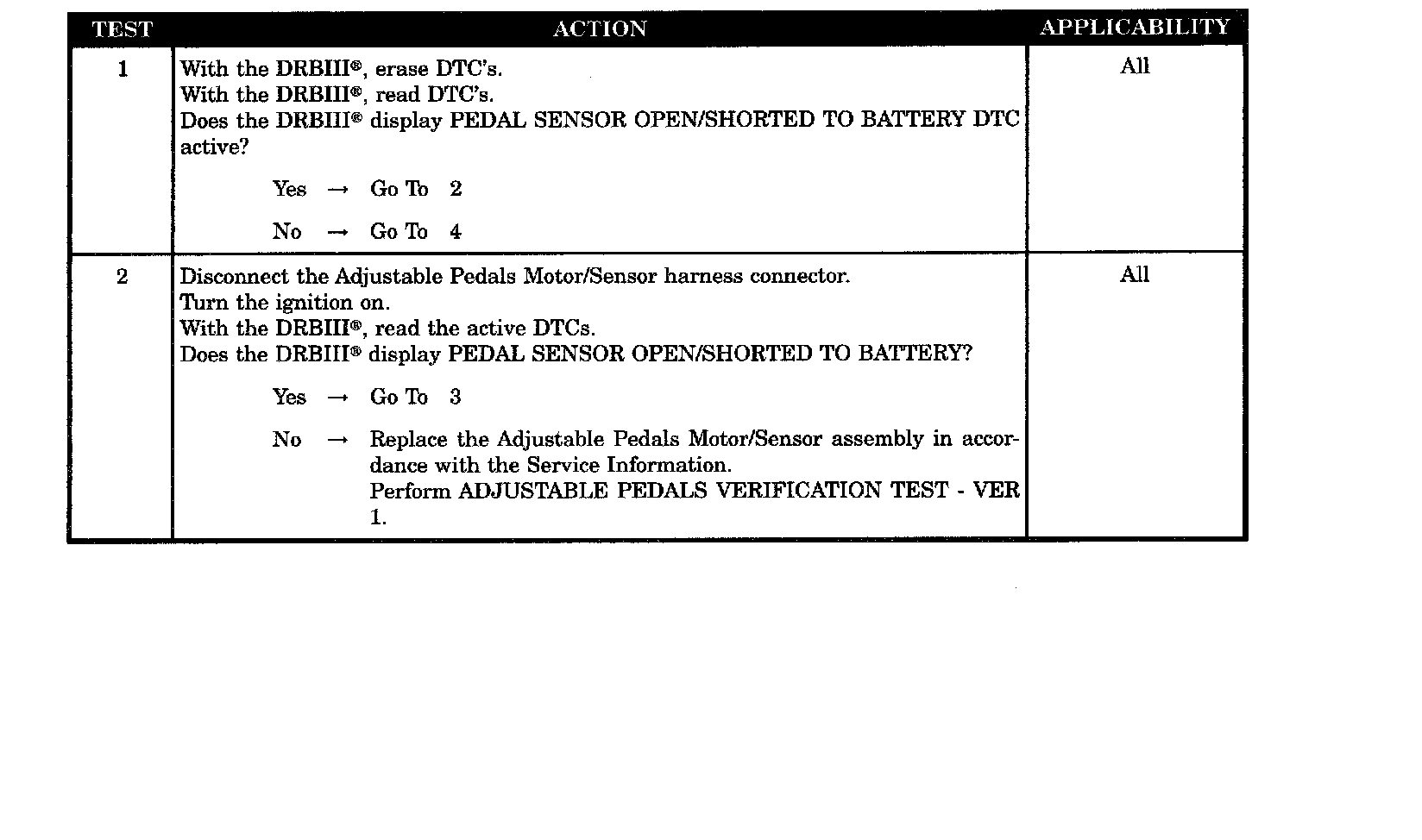

Test 1 - 2

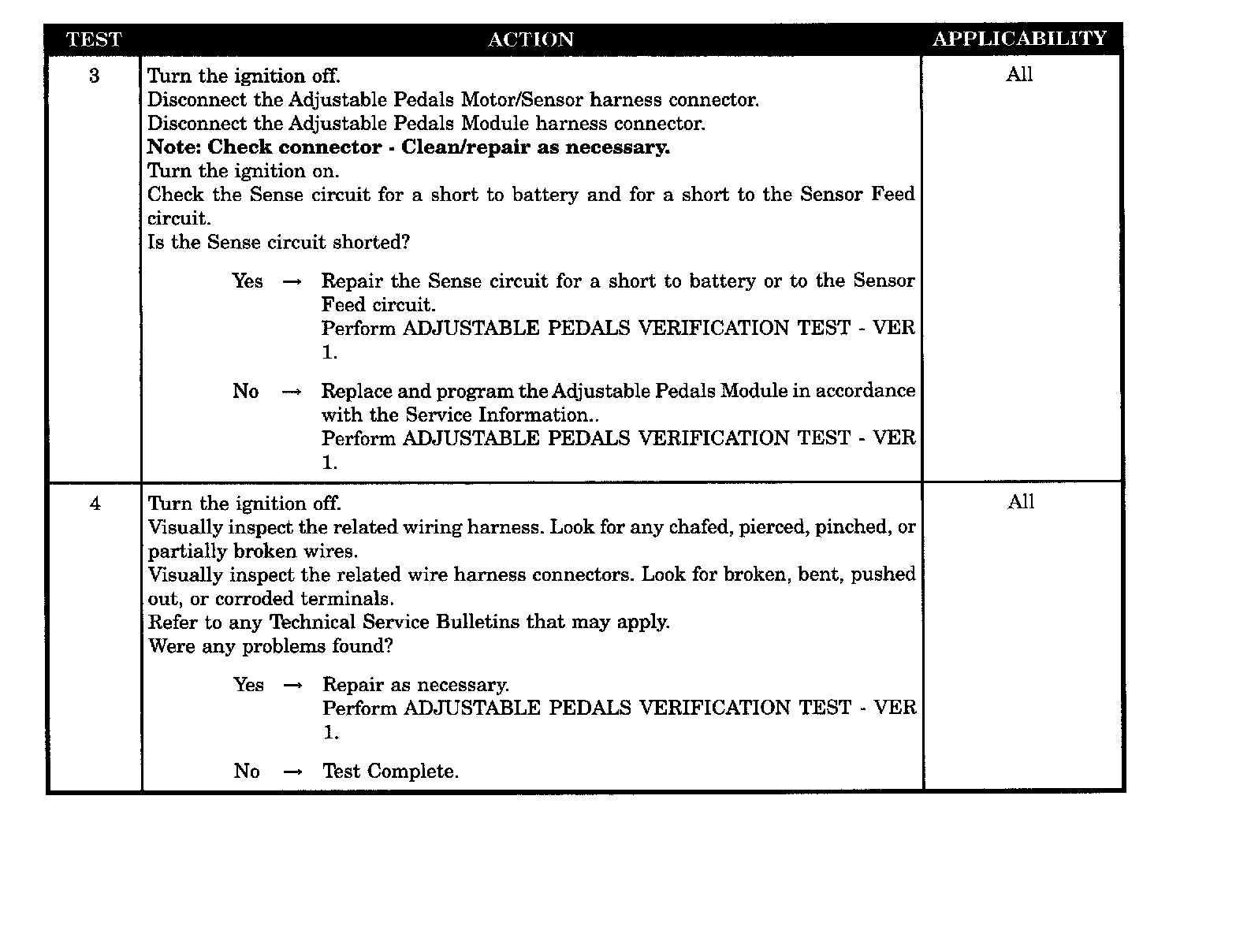

Test 3 - 4

SYMPTOM
PEDAL SENSOR OPEN/SHORTED TO BATTERY

WHEN MONITORED
Constantly.

SET CONDITION
When the APM detects the voltage on the Sense circuit is too high.

POSSIBLE CAUSES
- Motor/Sensor shorted or open
- Sense circuit shorted to battery or to sensor feed circuit
- APM-internal fault
- Intermittent DTC
